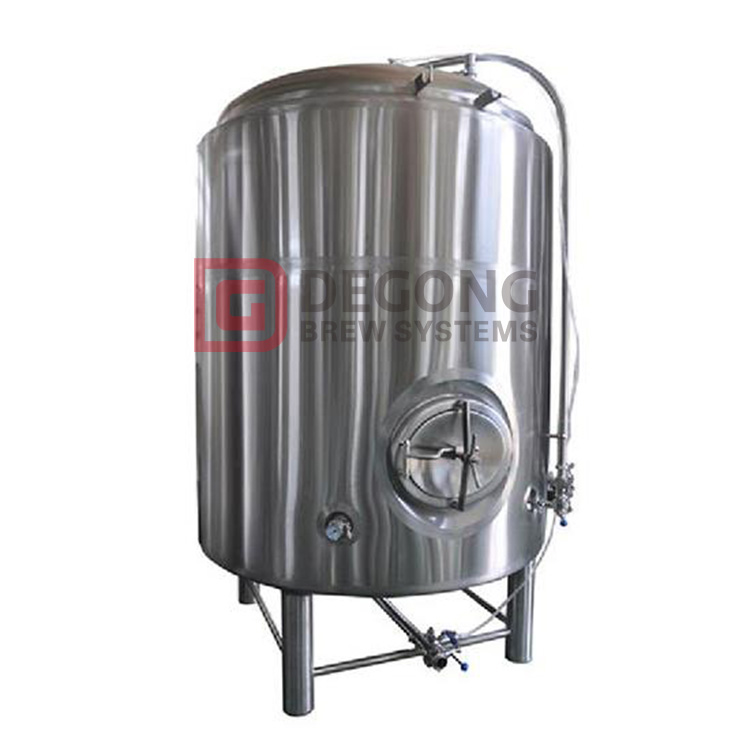

1000L Stainless Steel Bright Beer Tank From DEGONG

After beer fermented and mature, then need to filter and wipe off the mixed and yeast from the fermentation liquid, make beer clarify and shine. At last, the fermentation liquid finished filtering is bright beer. This is also the last step of the brewing process, then beer bottling.
Availability:
Quantity:
  • DEGONG-1000L
  • DEGONG
Product Description

1000L Bright Beer Tank


Bright Beer Tank is a pressure-rated temperature-controlled tank at the bottom of the tray, which is used to hold beer for packaging. The term "bright" refers to "bright beer", that is, beer that has become bright (clear) by filtration, centrifugation, clarification, and/or maturation. In most breweries, the beer is filtered after leaving a single tank or larger container and then directed into a bright tank. Bright cans are sometimes used as mixing cans for beer to be bottled. In a beer bar, the bright water tank is usually also a serving water tank; beer can flow directly from this tank to the faucet in the bar.

26

Specifications of 1000L Brite Tank


Bright Beer Tank
Structure Dish top
Usage it is used for storage beer
Material 1.all Stainless steel 304/316
2.jacket: dimple jacket
3.insulation layer: PU
4.as to the thickness, we can make it according to your requirement.
Accessory

Pressure relief valve(30psi)

Shadowless manway

CIP pipelines

1” butterfly valve for CIP pipeline

butterfly valve for drain with elbow

Thermometer

Thermowell

Sample valve

Pressure gauge


1 extra 2” spare hole for CO2 stone on side of tank body for option

3/4 adjustable solid legs

Our advantage 1.we can supply various kinds of volume, minimum 2BBL~maximun 200BBL and even larger.
2.PU insulation is adopted, jacket will be dimple jacket
3.interior surface is Mirror polishing and exterior is 2B finish/brush polishing
4.we also can equip you with a cooling system as your requirement.
5.competitive price and also higher quality tank.

Suitable for small breweries as a startup company, but also very suitable for large restaurants.

It can also be used for seasonal breweries and market testing.

The whole adopts certified SUS304. Every detail has been strictly processed and controlled.


Working Volume (L) Dimension of Tank (D*H) mm Total Height (H) mm Diameter of Inlet&Outlet (mm) Diameter of Inlet&Outlet (mm) Diameter of Inlet&Outlet (mm)
500 800*800 1750 38 50 440*320
1000 1000*1200 2200 38 50 440*320
1500 1100*1400 2500 38 50 550*430
2000 1200*1500 2700 38 50 550*430
3000 1400*1700 3150 51 50 550*430
4000 1500*2100 3450 51 50 550*430
5000 1600*2200 3590 51 50 550*430
6000 1700*2200 3650 51 50 550*430
8000 1800*2700 4350 51 50 550*430
10000 2000*2800 4450 51 50 550*430

292728

Manufacture of 1000L Brite storage tank

  • Welding: We abandon the argon cylinder, but use an argon center system to ensure pure argon protection for TIG welding. We have also increased the amount of gas used during welding,So the quality of the welding wire is higher.

  • Dimples: The ethylene glycol jacket uses dimple plates instead of belts, which can increase the cooling area and increase the cooling speed. The most important thing in the brewing process is to avoid pollution, that is to say, the most important thing for beer production equipment is to polish the inner tank to 0.4~0.6μm without dead ends.

  • Polishing: We use large-scale polishing equipment to polish the inside of the tank-all over the wall. Make sure there are no dead ends. And we have adopted passivation and pickling, which will make our tanks have higher precision. Don't worry about some bacteria remaining after washing.


Contact us

We can customize product specifications according to your requirements. If you have any needs or questions, please contact us.
