Availability: | |
---|---|
Quantity: | |
DG-1000L
DEGONG
1000L Agriculture Mobile Tanks

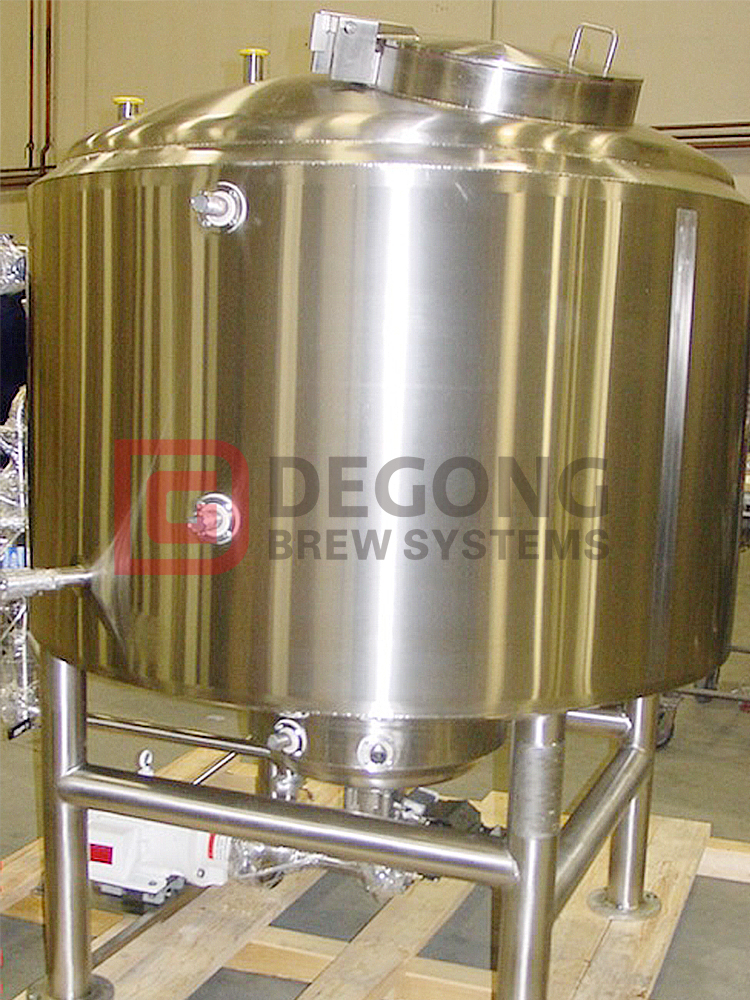

Vertical reservoir for any application. Thanks to DEGONG's advanced technical design process, our vertical storage tanks are precisely designed to meet the challenges of any dairy, food or beverage application with extreme efficiency. Starting with your specifications, we use industry-first modeling to test features and components before building your tank, enabling greater product optimization.
Structure Characteristics |
Made of single-layer stainless steel structure.
Materials are all sanitary stainless steel.
Humanized structure design and easy to operate.
Transition area of interior wall on tank adopts arc for transition to ensure no dead corner of sanitation.
We can supply the tank with range from 100L to 20,000L or even larger.
Manhole open or half lid open design for option according to different product process request.
Just as our tanks are ideal for all stages of the brewing process, they are also perfectly suitable for other food-based industries. We have supplied food safe containers to the following product manufacturers:
Spirits
Soft drink
Apple juice
Cider
Wine
Edible oil
Dairy products
...and there may be more we don't know
Specification |
Capacity | Dimensions Diameter x Height | Upper Tap Height | Lower Tap Height | Overall Height |
200L | 600x800 | 490 | 300 | 1230 |
300L | 670x960 | 490 | 300 | 1385 |
400L | 730x1060 | 490 | 300 | 1490 |
500L | 770x1200 | 490 | 300 | 1620 |
1000L | 960x1500 | 490 | 300 | 1930 |
2000L | 1330x1500 | 490 | 300 | 1930 |
Options |
Available in single shell, insulated or jacketed
Available in dished, flat-bottomed or cone-bottomed designs
Supports on legs or side mounted lugs
Optional heat transfer jacket for side walls and/or bottom of vessel
Configurable for side or top entry
Made of 304 or 316L stainless steel or custom materials
Atmospheric or pressure design options
Mixing component options to meet specific application requirements
Contact us |
The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
