1000L Food Grade Open Tank Food Storage Tanks Stainless Steel Horizontal Storage Tank

When the height of internal storage space is limited, DEGONG's horizontal tanks may be the best fit for your operation. We apply the same quality and efficiency standards to the horizontal tanks as the vertical varieties.
Availability:
Quantity:
  • DG-1000L
  • DEGONG
Product Description

1000L Food Storage Tanks


Features
  • Durable Type 304 stainless steel lined, polished to a No. 4(3-A) finish for hygienic and easy cleaning

  • Painted carbon steel outer jacket

  • Removable 2" stainless steel inlet with special "no foam" design

  • Removable 3" perforated vent protects tank structure from vacuum

  • 16"x20" Insulated Stainless Steel Manway Door with Sampling Valve

  • Ladder with platform for access to entrances and vents

  • Adjustable carbon steel legs with hidden threads

  • Horizontal mechanical stirring system

  • 3" Clamp Outlet Ferrule

  • Dial Thermometer with Hole

  • 2" rigid insulation

  • hanging lugs

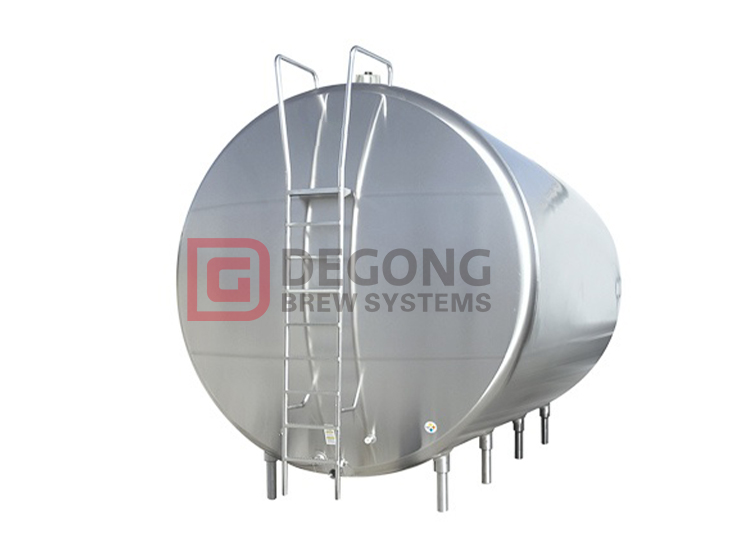

78


Name Food Grade Horizontal Storage Tank
Material SS304, SS316
Volume 50-20000L
Suit Food, Chemical, Beverage


There are different kinds of mixers
  • Bottom magnetic stirrer with propeller impeller, speed from 50-400rpm or 50-800rpm. This agitator is used to mix dilute viscosities such as eye drops, injections, CIP solution, water, etc.

  • Top mechanical agitator with propeller impeller, fixed speed 71rpm or adjustable 20-200rpm or special requirements. Such agitators are used to mix syrups, injections, blood, oral liquids, culture media, and the like.

  • Top mechanical agitator with anchor or frame impeller at 10-70rpm. It is mixed with higher viscosity, such as sediment or viscous oral liquid.

  • Top emulsification homogenizer, the maximum speed of small container is 2900rpm, and the maximum speed of large tank is 1480rpm. This type of mixer is for mixing most high viscosity, such as suspensions, oils, fat emulsions, etc.

  • Bottom emulsification homogenizer, the maximum speed is 2900rpm for small containers and 1480rpm for large tanks. This type of mixer is for mixing most high viscosity, such as suspensions, oils, fat emulsions, etc.

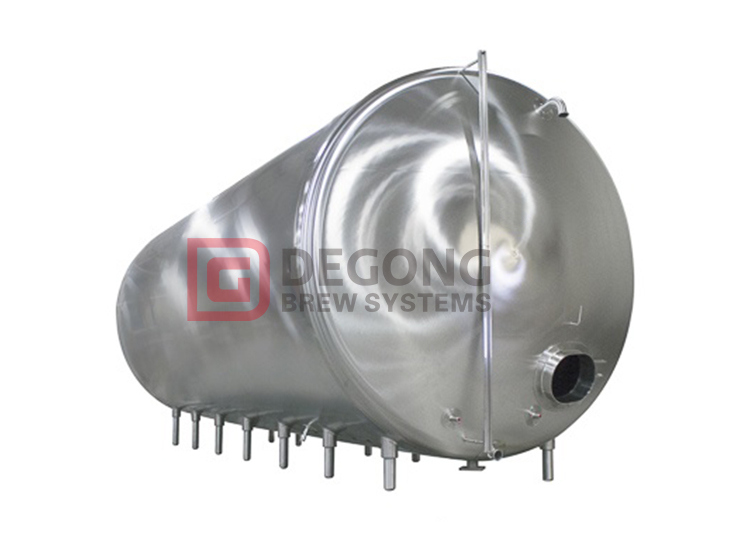

79


Applicable range

Sanitary Storage Tank Used as liquid storage tank, liquid composing tank, temporary storage tank and water storage tank etc.

Ideal in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.


Contact us

The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
