DG-1000L
DEGONG
| Main Systems of The 1000L Microbrewery |
| Name of system | Specification scope of the system |
|---|---|
Brewhouse System | With capacity 1000L/batch |
Fermentation System | 8 fermentation tanks with volume 1000L |
Cooling System | 1-2 pieces of refrigeration machine |
Cleaning System | Stainless steel trolley with one or two tanks |
Control system | Semi-automatic control with digital meters or full-automatic control with PLC |
Equipment parts | Full set of supporting parts |
DEGONG 1000L FERMENTATION SYSTEM
| Specification |
Interior & Exterior Shell food-grade 304/316 stainless steel construction
25% oversized headspace for fermentation on top
20% oversized headspace for bright tanks on top
Double-wall with dimpled cooling jacket on shell and cone
Dish bottom or 160-degree cone bottom for bright tank
100% TIG Welding with pure argon gas shield
Interior Finish: Sanitary 2B finish, Pickled and Passivated
Interior fully polished to a consistent ≤0.4μm
Insulated with high density polyurethane foam
CIP arm with 360° coverage spraying ball
Rotating racking arm on cone with butterfly valve
PT100 temperature thermowell with sensor
Full sanitary tri-clamped sampling valve
Top or side manhole
Pressure relief valve with pressure gauge
Heavy-duty legs with adjustable bolts
Separate blow-off pipe & CIP optional
Liquid level display on the side wall optional
Carbonation stone for CO2 optional

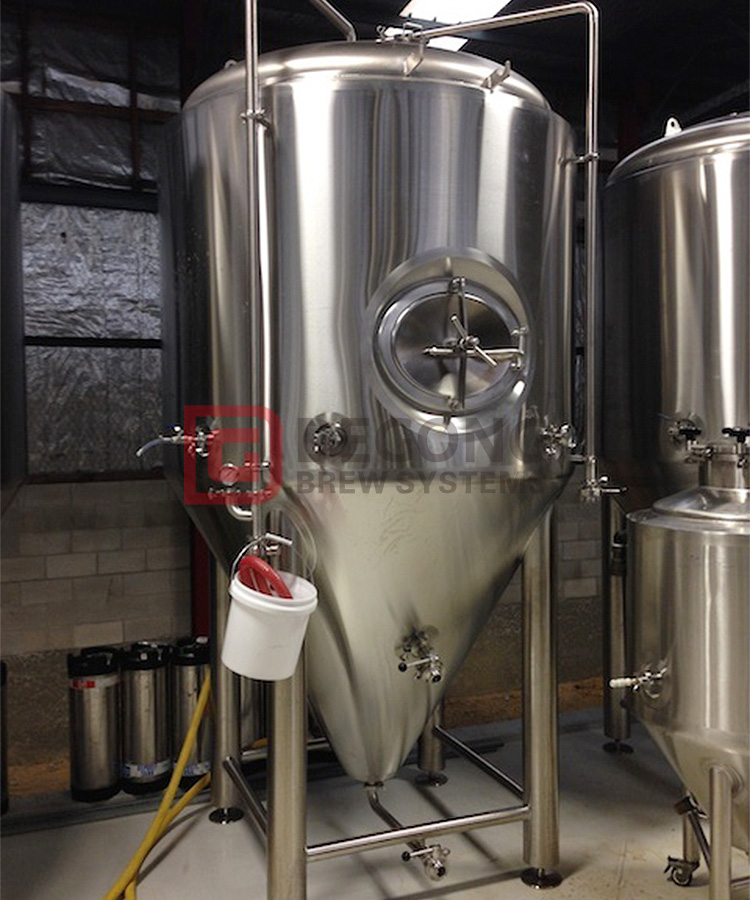

DEGONG FERMENTATION TANKS
| Technical Advantages |
The fermentation tank is equipped with lifting ears for convenience for hoisting equipment in place.
Jacket testing 12 hours with air and water, jacket testing pressure is 5Bar, internal shell testing pressure is 4Bar, and 48hours of water testing before packing.
Polished/Brushed/Mirror finish/Pickling passivation is optional.
Side manway or top manhole according to the customer’s fermentation process and brewing types.
For bigger headspace, the cover headspace volume is calculated separately and extra.
Specially designed dimpled cooling jackets outside to ensure heating and cooling efficiency.
60-degree cone angle for convenience for yeast excretion.
DEGONG 1000L MICROBREWERY
| Contact us |
The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
