1000L Copper Column Still Gin Vodka Rum Whiskey Red Copper Distilling Equipment

The equipment is versatile and you can change the orientation of the tee to determine the spirit you want. This style can make vodka, whiskey, brandy, rum and more.
Availability:
Quantity:
  • DG-1000L
  • DEGONG
Product Description

1000L Copper Column Still


Working principle

After ferment the sccharify material, called mature fermenter production with certainly alcohol content. This is according to different volatility of ingredient, then a few mixture will turn to steam and cooling down, so that to realize the separation of components. The principle use to separation of two component mixture as example: heating the material to make it part of vaporization, the volatile part will densify of steam, the difficult volatilize part also will densify of liquid, so this realized separetion of two-component to a certain extent. The greater difference of two component volatile ability, the greater is the densification. Make partial vaporization of liquid phase direct contact with part of condensate gas phase, to proceed transfer liquid phase with gas phase in each other, so the difficult volatile component of gas phase will turn to liquid phase, the easy volatile component of liquid will turn to gas phase, in the meanwhile to make partial vaporiation and partial condenser of gas phase.


383


Parrot Export

The parrot of the distiller is connected between the condenser and the collection vessel. It allows the distillate to flow through on its way to the collection vessel. The reason why the parrot socket is so convenient is because the parrot is equipped with an alcohol meter. This means you can read the alcohol percentage in real time during the distillation process. As a customer, you can request DEGONG for custom designed and shaped parrot sockets according to your specific requirements.


392

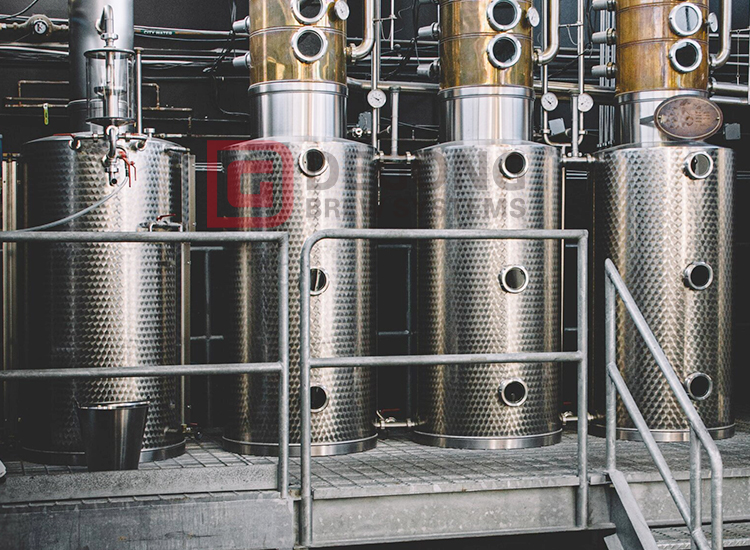

Support Frame and Storage Tank

Support frames and tanks for use with your brewing equipment can be added to your order. Standard column support provides no additional features. If you need to support more functions, you can customize the tank support, such as placing it at the bottom of the column as a CIP tank or placing it at the bottom of the condenser as an alcohol tank. We can also make two small water storage tanks inside the spirit tank, so that there are three water storage tanks in the head, heart and tail.


390

Support Frame and Storage Tank


Contact us

The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
