1000L Copper Column Still Commercial Distillery Whisky Gin Distilling Machine Alcohol Distiller

Our Column uses individual sections to allow for the greatest degree of versatility- run as few or as many sections as you need depending on what you are producing, power of heat source, etc. Includes 4 column sections and upgraded copper bubble plates in place of perforated copper plates at no additional charge The large sight glasses give you a large viewing area to see the action taking place!
Availability:
Quantity:
  • DG-1000L
  • DEGONG
Product Description

1000L commercial still


Capacity 50L~5000L
Heating method Electrical/Steam Heating
Material SUS304/SUS316/Red Copper
Brand Name DEGONG
Model Number DG-1000L
Voltage 220V/380V
Power(W) 15KW-200KW
Weight 100KG-1000KG
Dimension(L*W*H)

3800mm*1600mm*5500mm

Processing Types Alcohol
Spirits Vodka, Brandy, Whisky, Gin, ect.
Alcohol Content 60-96%
Usage Make Spirits
Application Beer Bar, Distillery
Keyword Copper Column Still


437

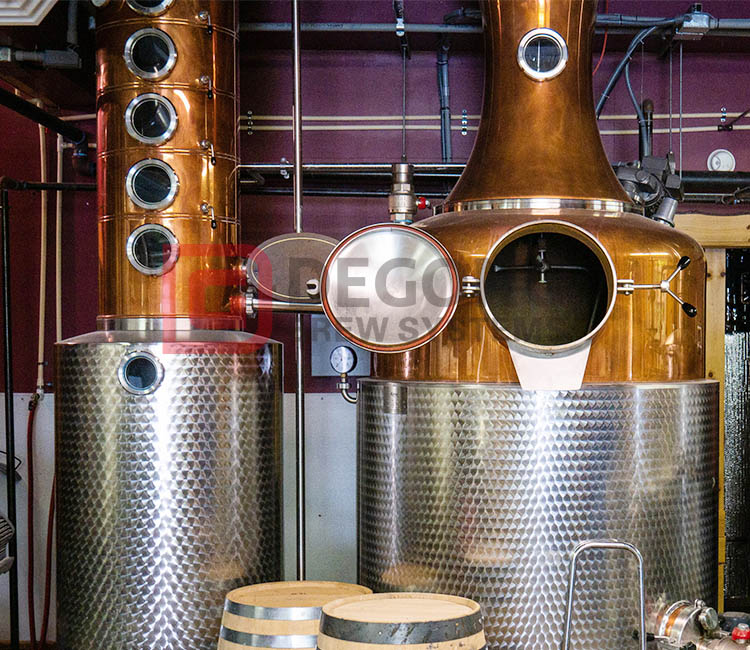

1000L Distillation Still

  • Structure: single layer diameter 1100*1000mm, vertical structure with upper and lower elliptical heads and onion heads.

  • Material and thickness: Material: 304, the thickness of the cylinder is 4mm.

  • Working pressure: normal pressure.

  • Accessories configuration: manhole, inlet, outlet, cleaning port, observation port, thermometer, pressure gauge, various functional nozzles, etc.

  • Surface treatment: welding seam grinding, inner and outer surface plate polishing treatment.


547

Still pot


Receiving Tank

  • Structure: diameter 600*1000mm.

  • Material and thickness: Material: 304, the thickness of the cylinder is 3mm.

  • Working pressure: normal pressure.

  • Accessories configuration: material import and export, CIP cleaning port, various functional nozzles, etc.

  • Surface treatment: welding seam grinding, inner and outer surface plate polishing treatment.


407


Condenser

  • Structure: diameter 300*900mm.

  • Material and thickness: Material: 304, the thickness of the cylinder is 3mm.

  • Working pressure: normal pressure, cooling area 0.75 square.

  • Accessories configuration: material import and export, ice water import and export, various functional nozzles, etc.

  • Surface treatment: welding seam grinding, inner and outer surface plate polishing treatment.


Pipes And Fittings

  • One set of equipment with all pipes and fittings.


402

DEGONG 2000L copper distillery


Contact us

The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
