| Technical Parameter |

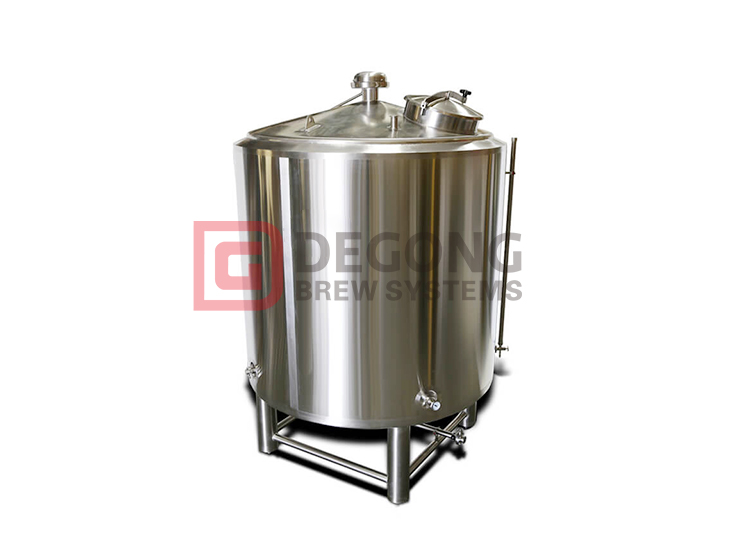

Material: SUS304;
Surface treatment: external wire drawing, internal polishing <0.4UM;
saucer or tapered top, 4 legs, feet adjustable;
Usually gas, steam or electric heating;
Insulated by PU foam and 2mm clad steel;
Accessories include top manhole, vent, thermometer, CIP, inlet and outlet, overflow.
Effective volume | Dimension of tank | Total height | Diameter of inlet&outlet | Heat preservation layer | Motor power |
(L) | (mm) | (mm) | (mm) | (mm) | (kw) |
500 | 840*1000 | 2750 | 60 | 38 | 0.55 |
1000 | 1060*1220 | 3150 | 60 | 51 | 0.75 |
1500 | 1160*1500 | 3350 | 60 | 51 | 0.75 |
2000 | 1340*1500 | 3410 | 60 | 51 | 1.1 |
3000 | 1410*2000 | 4000 | 60 | 51 | 1.5 |
4000 | 1620*2000 | 4250 | 60 | 51 | 1.5 |
5000 | 1810*2000 | 4300 | 60 | 51 | 2.2 |
6000 | 1980*2000 | 4550 | 60 | 51 | 2.2 |
7000 | 1930*2440 | 5000 | 60 | 51 | 2.2 |
8000 | 2060*2440 | 5000 | 60 | 51 | 3 |
9000 | 2180*2440 | 5050 | 60 | 51 | 3 |
10000 | 2300*2440 | 5050 | 60 | 51 | 3 |
12000 | 2270*3000 | 5600 | 60 | 51 | 4 |
15000 | 2530*3000 | 5700 | 60 | 51 | 4 |
20000 | 2640*3660 | 6400 | 60 | 51 | 5.5 |
| Packaging |
Wooden case for LCL;
Plastic film wrapped and iron frame fixing for FCL
All tanks will be packaged with soft protection material and mounted on strong carbon steel frame
All accessories and spare parts will be packaged with seperated box.
After loaded into containers, all equipments will be well fixed to the containers.
