DG-1000L
DEGONG

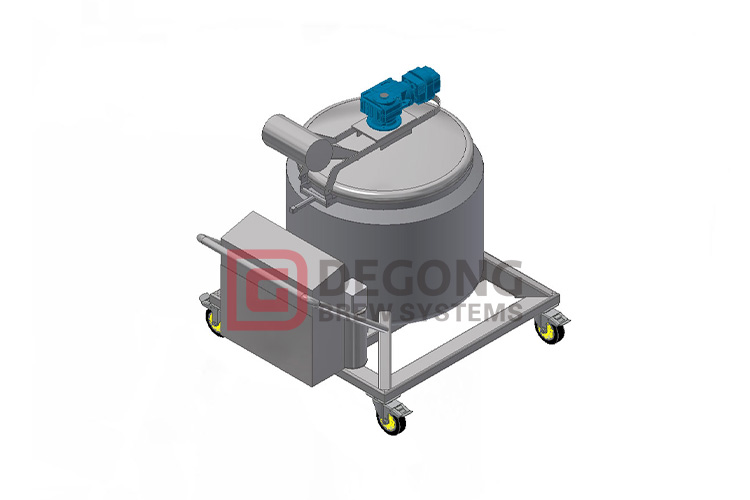

| 1000L Chocolate Mobile Tanks Stainless steel storage tank | |
| Material | SS304 or SS316L or Duplex stainless or 904L |
| Design Pressure | -1 -10 Bar (g) or ATM B9 |
| Work Temperature | 0-200 °C |
| Volumes | 100~30000L |
| Construction | Vertical type or Horizontal type |
| Jacket type | Dimple jacket, full jacket, or coil jacket |
| Structure | Single layer vessel, vessel with jacket, vessel with jacket and insulation |
| Heating or cooling function | According to the heating or cooling requirement ,the tank will have jacket for requried function |
| Surface Finish | Mirror Polish or Matt polish or Acid wash&pickling or 2B |
| Standard components | Manhole,sight glass , cleaning ball |
Name | Model | Main use | Volum | Motor Power |
Mini melting tank | DG50 | Melt,storage,Heat preservation | 50KG | 0.75kw |
Holding tank | DG100 | Tempering&Mixer | 100KG | 1KW |
Holding tank | DG150 | Melt,storage,Heat preservation | 150KG | 1.1KW |
Heat preservation tank | DG250 | Heat preservation&Mixer | 250KG | 1.5KW |
Heat preservation tank | DG500 | Heat preservation&Mixer | 500kg | 2.2KW |
| Heat preservation tank | DG1000 | Heat preservation&Mixer | 1000kg | 2.2kw |
| Heat preservation tank | DG2000 | Heat preservation&Mixer | 2000kg | 5.5kw |
| Heat preservation tank | DG3000 | Heat preservation&Mixer | 3000kg | 5.5kw |
| Heat preservation tank | DG5000 | Heat preservation&Mixer | 5000kg | 6kw |
DEGONG 2000L Milk Storage Tank
| Contact us |
The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
