1000L Beer Fermentation Tank SUS304 Material High Efficiency Fermenter for Sale

The interior of the beer fermentation tank is made of food grade 304 stainless steel. Use polyurethane for warmth. The outer surface can be polished stainless steel or copper according to customer requirements. Beer cooling water-cooled pit jacket. Diameter and height can be adjusted according to customer requirements.
Availability:
Quantity:
  • DG-1000L
  • DEGONG
Product Description

1000L High Efficiency Fermenter


Parameter
  • 1. Effective volume: 1000L    Total volume: 1350L

  • Dimensions: 1210mm*2550mm

  • Cooling jacket

  • Insulation: Polyurethane

  • Insulation thickness: 80mm

  • Pit plate cooling jacket: 1.5mm

  • Internal thickness: 3mm

  • External thickness: 2mm

  • Dish head and taper angle 60°

  • Side manhole

  • CIP360°rotary spraying device

  • Equipped with solenoid valve, breathing valve, mechanical pressure regulating valve, sampling valve and accessories

  • Material: SUS304, brushed shell


11

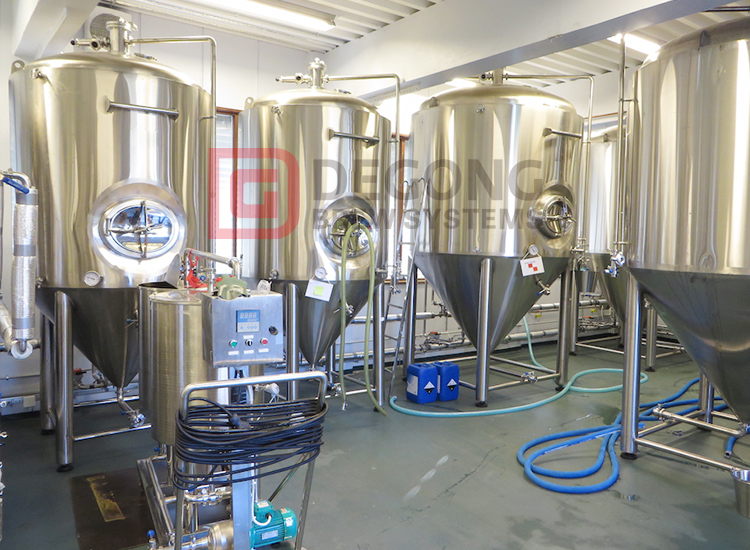

The features of this system: small footprint, high production efficiency and easy operation.


Name
Capacity
Quantity
Details
Grain Mill
The output is changeable
1
Doulbe roller, adjustable mill degree, stainless steel,Votage:adjustable
Mash System
100-5000L according to your requirement
1
Material:SUS304,316 or red copper
Inner thickness:3mm
Outer tank thickness:2mm
Surface:Mirror polished Ra≤0.5 or 0.4
Volume: 20% extra headspace
Heating method:Electric for small capacity and steam for large capacity
Including valves, spray ball, glass manhole, washing pipeline,PT100 tempreture sensor, Siemens motors.
Plasma cutting sieve plate:gap width ≤0.9mm
Stainless Steel
Hot Liquor Tank
100-5000L according to your requirement
1
Material:SUS304,316 or red copper
Inner thickness:3mm
Outer tank thickness:2mm
Surface:Mirror polished Ra≤0.5 or 0.4
Volume: 20% extra headspace
Wort Pump
1-10T/h
1
Simens motor, voltage:adjustable;delivery lift:24m;inlet:φ38,outlet:φ32
Pipeline
SUS304
1
Material:SUS304 stainless steel
mirror polished
Working platform
SUS304
1
Accroding to your brewery layout
SUS304 Stainless Steel
Plate heat exchanger
1-20m^2
1
Stainless steel SUS304
Double guide cooling process with four stages
design pressure:1.25Mpa
Fermentation Tank
100-5000L according to your requirement
1
Material:SUS304,316 or red copper
Tank thickness:inner tank:3mm
outer tank:2mm
Insulation:polyurethane 80mm
Preasure:0.2Mpa
Top/side manhole(according to your requirement)
Accessories:pipeline,spray ball,preasure relief valve,sample valve,hops port,PT100 sensor
Bright(Brite)Beer Tank
100-5000L according to your requirement
1
Material:SUS304
Tank thickness:inner:3mm outer:2mm
Glycol Ice Water Tank
100-5000L according to your requirement
1
material:SUS304
Tank thickness:inner:3mm outer:2mm
CIP Cleaning system
adjustable capacity
1
sterilization tank
alkali liquor tank


18
