1000L 2000L Conical Fermentation Tank Stainless Steel Beer Fermentation Equipment

It is important to have a precisely built vessel to regulate your beer fermentation and maturation. We offer ultra-precision welding and polishing, full traceability, material accuracy, and are committed to producing certified pressure vessels that meet all international standards.
Availability:
Quantity:
  • DG-1000L
  • DEGONG
Product Description

1000L Conical Fermentation Tanks


Product Parameters
  • Effective capacity: 1000L

  • Corrugated plate cooling jacket on tank body and cone bottom

  • Insulation: Polyurethane, TH=80mm

  • Internal thickness: 3mm; external thickness: 2mm

  • Dish head and taper angle 60°

  • Temperature sensor TP100

  • Side manhole with press door

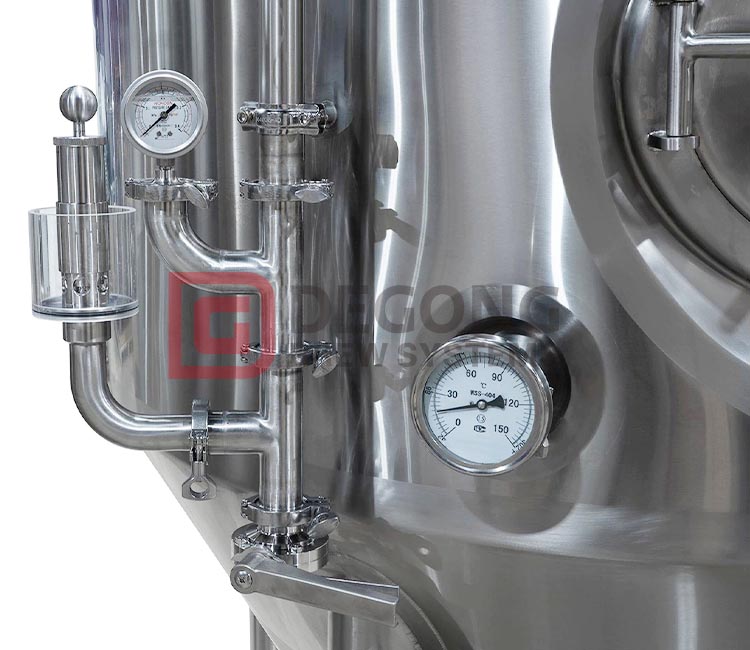

  • Matching with solenoid valve, breathing valve, pressure relief valve, sampling valve, beer outlet valve, drain valve and accessories

  • Inner tank mechanical polishing and outer plate surface protection ribbon polishing

  • CIP 360° rotating spray device

  • Material: SUS304, brushed shell

  • Pieces Completely SUS304 Heavy Duty Outriggers with Leveling Pads


226


Beer fermenting

There are three main fermentation methods, warm, cool and wild or spontaneous.

Fermentation may take place in open or closed vessels.

There may be a secondary fermentation which can take place in the brewery, in the cask or in the bottle.


Fermenting ways
  • Warm-fermenting:

In general, yeasts such as Saccharomyces cerevisiae are fermented at warm temperatures between 15 and 20 °C (59 and 68 °F), occasionally as high as 24 °C (75 °F).as during the fermentation process its hydrophobic surface causes the flocs to adhere to CO2 and rise; because of this,they are often referred to as “topcropping” or “topfermenting”– though this distinction is less clear in modern brewing with the use of cylindro-conical tanks.

Generally, warmfermented beers are ready to drink within three weeks after the beginning of fermentation,although some brewers will condition them for several months.


  • Cool fermenting:

Lager is beer that has been cool fermented at around 10C (50 F), compared to typical warm fermentation temperatures of 18 °C (64 F).

It is then stored for 30 days or longer close to the freezing point,and during this storage sulphur components developed during fermentation dissipate.


227


Item
Production capacity
Volume in US Gallon
Heating area
Tank diameter
Height
DG-100
100L/day
26US Gallon
0.5m2
650mm
1500mm
DG-200
200L/day
53US Gallon
0.8m2
850mm
1600mm
DG-300
300L/day
79US Gallon
1.2m2
960mm
1700mm
DG-400
400L/day
106US Gallon
1.5m2
1060mm
2000mm
DG-500
500L/day
132US Gallon
1.8m2
1160mm
2300mm
DG-600
600L/day
158US Gallon
2.0m2
1220mm
2350mm
DG-700
700L/day
185US Gallon
2.4m2
1260mm
2380mm
DG-800
800L/day
212US Gallon
2.5m2
1260mm
2400mm
DG-1000
1000L/day
264US Gallon
2.6m2
1360mm
2500mm
DG-1500
1500L/day
396US Gallon
3.2m2
1520mm
2900mm
DG-2000
2000L/day
528US Gallon
3.6m2
1560mm
2850mm
DG-2500
2500L/day
660US Gallon
3.8m2
1650mm
3200mm
DG-3000
3000L/day
792US Gallon
4.5m2
1760mm
3800mm
DG-4000
4000L/day
1057US Gallon
4.9m2
1900mm
4100mm
DG-5000
5000L/day
1320US Gallon
7.2m2
1960mm
4400mm


110
