DGET 50-10000L
DEGONG
1000L 2000L Commercial Brewhouse
| 2000L Brewery Reference Configuration |
Items | Equipment | Specification | Quantity |
Malt miller | Malt miller | 500kg/hour | 1 |
Brewhouse system | Mash/Lauter tun | 2000L | 1 |
Boiling/whirlpool tank | 2000L | 1 | |
Hot liquid tank | 2000L | 1 | |
Wort oxygenator | 1 | ||
Plate heat exchanger | 25m2 | 1 | |
Pump | 5t/h | 1 | |
Working platform | 1 | ||
Fermentation system | Fermentation tank | 2000L | 6-10 |
Yeast adding tank | 50L | 1 | |
Cooling system | Glycol water tank | 3000L | 1 |
Cooling compressor | 8hp | 2 | |
Pump | 3t/h | 1 | |
CIP system | Alkali tank | 100L | 1 |
Sterilization tank | 100L | 1 | |
Pump | 3t/h | 1 | |
Control system | PLC controlling system | 1 | |
Spare parts | All spare parts | ||

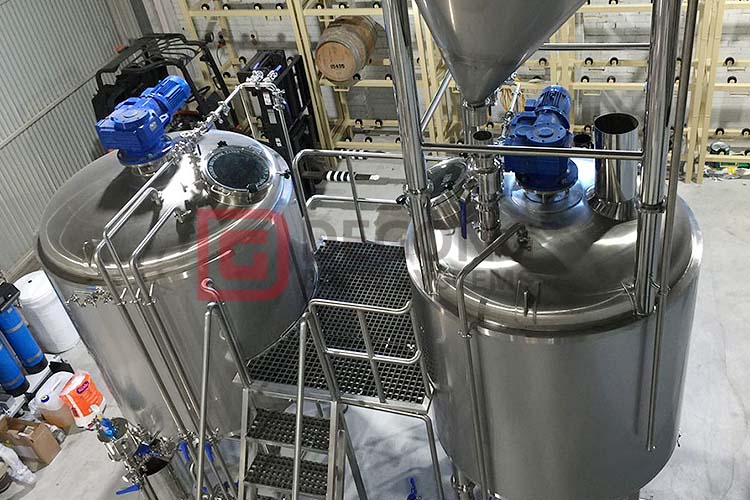

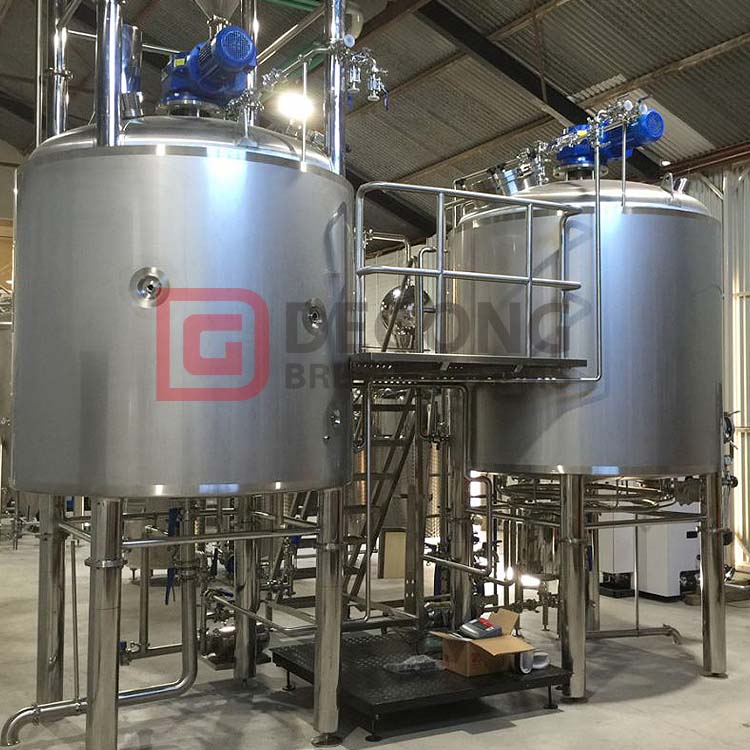

DEGONG 2 VESSEL BEER BREWHOUSE
| Brewhouse System |
Interior Shell:SUS304/316 thickness 3mm
Outside wall: SUS 304, thickness 2mm
Top shape: Dome top
Bottom shape: Cone bottom, 160 degree
Flase bottom: milled false bottom, removable
Manyway: Top manyway with lighted sight glass window
Sparging arm: TC connection sparging ball
Thermowell: High accuracy temperature sensor, PT100
Heating method: electric/steam heating
Insulation: Polyurethane, thickness 100mm
Polishing: 0.4-0.6μm without dead corner
Welding: 100% TIG welding with pure argon gas shield
Plate heat exchanger: SUS 304 plates and frame, working temperature: less than 150℃
Wort pump: food grade sanitary and high efficiency wort pump
Agitator: Power: 0.75kw, speed ratio: 1:43
Flow sight glass
All necessary pipings, pipes and fittings
| Fermentation system |
Usage: fermentation, maturation and storage
Interior Shell: SUS304,thickness: 3.0mm;
Exterior Shell: SUS304,thickness: 2.0mm;
Insulation: Polyurethane-thickness:100mm
100% TIG welding with pure argon gas shield
Interior Finish:Mirror polishing to 0.4~0.6 μm without dead corner
Cooling jacket: both on cone and cylinder parts, thickness:1.5mm
Cooling media: glycol water
Dry hopping port on top
Side/top mounted manway
Safety/vacuum valve on top
Sample valve
Test Pressure:0.3 Mpa,Working pressure 0.2Mpa.
Rotating racking arm on cone with butterfly valve
Discharge arm with butterfly valve
CIP arm with 360° coverage CIP spraying ball
Thermowell with high accuracy temperature sensor: PT100
Legs with height adjustable pad.
DEGONG BEER FERMENTATION TANK FOR SALE
