Design pressure 45 psi (3bar); working pressure 25psi (1bar)
4 stainless steel legs with leveling footpads
Interior shell: stainless steel, thickness 3mm
Exterior shell: stainless steel, thickness 2mm
Interior and exterior finish bright polish to 0.4～0.6 μm, hygiene surface
All Interior welds ground to a smooth0.4～0.6μm sanitary finish
Flanged and dished head top and bottom
25% headspace unless a different volume is requested
Combined drain extensions and beer port are standard
Top manway or side manway door
Dual zone in sidewall and bottom dimple cooling jacket with glycol inlet and outlet
Polyurethane insulation thickness 80mm for cooling jacket on side and bottom
Non welding CIP arm and rotating 360 degree reach spray ball
Carbonation system with micron stone
Solenoid valve, pressure relief valve (safe valve) are standard.
Temperature sensor well
All clamps and gaskets to attach all accessories
Tank complete with piping, fittings, sanitary valves and all parts.

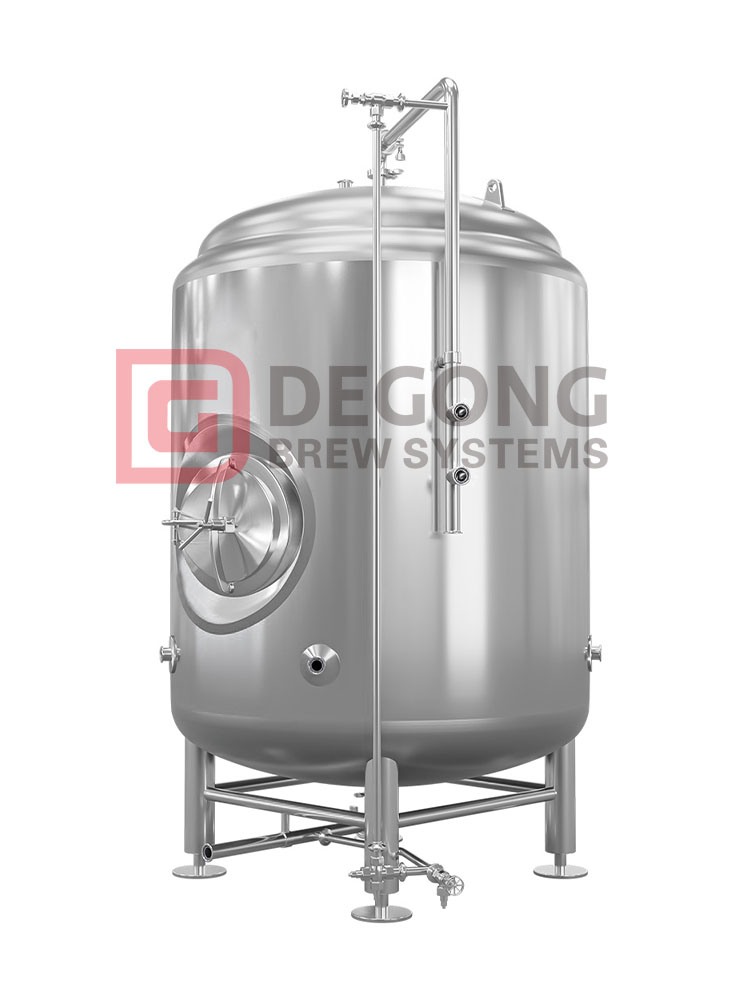

|Vertical bright beer tank|
Due to the pressure requirements, the diameter of the bright beer tank is generally limited, so that the capacity of the vertical brite tank can not be made too large, otherwise, it will be very higher, it is difficult to place and move.
The liquid level height of the vertical tank is 2-3 times larger than that of the horizontal tank. Therefore, when the beer is put into the brite tank, it is necessary to overcome the pressure larger than that of the horizontal tank (about 0.0098mpa pressure needs to be increased for every 1 m height increase), which correspondingly increases the pressure required for the filtration process.
If the filtered beer is sent in by compressed air, it will increase the pressure on the storage tank. However, on the contrary, it is because the brite tank has a relatively high liquid pressure, so that the beer can be put into the tank more smoothly. When filling, a smaller delivery pressure can be used.
The maximum contact surface of the beer in the vertical brite tank with compressed air (oxygen) is the cross-sectional area of the tank, which is relatively much smaller than the horizontal bright beer tank, so that the degree of dissolution and oxidation effective is better in the bright beer tank.
