Product Introduction

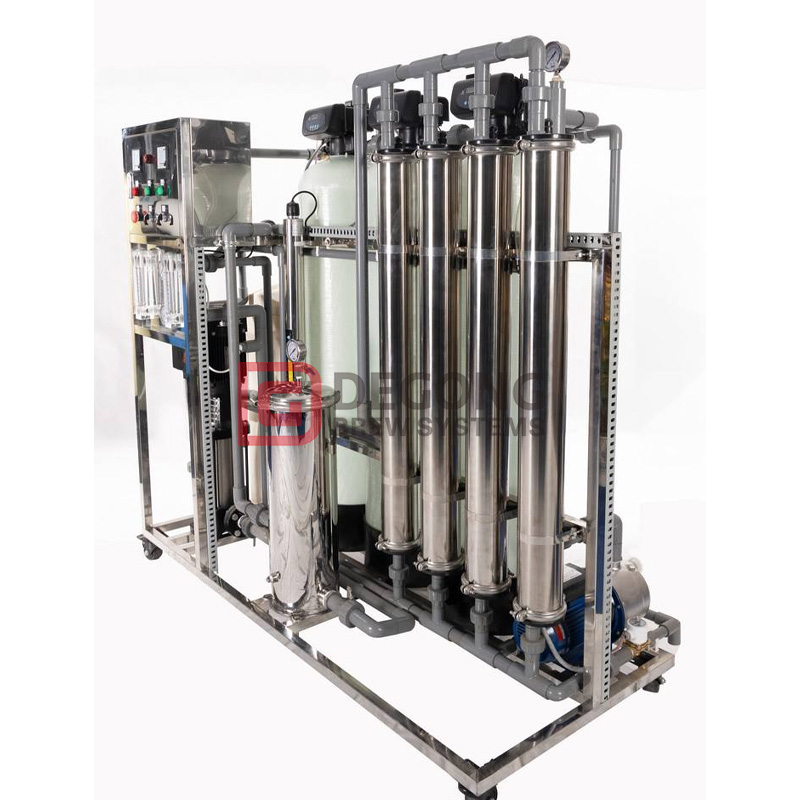

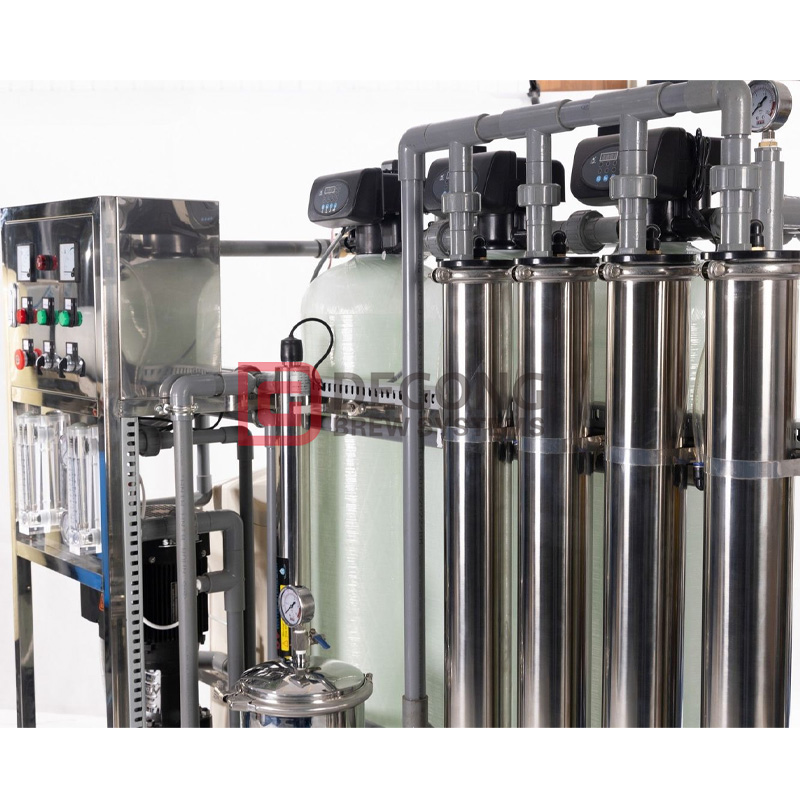

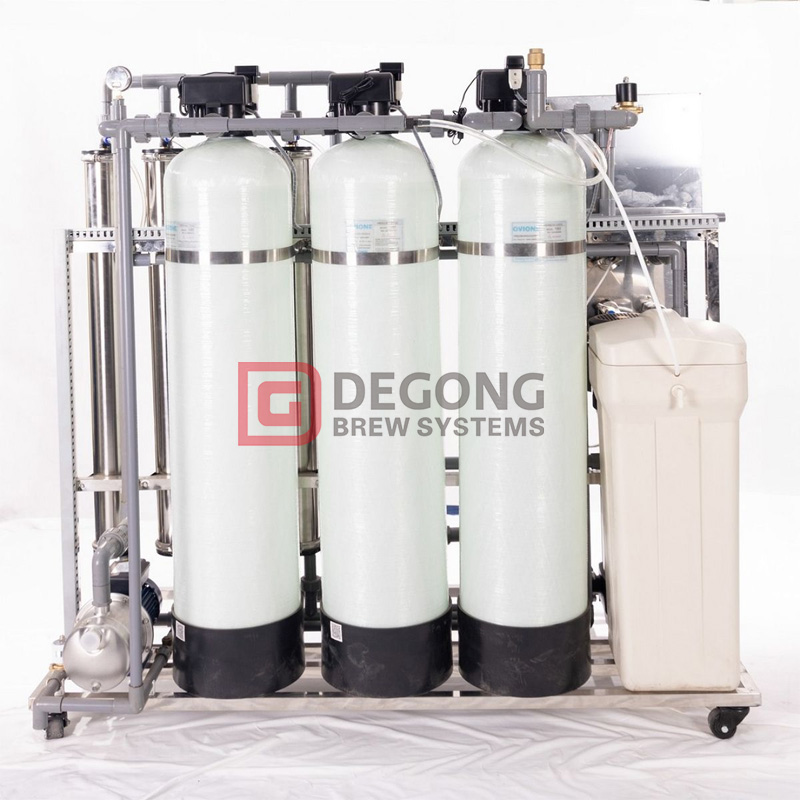

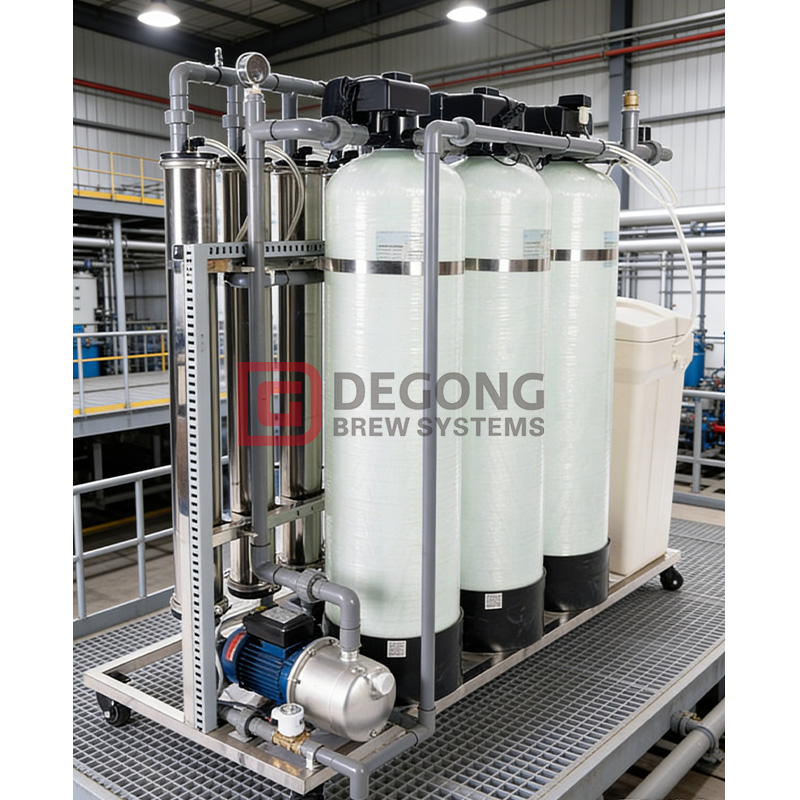

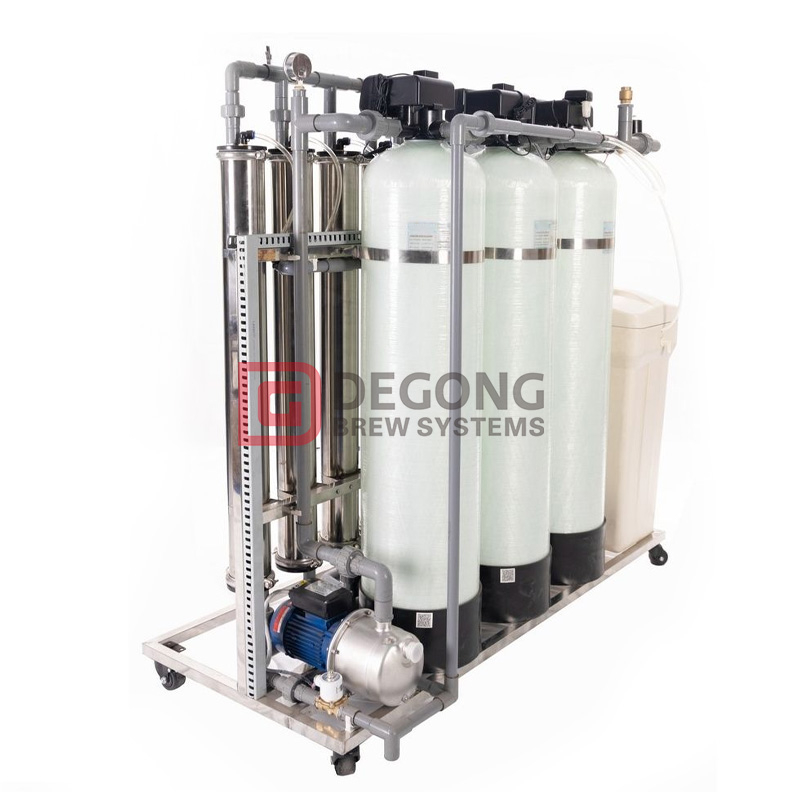

The 1000LPH two-stage reverse osmosis water treatment system is an industrial purification solution designed for high-quality pure water production. With a capacity of 1000 liters per hour and constructed using SS304 stainless steel, it ensures durability and stable performance in demanding environments.
This system is used to remove dissolved solids, ions, and contaminants through a two-stage filtration process, providing higher purity water compared to standard systems. It supports industrial processes requiring consistent and reliable water quality.
It is widely suitable for electronics manufacturing, food and beverage production, pharmaceuticals, and other industries requiring high-purity water.
Technical Specifications
| Item | Parameter |
|---|---|
| Capacity | 1000 liters/hour (1 T/h) |
| Daily Output | ~24,000 liters/day |
| RO Membrane | 8–10 × 4040 |
| Pump Power | 3 HP |
| Voltage | 380V / 50Hz |
| Frame Material | SUS 304 Stainless Steel |
| Control System | PLC Touch Screen (Optional) |
| Pre-filtration | PP + CTO + Softener, Optional |
| Automatic Membrane Flushing | Yes |
| Water Quality Output | Drinking Standard |
| Approx. Dimensions (mm) | 1800×800×1800 mm |
| Best For | Large Factory, Water Plant |
| Highlighted Function | High-capacity water purification for high-demand industrial applications |
Main features
• Two-stage reverse osmosis design significantly improves water purity compared to single-stage filtration systems
• SS304 stainless steel construction ensures corrosion resistance, hygiene, and long-term durability in industrial environments
• 1000LPH capacity supports continuous and stable pure water supply for medium-scale industrial applications
• Advanced multi-stage pre-treatment system protects RO membranes and enhances overall system efficiency
• High-performance membranes effectively remove dissolved salts, heavy metals, and microorganisms from raw water
• Stable operation with efficient energy usage reduces long-term operating and maintenance costs
Working principle
The system utilizes a two-stage reverse osmosis filtration process. Raw water first passes through pre-treatment units to remove suspended particles and chlorine. It is then pressurized and enters the first-stage RO membrane to remove most dissolved solids. The partially purified water is further processed through a second-stage RO membrane for deeper purification. The final output is high-purity water, while concentrated wastewater is discharged separately.
Application scenarios
• Electronics and semiconductor manufacturing requiring high-purity process water
• Food and beverage production lines with strict water quality standards
• Pharmaceutical and laboratory applications needing low TDS purified water
• Industrial boiler feed water and cooling system treatment
• Bottled pure water and drinking water production facilities
• Chemical processing and precision manufacturing water treatment
FAQ
Q: Is this a two-stage RO system?
A: Yes, it is a two-stage RO system for better purification.
Q: Is the system made of SS304?
A: Yes, key parts are made of SS304 for durability and hygiene.
Q: What is the main application of this system?
A: It is mainly used for industrial pure water production and purification.
Q: Does this system require professional installation?
A: Yes, professional installation is recommended for stable and safe operation.
