10 BBL Turnkey Beer Brewing System Project Complete Craft Brewery Unit Brewhouse Vessels

10BBL Turnkey Beer Brewing System

Combination Mash/Lauter Tuns are the first combination vessel in these smaller brewhouses line ups. This vessel should be sized to favor the Lauter operation, and have the mechanics for mixing mash and graining out. Next inline is the combination of the Kettle/Whirlpool tanks. This combination vessel is designed and sized for being primarily a kettle, but is equipped with a tangential fitting for whirlpooling.

Malt Milling Unit

• Particles adjustable counter-roll dry crusher or wet crusher

• Flexible or steel auger lifts milled grain directly to the mash bucket

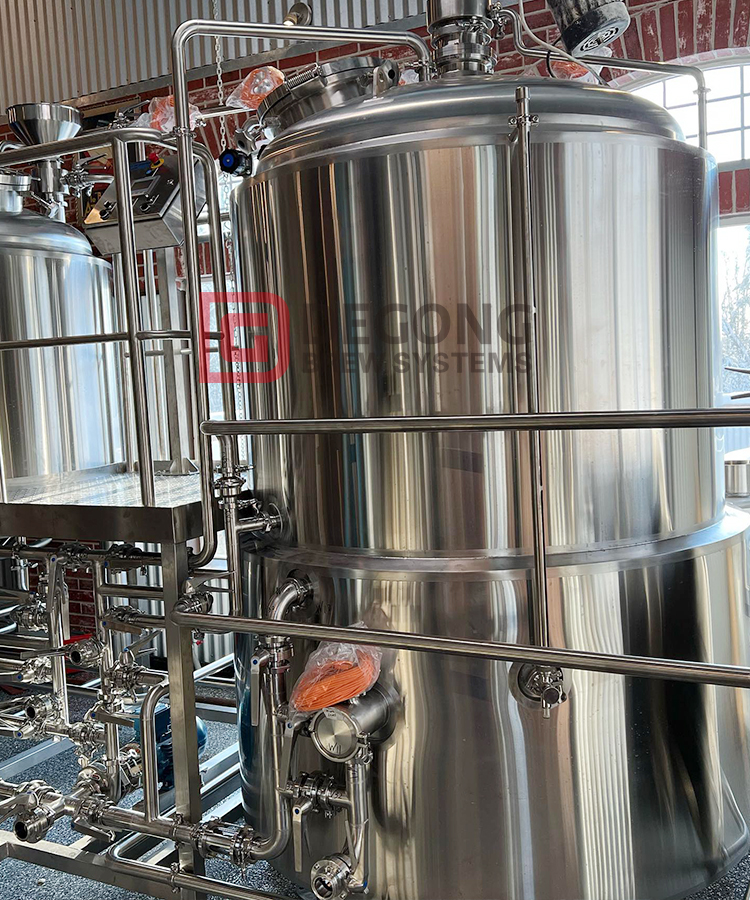

Brewhouse System

• Mash/lauter tun, kettle/whirlpool tun 2-vessel combination;

• Two-stage or single-stage heat exchanger for wort cooling;

• Wort oxygenation device before entering the fermenter;

• Hygienic and high-efficiency mash pump with frequency conversion

• Sanitary stainless steel pipes and valves

• Quick-install and fully detachable stainless steel operating platform

• Special combination of brewing water tank, hot water tank and cold water tank can be selected

Fermentation System

• Stainless steel fermentation tank with cooling jacket

• Stainless steel bright tank or storage tank with cooling jacket

• The quantity and volume of fermentation tanks are accurately calculated by the fermentation cycle of various beers

• All orifices, valves, pressure gauges, safety valves, temperature probes, rotating arm beer outlet and other accessories are included

• Unitanks with carbon dioxide charging device with carbon fossil

Glycol Cooling System

• Insulated glycol tank for glycol liquid holding and mixing

• The chiller or refrigerator is accurately calculated the cooling capacity according to the needs of heat exchanger and fermentation system

• Sanitary centrifugal pump powering glycol water circulation

• Other more energy-efficient options, such as adding a cold water tank

CIP Cleaning System

• A removable CIP cleaning system including lye tank and acid tank is available;

• Fixed CIP cleaning system including lye tank, acid tank and hot water tank is available;

• Simple mobile pump is available;

Control System

• PID semi-automatic control with temperature display, setting and control and pump start-stop control is available;

• PLC automatic control is optional; it has temperature, flow, liquid level display and control, accurate metering of feeding water and automatic mixing, editing and storage of recipes and one-key completion of the brewing process;

The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
