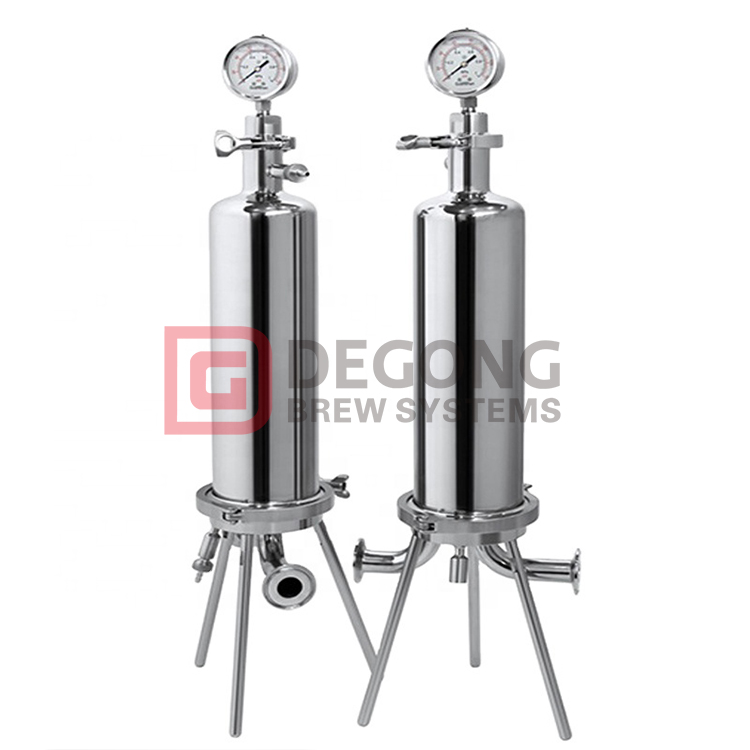

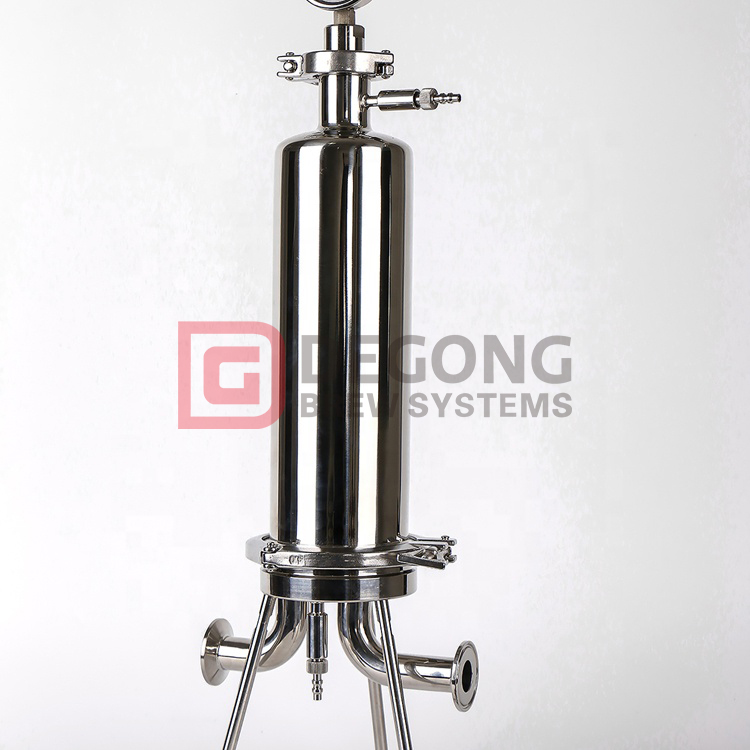

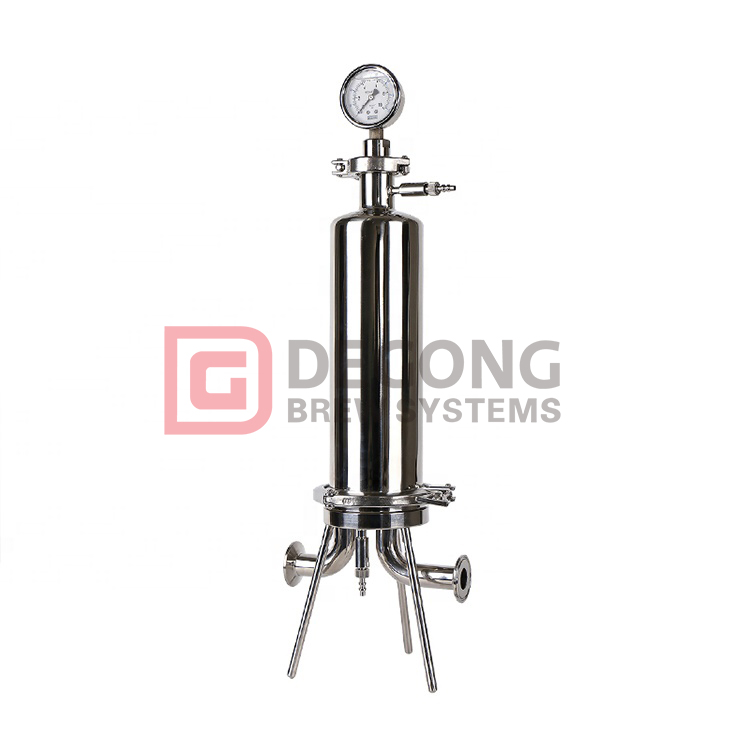

Sanitary Single Cartridge Filter Housing
The filter housing can be used in conjunction with various types of filter elements. The inner and outer surfaces are polished, the structure is reasonable, and there is no dead angle. It is easy to install and clean, and can achieve the filtering effect required by customers. Its design complies with the GMP standard of the medical industry. Filters include liquid filters and gas filters.
The sanitary filter housing is made of the highest quality 316 stainless steel. These are suitable for various liquid filtration applications.
Intended to install standard 222 O'ring and 226 O'ring filter elements.
They have an integrated bayonet positioner that provides an effective seal between the housing and the cartridge.

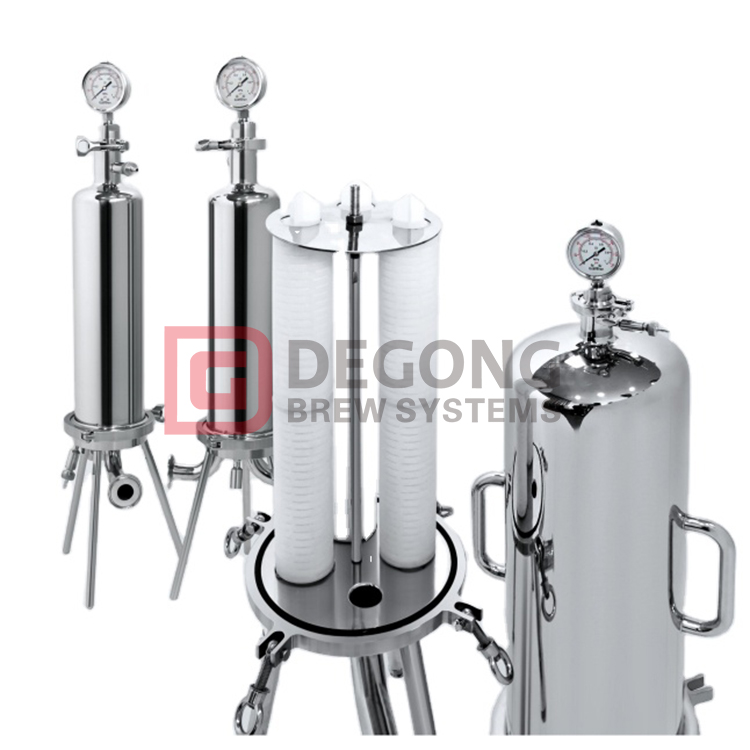

Depending on their type, sanitary filter housings are available in 1, 3, 5, and 12 round configurations, as well as 10-inch, 20-inch, 30-inch, and 40-inch long filter elements.
Its hygienic design can ensure low product retention and reduce product loss.

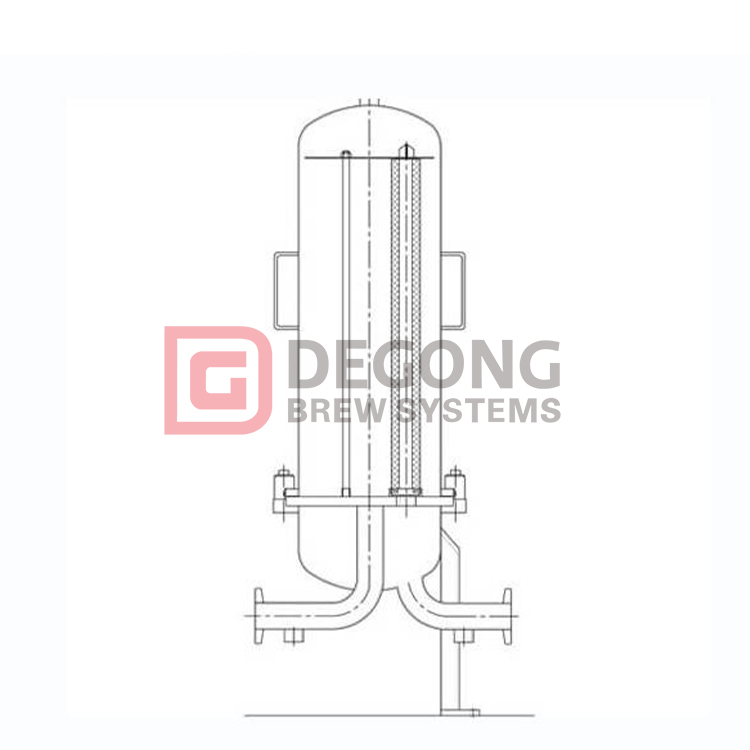

Contaminated fluid enters the housing and is distributed evenly around the filter cartridges. Filtration takes place from outside to inside. Solids are collected on the outside of filter cartridges & clear filtrate is collected at outlet.
Features and advantages
Integral cartridge location.
Low product hold-up.
Easy to clean.
EPDM seals / silicone.

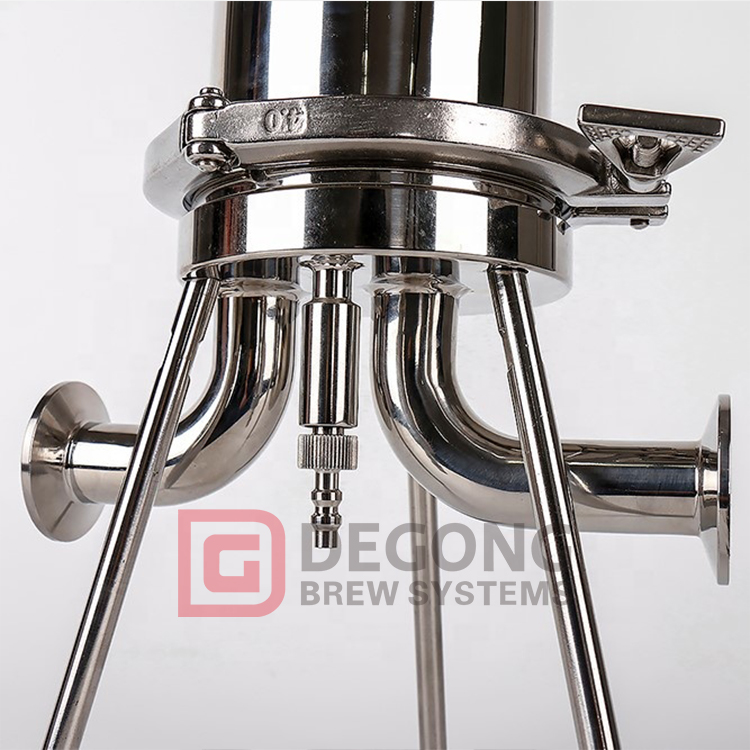

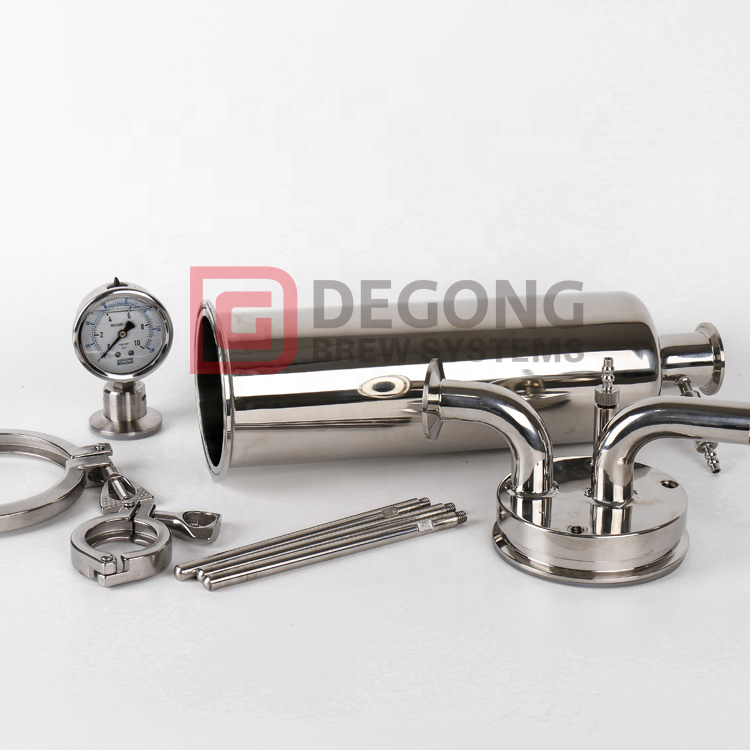

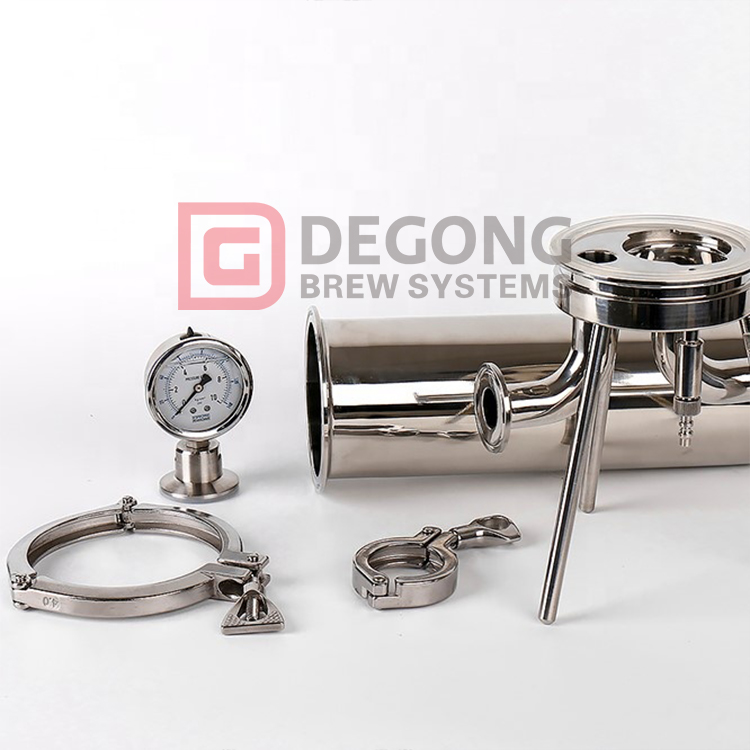

Quick release housing clamp.
Hygienic clamp pipe fittings.
Full range of sizes.
In-situ steam sterilization can be carried out according to the filter element parameters. All shells are equipped with supporting legs, which can be installed independently or in line.
|Material of Construction||SS 316L (stainless steel SS 316 L)|
|Connections||Hygienic clamp type|
|Surface treatment||Mirror polished & electropolished|
|Cartridge fitting||222 O’ ring / 226 O’ Ring (bayonet fit)|
|Maximumoperating pressure||7 BARG (102 psig)|
|Housing closure seal||EPDM / silicone O’ Ring for single cartridge EPDM / silicone square O’ Ring for multi cartridge|
Electronics and pharmaceutical industry
