Product specifications
| No | Item |
| Material | SS304, SS316L |
| Size | DN25-DN100,1"~4" |
| Mesh size | 10~200mesh |
| Standard | 3A / DIN / SMS / ISO |
| Connetion | Welded, Clamped, Union, Flange |
| Service | OEM / ODM |
| Packing | Carton Box / Plywood Case / Special Packaging Upon Customer Requirements |

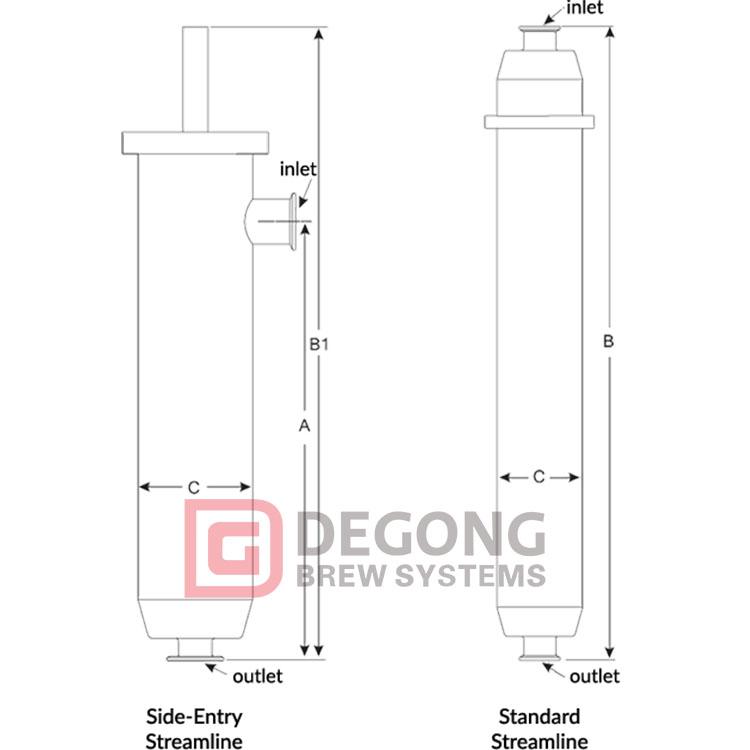

| Connection Size (in) | A (in) | B (in) | B1 (in) | D (in) | C (in) | Effective Filter Area (ft2) | |
|---|---|---|---|---|---|---|---|
| Short | 1 | 15⅜ | 15¾ | 22¼ | 3½ | 4 | 0.65 |
| 1½ | 15⅜ | 15¾ | 22¼ | 3½ | 4 | 0.65 | |
| 2 | 15⅜ | 15¾ | 22¼ | 3½ | 4 | 0.65 | |
| 2½ | 15⅜ | 15¾ | 22¼ | 5 | 4½ | 0.75 | |
| 3 | 15⅜ | 15¾ | 22¼ | 5 | 4½ | 0.75 | |
| Long | 1½ | 35 | 35⅜ | 41⅞ | 3½ | 4 | 1.95 |
| 2 | 35 | 35⅜ | 41⅞ | 3½ | 4 | 1.95 | |
| 2½ | 35 | 35⅜ | 41⅞ | 5 | 4½ | 2.25 | |
| 3 | 35 | 35⅜ | 41⅞ | 5 | 4½ | 2.25 |
Application
Suitable for dairy products, food, beverages, meat and poultry, cosmetics and pharmaceutical industries
Feature
The mesh is designed to be porous enough to avoid clogging easily, but still prevent large solids from passing through
The filtrate is discharged from the outlet of the filter. When cleaning is needed, just take out the detachable ink cartridge and reinstall it after handling. Therefore, it is extremely convenient to use and maintain
Can be equipped with any one of seven filter media
Can improve product quality and hygiene, and help protect processing equipment
Free-flowing design and stainless steel structure provide the best hygiene and corrosion resistance
It is compatible with various woven and non-woven filter media

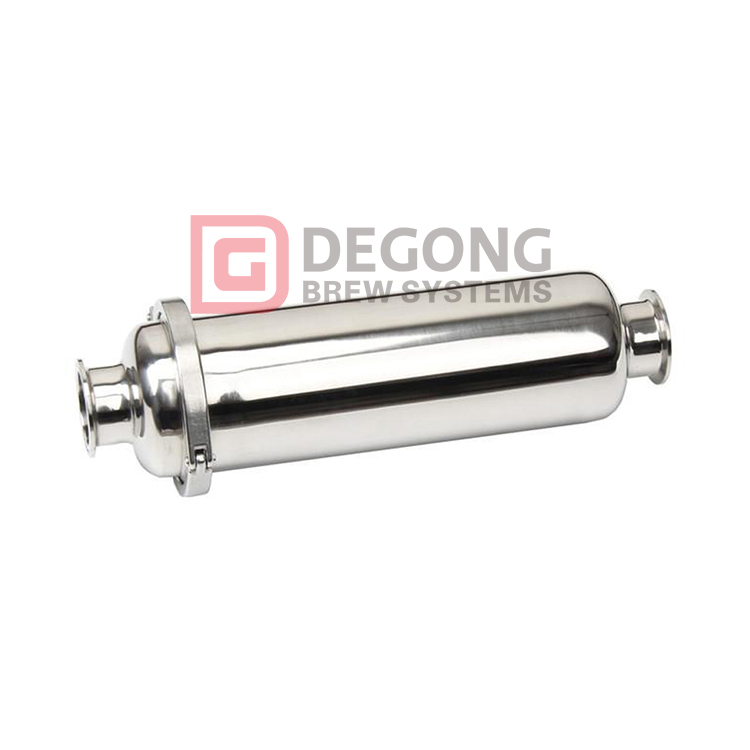

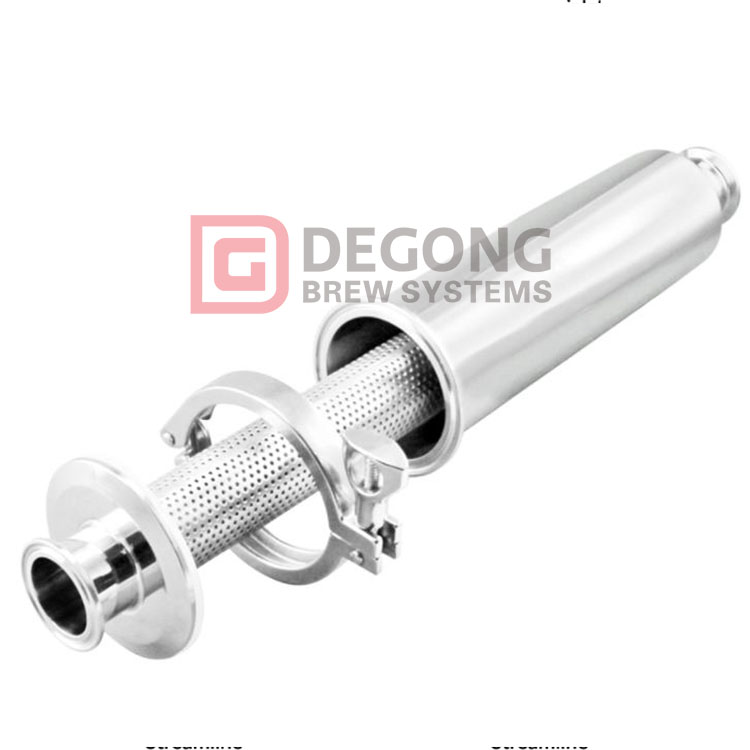

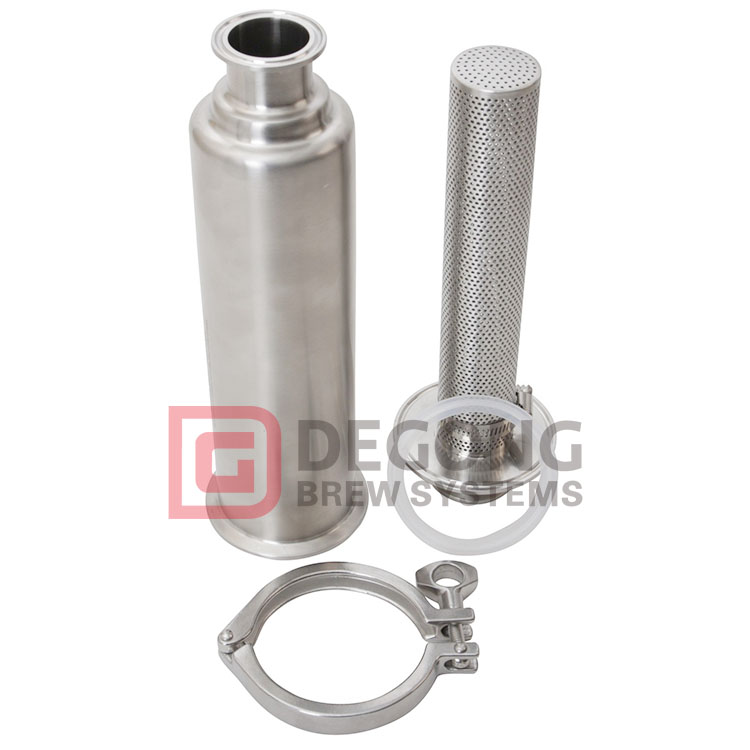

Products Show
Our advantage
1. Professional manufacturing factory
2. Good quality and service control system, produced by skilled workers
3. Design according to customer requirements
4. Timely and effective delivery
5. Flexible payment methods
| We can customize product specifications according to your requirements. If you have any needs or questions, please contact us. |
