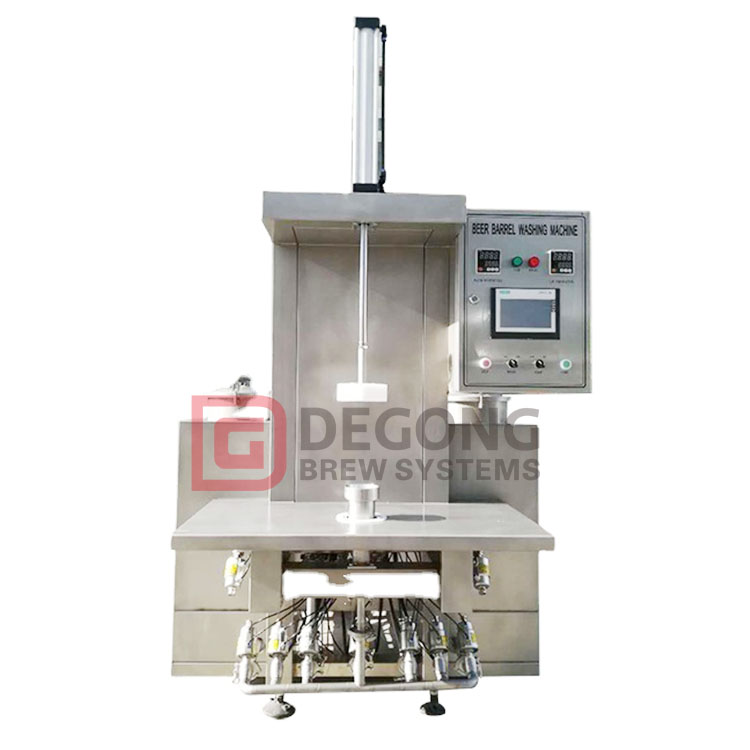

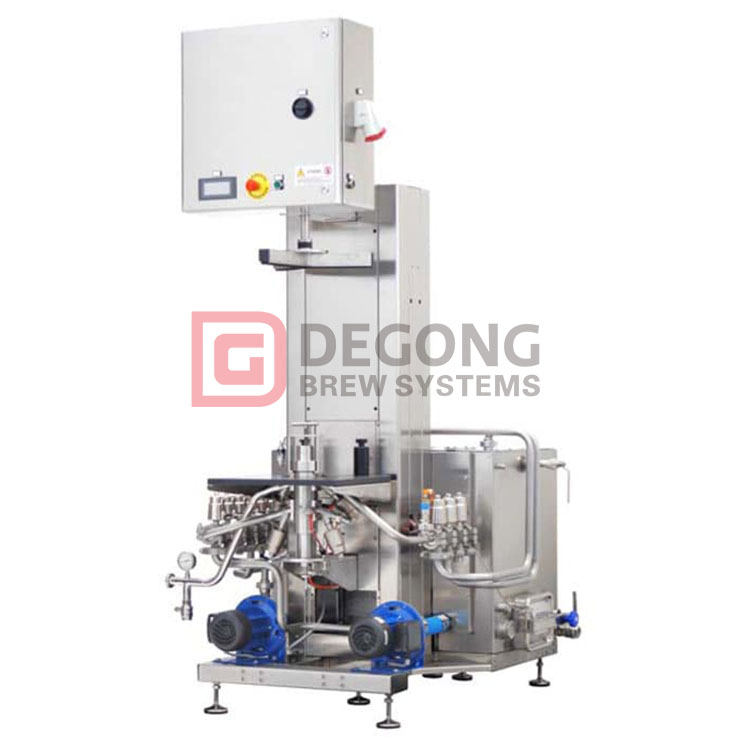

1 Head Semi-automatic Cleaning And Filling Barrel Machine 16-19 Barrels/hour

1 Head Beer Kegs Washer

Cleaning and filling cycle -Capacity

20L or 30 L kegs: 19 per hour

50L drum: 16 per hour

Describe

The entire structure of the machine and the parts in contact with liquids and beverages are completely made of AISI 304 stainless steel. The filling head has been carefully designed to eliminate any type of contact between the part of the product being processed and air, and to ensure that the filling process is completely sterile.

The entire structure of the machine and the parts in contact with liquids and beverages are completely made of AISI 304 stainless steel. The filling head has been carefully designed to eliminate any type of contact between the part of the product being processed and air, and to ensure that the filling process is completely sterile.

The system is suitable for connecting with a steam generator to heat sterilize the container.

The command and control components are located in the waterproof control panel and are electronically managed through the use of PLC.

Our valves for controlling the washing and filling cycle are made of stainless steel ingots, which can be easily cleaned and disinfected due to their perfect internal surface treatment, thereby preventing dirt and dirt deposits.

In addition, the special solid steel structure ensures excellent wear resistance and minimizes the need for daily maintenance operations.

Price includes

• Stainless steel frame


• AISI 304/316 L stainless steel product pipeline

• AISI 304 L stainless steel control board

• 5m feeder

• Adjustable support feet

• Bucket regulator

• Realize cleaning and filling functions through PLC

• touch screen

• Liquid detection sensor for each rinsing, washing and cooking stage (non-condensing)

• Filling pressure sensor and maximum liquid level detection

• Heating detergent through steam bag or electric resistance

• Power socket for connecting the feed pump

• CIP (clean in place) tank for alkaline disinfectant detergent

• CIP (clean in place) tank for acid disinfectant detergent

• Pumps for recirculation of alkaline and acid detergents

• Filling head cleaning and sanitation kit

Technical parameter

Basic parameters

Filling range: 10-50 liters stainless steel keg

Product: Beer

Filling/washing head: 1

Up counter

Accuracy: ±0.20% Average filling accuracy: ±1.5%

Accident prevention: double button cycle start

Resistance to disinfection: water-chemicals-steam

Material

Construction material: AISI 304 L stainless steel

Material in contact with liquid: AISI 304/316 L stainless steel & EPDM/PTFE/silicone

Size and weight

Table height: 850 – 870 mm

Dimensions WxDxH: 1200x1600x 2350 mm

Weight: 430 kg

Electricity

Packing installation power: 1.5 kW

Resistance power (if any): 4.5 kW

Number of phases: 3/PE

Voltage (AC): 400 V

Frequency: 50 Hz

Consume

maximum. Liquid flow rate: 3600 l/h

Product pressure: 2.0 – 2.5 bar

Air pressure: 6-7 bar

Air flow: 850 l/min

Air consumption: 245 l/min

CO2 pressure: 6 bar

CO2 flow rate: 700 liters/min

CO2 consumption: 40 liters/min

Water pressure: 3 bar

Water flow: 3600 liters/hour

Water consumption: 400 liters/hour

Maximum steam pressure for heating (if provided): 2 bar

Steam pressure for barrel sterilization: 2.5 bar

Heating steam consumption: 24 kg/h

Sterilization steam consumption: 12 kg/h

Connect

Product: DN 25 / DIN11851 (Dairy Coupling) or DIN 32676 (TriClamp)

Compressed air: BSP ⅜” external thread (spool valve)

Nitrogen: BSP ⅜” external thread (gas)

Detergent heating steam: BSP ½” external thread gas)

Sterilization steam: BSP ½” external thread (gas)

Water: BSP ¾” external thread (gas)

Power supply: three-phase +N 400V / 50 Hz / 16A
