1-6" DN25-DN150 Sanitary Stainless Steel Pipe Fitting - Welding Ferrule Sanitary Coupling Tri Clover Ferrule

The single-pin heavy-duty clamp with wing nut is made of 304 stainless steel alloy (316 is also available). It is used to connect two separate three-clamp ends to each other. The size of the product ranges from 1/2 inch to 12 inches in diameter.
Availability:
Quantity:
  • 1-6" Sanitary Ferrule set
  • DEGONG
Product Description

1-6" Sanitary Ferrule set


The single-pin heavy-duty clamp with wing nut is made of 304 stainless steel alloy (316 is also available). It is used to connect two separate three-clamp ends to each other. The size of the product ranges from 1/2 inch to 12 inches in diameter. A three-clamp rubber gasket should be placed between the two flange ends to ensure proper fit and firm connection. Do not overtighten the wing nut, as this may damage the product. The recommended tension is to tighten the wing nut until it becomes snug, and then rotate it half a turn by the appropriate amount.

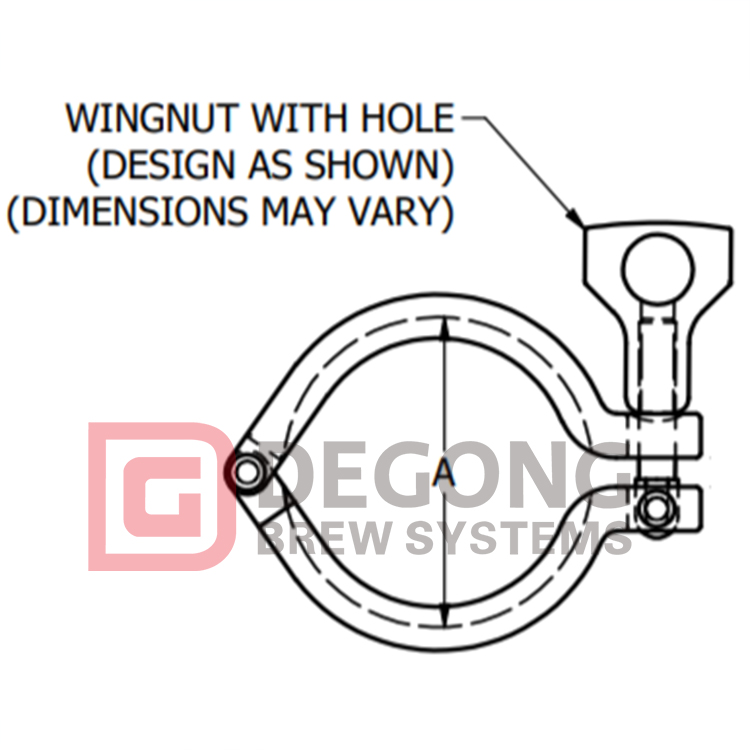

Single Heavy Duty Clamps w/ Wing Nut Part Numbers & Dimensions

136

Size (Tube OD) Part Number Service Pressure Rating at 70°F Service Pressure Rating at 250°F Dimension (A)
304 316
1/2" - 3/4" 13MHHM-.50-304 13MHHM-.50-316 1,500 1,200 1.062
1" - 1 1/2" 13MHHM-1-304 13MHHM-1-316 500 300 2.122
2" 13MHHM-2-304 13MHHM-2-316 450 250 2.654
2-1/2" 13MHHM-2.5-304 13MHHM-2.5-316 400 200 3.185
3" 13MHHM-3-304 13MHHM-3-316 350 175 3.717
4" 13MHHM-4-304 13MHHM-4-316 300 150 4.820
6" 13MHHM-6-304 13MHHM-6-316 150 75 6.695
8" 13MHHM-8-304 13MHHM-8-316 100 50 8.695
10" 13MHHM-10-304 13MHHM-10-316 75 40 10.695
12" 13MHHM-12-304 13MHHM-12-316 50 25 12.695

Tri-Clamp Fittings and Gasket Sizing Guide

123

Sanitary Size OD of Flange End ID of Tube OD of Tube
1/2″ 0.992 0.370 0.500
3/4″ 0.992 0.620 0.750
1″ 1.984 0.870 1.000
1 1/2″ 1.984 1.370 1.500
2″ 2.516 1.870 2.000
2 1/2″ 3.047 2.370 2.500
3″ 3.579 2.870 3.000
4″ 4.682 3.834 4.000
6″ 6.562 5.782 6.000
8″ 8.602 7.782 8.000
10″ 10.570 9.782 10.000
12″ 12.570 11.760 12.000
