1.5mm Thick SS 304 SS316L 7 Inch 20 10" Hoop Eye Bolt Clear Water Fuel Oil Beer Stainless Steel Single Bag Filter Housing

The bag filter housing is a multi-purpose filter equipment with novel structure, small size, simple and flexible operation, energy saving and high efficiency, airtight work, and strong applicability. Inside the bag filter housing, the filter bag is supported by a metal mesh basket.
Availability:
Quantity:
  • 7 Inch Single Bag Filter Housing
  • DEGONG
Product Description

7 Inch Single Bag Filter Housing


Product Description

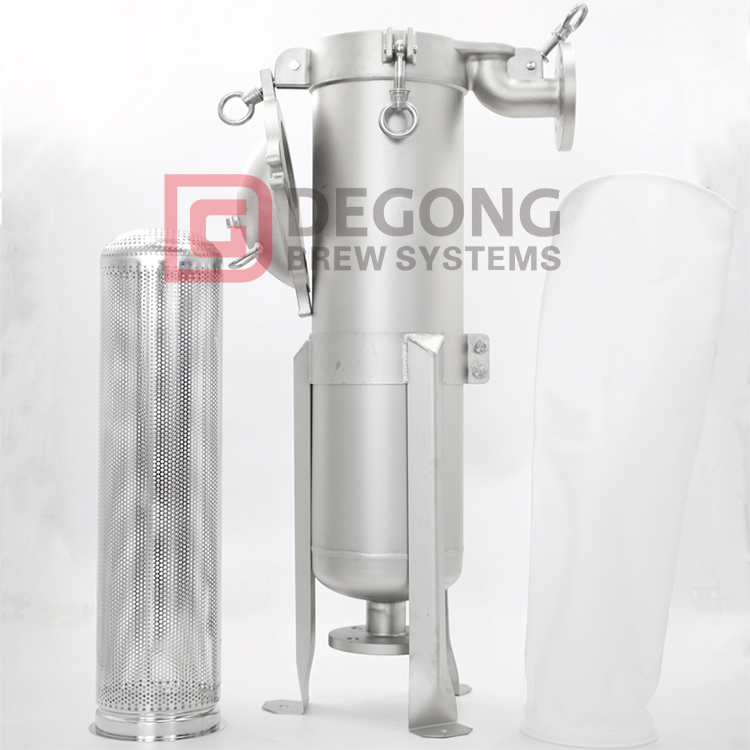

The bag filter housing is a multi-purpose filter equipment with novel structure, small size, simple and flexible operation, energy saving and high efficiency, airtight work, and strong applicability. Inside the bag filter housing, the filter bag is supported by a metal mesh basket. The liquid flows in from the inlet and flows out from the outlet after being filtered by the filter bag. Impurities are trapped in the filter bag. It can be used after replacing the filter bag.

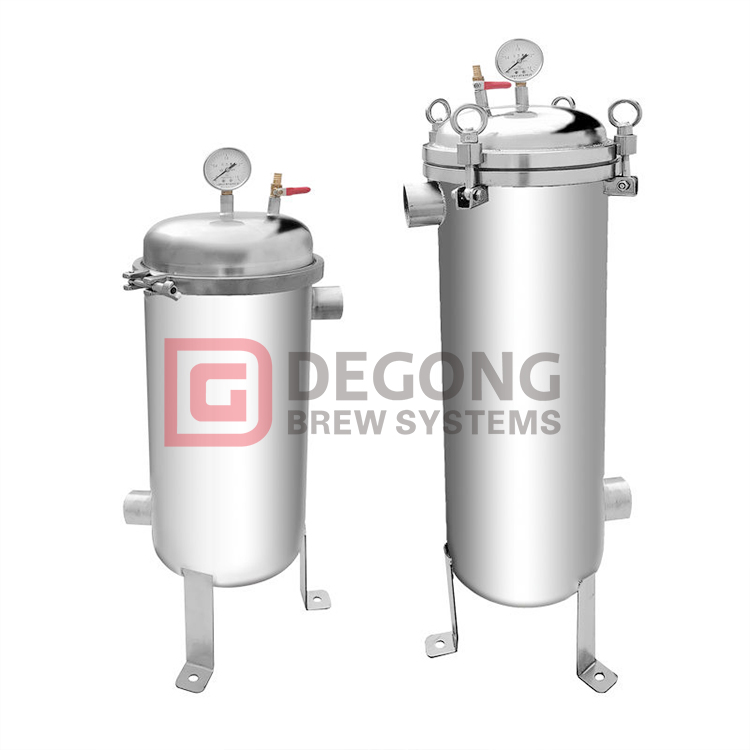

273


Hoop—10m³/h
Hoop—30m³/h
Hoop—50m³/h
Fastener
Hoop
Diameter
22CM
Height
63CM
95CM
120CM
Thick
1.5mm
Crushing Strength
0.4~0.6Mpa
4~6kg
400~600Kpa
Liner size
Outer φ180mm
(inner φ165mm)
*h200mm
Outer φ180mm
(inner φ165mm)
*h380mm
Outer φ180mm
(inner φ165mm)
*h720mm
Filter Bag Size
φ180*250mm
φ180*430mm
φ180*820mm
φ7"*10"
φ7"*17"
φ7"*32"
Maximum Flow
10m³/h
30m³/h
50m³/h


Eye Bolt—10m³/h AEye Bolt—30m³/h Eye Bolt—50m³/h
Fastener
Eye Bolt
Diameter
22CM
Height
63CM
95CM
120CM
Thick
1.5mm
Crushing Strength
0.4~0.6Mpa
4~6kg
400~600Kpa
Liner size
Outer φ180mm
(inner φ165mm)
*h200mm
Outer φ180mm
(inner φ165mm)
*h380mm
Outer φ180mm
(inner φ165mm)
*h720mm
Filter Bag Size
φ180*250mm
φ180*430mm
φ180*820mm
φ7"*10"
φ7"*17"
φ7"*32"
Maximum Flow
10m³/h
30m³/h
50m³/h


Features

  • The probability of side leakage of the filter bag is small, which effectively guarantees the filter quality

  • The bag filter has high working pressure, low pressure loss, low operating cost and obvious energy saving effect.

  • The filter accuracy of the filter bag is continuously improved, reaching 0.5pm.

  • The bag filter has the advantages of large processing capacity, small volume and large sewage capacity.

  • Based on the working principle and structure of the bag filter system, it is convenient and quick to replace the filter bag, and the filter is free of cleaning, which saves effort and time.

  • The filter bag can be reused after cleaning, saving cost.

  • The bag-type overspeed has a wide range of application, flexible use and various installation methods.

Main purpose

 filter diesel engine oil, edible oil, sewage, dyes, liquor,

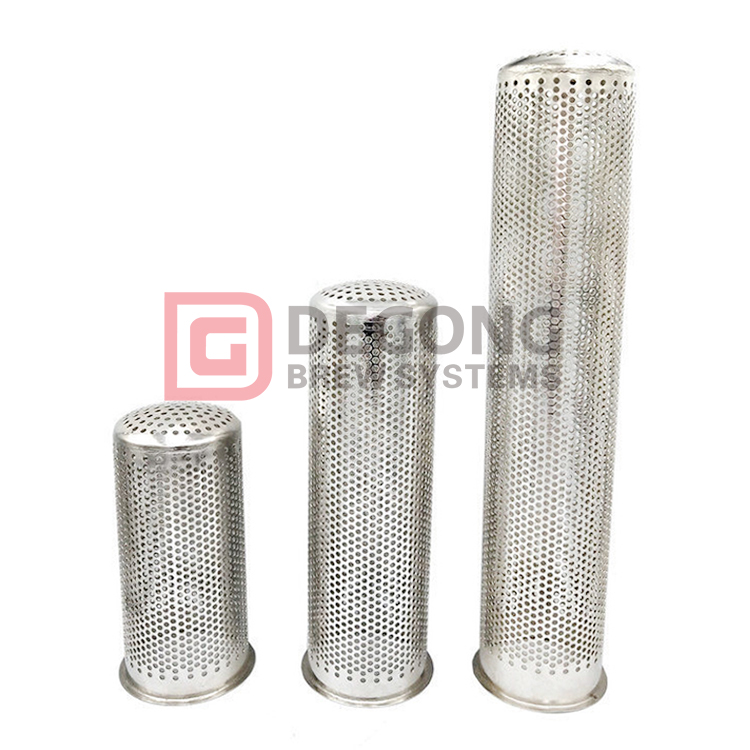

268

276


Products Show

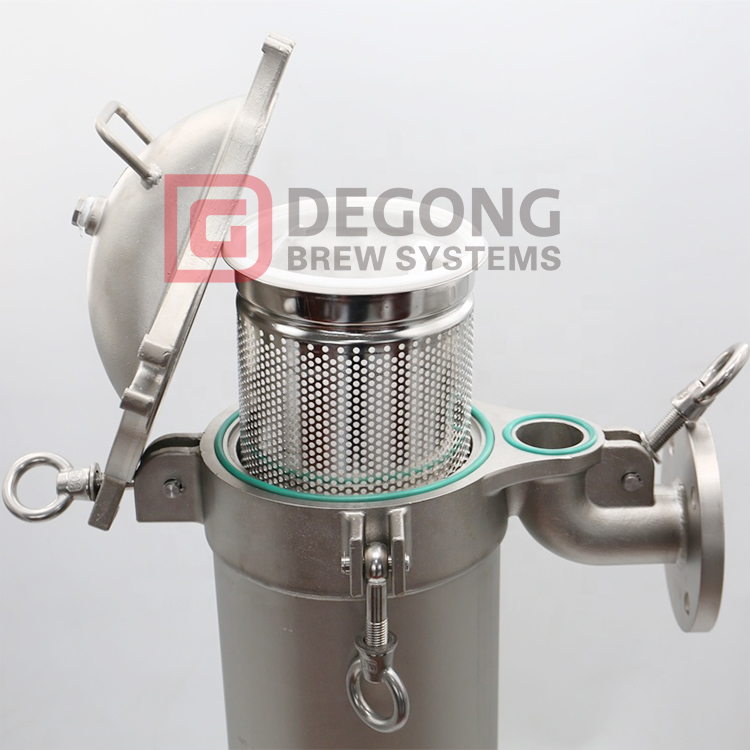

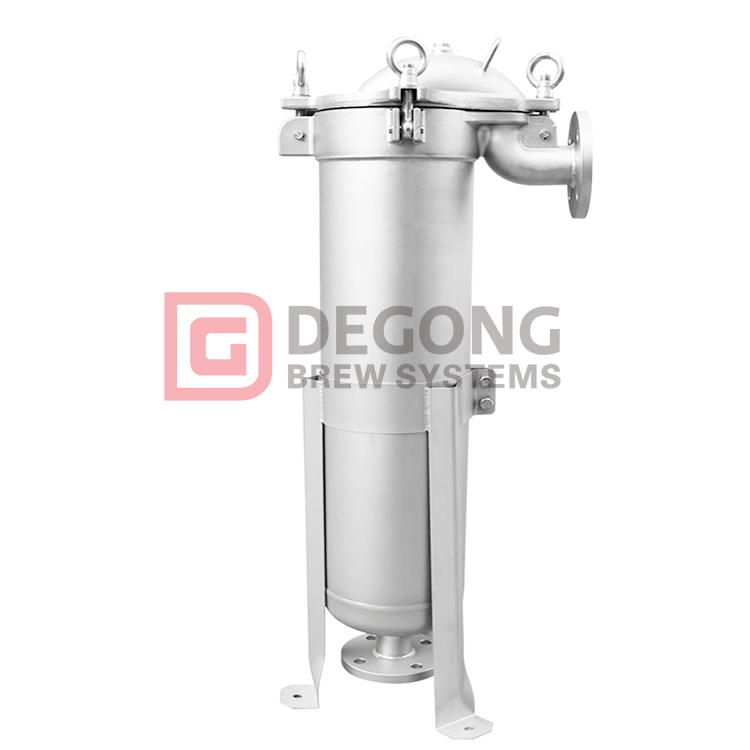

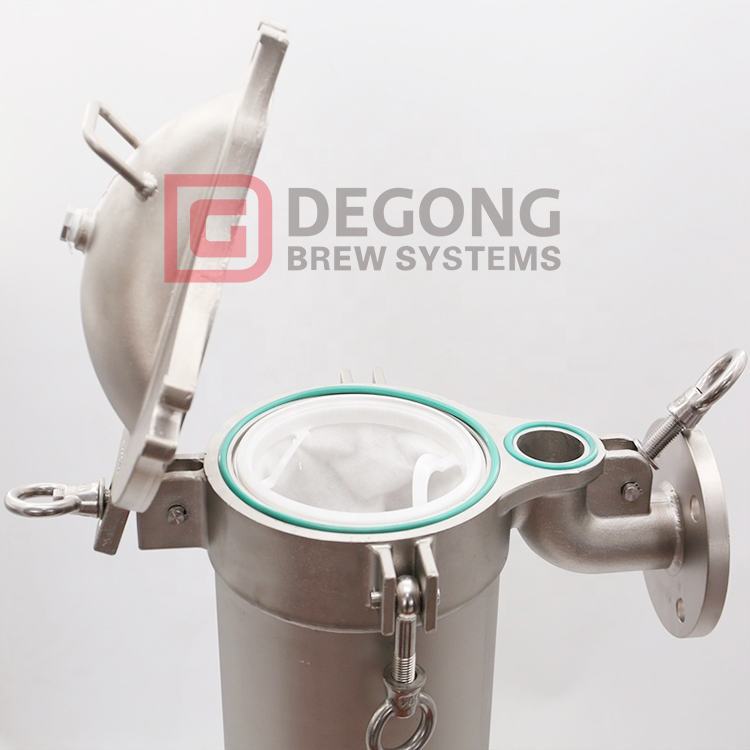

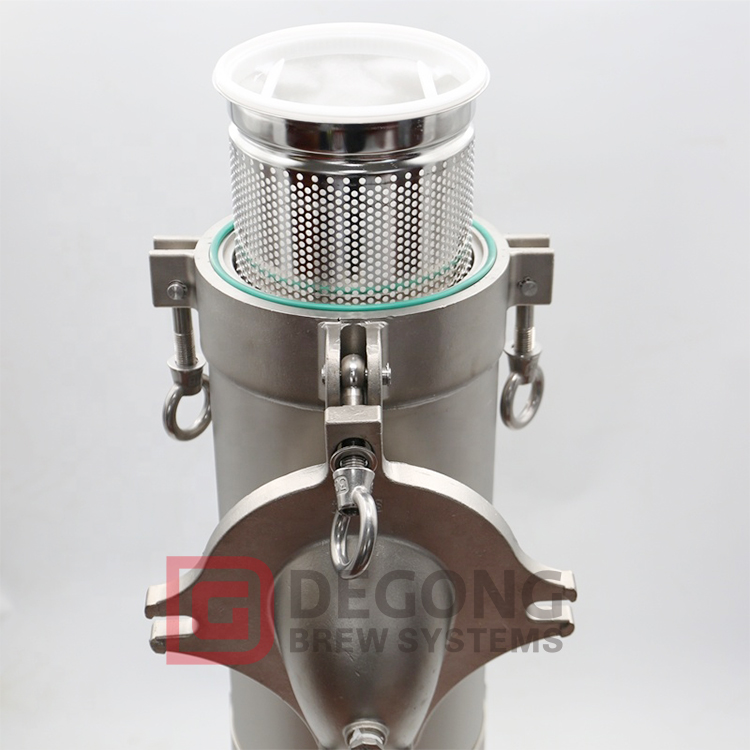

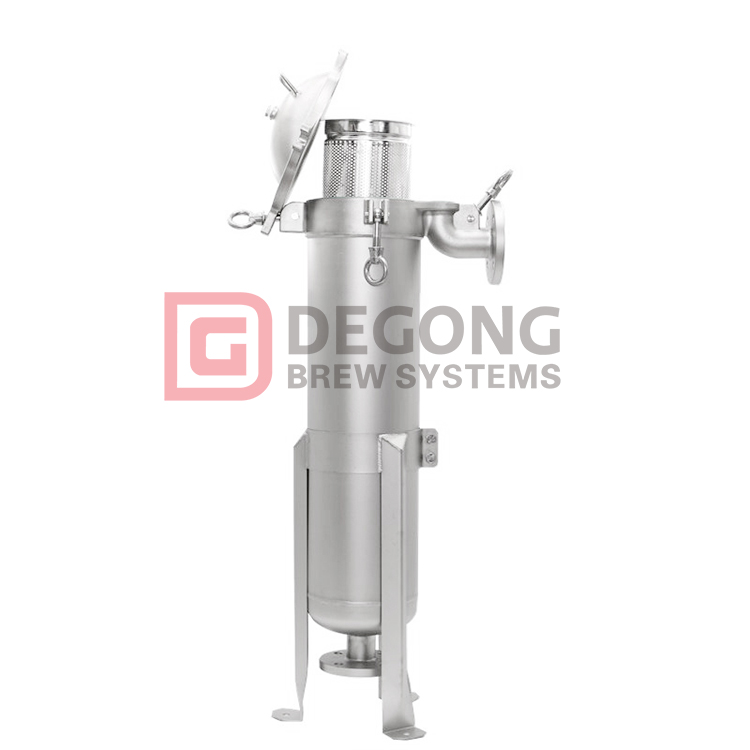

267262269271260270



We can customize product specifications according to your requirements. If you have any needs or questions, please contact us.
