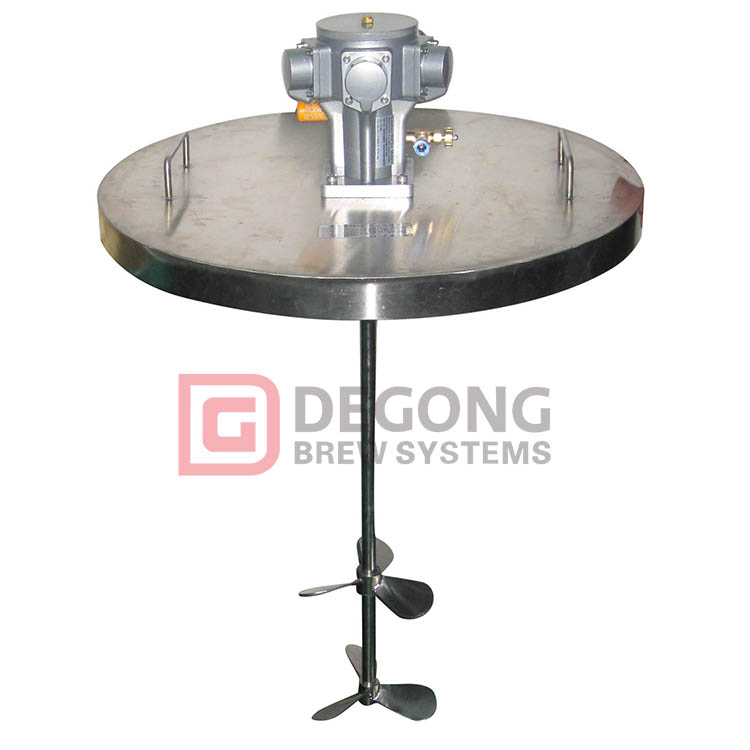

1.5 HP Air Direct Drive Drum Mixer with Stainless Lid

This model uses an air motor and is known for its sturdy structure and reliability. Air motors provide variable speeds for maximum flexibility or multiple applications. They are lighter than our electric models and reduce the possibility of explosion in a combustible environment.
Availability:
Quantity:
  • 1.5 HP Drum Mixer
  • DEGONG
Product Description

1.5 HP Drum Mixer


Motor Type Pneumatic
Motor Horsepower 1.5 HP
Motor Torque Output 20 ft.lb
Mixer speed 0-720 RPM( speed adjustable)
Air Motor requirement 80 psi compress air
Impeller Shaft stainless steel 304, 3/4″ OD, 29.5″ long
Impeller Type Marine x 2
Impeller Material Stainless Steel 304
Impeller Size 12″
Drum Lid stainless, fit 55 gallon drum


Features

  • Use compressed air as power source, 100% explosion-proof, safe and reliable.

  • Use explosion-proof pneumatic motor head; high safety; low failure rate of the motor head; stable performance.

  • The pneumatic agitator does not produce sparks or heat for a long time operation; the temperature rise is small.

  • The agitator can run at full load, and it will only slow down or stop when the load is overloaded. Once the load is removed, it will resume operation, and the mechanical failure rate is low.

  • It can work continuously and safely in harsh working conditions such as flammable, explosive, high temperature and high humidity.

  • With high starting torque, it can be started directly with load. Both start and stop are rapid.

  • A wide range of power and speed. According to the air supply pressure, the power and speed are adjustable

  • The speed can be adjusted steplessly by adjusting the air intake volume; the forward and reverse directions of the pneumatic agitator can be easily realized by changing the air intake direction

  • The connecting rod, the stirring shaft and the stirring blade are made of SS304# stainless steel; the surface is polished to ensure no rust.

  • The pneumatic agitator has a simple design and structure, and each connection part is fixed by screws; it is convenient to disassemble and assemble; it is simple and convenient to clean and maintain.

  • It can be used in conjunction with a variety of containers, and can be equipped with stainless steel lids, horizontal plates and other methods.

  • The piston type air motor has low failure rate, long service life and high customer evaluation.


Products Show

47495048

Application

Coatings, paints, inks, chemicals, solvents, chemicals, rubber, dyes, resins; food and beverages, grease, solder paste, dry powder, medicines, plastics, glue and other chemical fluid materials.


Packing details

Packed in carton, then packed in wooden box, or as required.


The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. A wide range of models can meet the various requirements of each market and ensure that you can always find a solution that suits you.


The best quality and ex-factory price Our company has always insisted: integrity management, quality first, reasonable price, and service first are the cornerstones.

You are welcome to send us inquiries and orders.
