1.5" 2" 2.5" And 3" Size Hygienic Y-type Filters

With the sanitary Y-filter, your sanitary fluid operation can effortlessly separate unwanted particles from the rest of your operation without fail.
Availability:
Quantity:
  • 1.5" 2" 2.5" And 3" Y-type Strainers
  • DEGONG
Product Description

1.5" 2" 2.5" And 3" Y-type Strainers


Use Y-filter to maintain hygienic fluid process

  • Surface finishing 180 grit ID/150 grit OD

  • Suitable for sanitary stainless steel pipe

  • Quick and easy disassembly, assembly and cleaning

  • Maximum operating pressure rating at 70 degrees Fahrenheit ambient temperature is 140 psi

This sanitary fitting has an easy-to-replace filter medium, so cleaning and disassembly are simple and easy. As far as the overall solution is concerned, efficiency is the key. This sanitary Y-type filter is no exception, and our other high-quality sanitary stainless steel accessories, sanitary valves, sanitary pipes and other product lines are no exception. We only use high-quality sanitary stainless steel accessories to provide your business with the absolute best sanitary accessories.


Specs

  • Hygienic Y type filter

  • 316L or 304 grade

  • 1.5”, 2”, 2.5” and 3” sizes

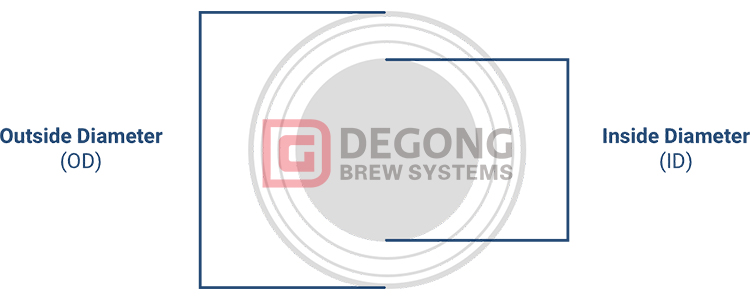

Tri-Clamp fitting and gasket size guide

220

Sanitary Size OD of Flange End ID of Tube OD of Tube
1/2″ 0.992 0.370 0.500
3/4″ 0.992 0.620 0.750
1″ 1.984 0.870 1.000
1 1/2″ 1.984 1.370 1.500
2″ 2.516 1.870 2.000
2 1/2″ 3.047 2.370 2.500
3″ 3.579 2.870 3.000
4″ 4.682 3.834 4.000
6″ 6.562 5.782 6.000
8″ 8.602 7.782 8.000


Sanitary pipe size tolerance

A pipe or pipe is a long hollow cylinder used to move fluid (liquid or gas)

For beverages and sanitary stainless steel pipes in the brewery, food, dairy and pharmaceutical industries, they must be made of 304L and 316L, and the inner diameter must be polished to 20u-in Ra/OD to 30u-in Ra, following ASTM A-269 and other standards

Size OD

Wall Thickness

Outside Diameter

Length

Wall

1" (25.4)

0.065" (1.65)/0.049" (1.25)

+/-0.005 (0.13)

+1/8" (3.18)

- 0 +/-10.0%

1-1/2" (38.1)

0.065" (1.65)/0.049" (1.25)

+/-0.008 (0.20)

+1/8" (3.18)

- 0 +/-10.0%

2" (50.8)

0.065" (1.65)/0.049" (1.25)

+/-0.008 (0.20)

+1/8" (3.18)

- 0 +/-10.0%

2-1/2" (63.5)

0.065" (1.65)

+/-0.010 (0.25)

+1/8" (3.18)

- 0 +/-10.0%

3" (76.2)

0.065" (1.65)

+/-0.010 (0.25)

+1/8" (3.18)

- 0 +/-10.0%

4" (101.6)

0.083" (2.11)

+/-0.015 (0.38)

+1/8" (3.18)

- 0 +/-10.0%


Products Show

214215213216217

Packing details

Packed in carton, then packed in wooden box, or as required.


The best quality and ex-factory price Our company has always insisted: integrity management, quality first, reasonable price, and service first are the cornerstones.
