1″-4″ DIN Sanitary Butterfly Valve with Welded End | DIN Valves

When the butterfly valve is in the fully open position, the thickness of the butterfly plate is the only resistance when the medium flows through the valve body, so the pressure drop generated by the valve is small, so it has better flow control characteristics.
Availability:
Quantity:
  • DEGONG-1″-4″
  • DEGONG
Product Description

1″-4″ DIN Butterfly Valve


Specifications
Size 1″-4″/DN25-100
Working temperature EPDM(-40 ~ +120°C)
Working pressure 0-10 bar (0-145psi)
Body Material 316L/304
Sealing material EPDM,VMQ,FPM
Connection Tri-clamp, Welded, thread, flange
Finishing Polished
Standards DIN, 3A,SMS, IDF, RJT, BPE, ISO

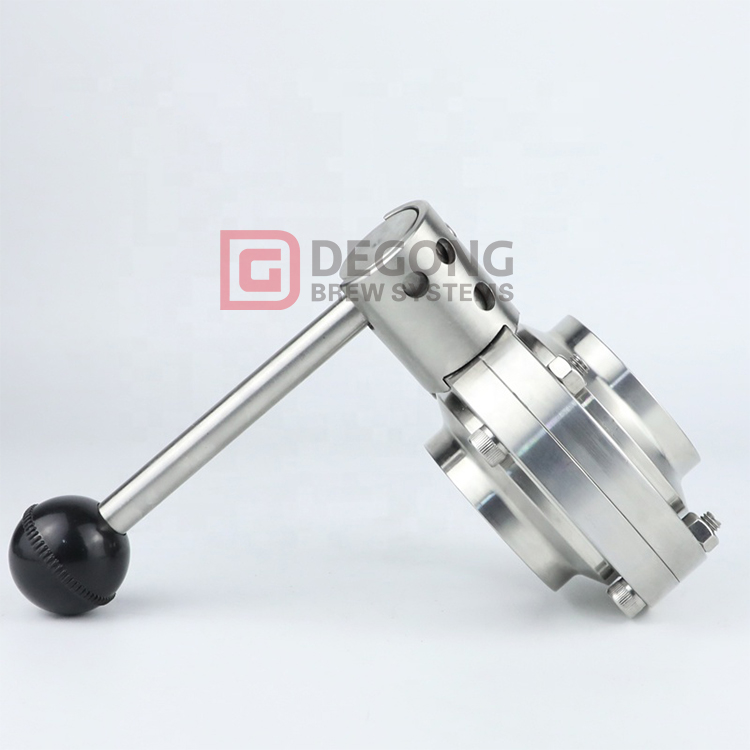

157

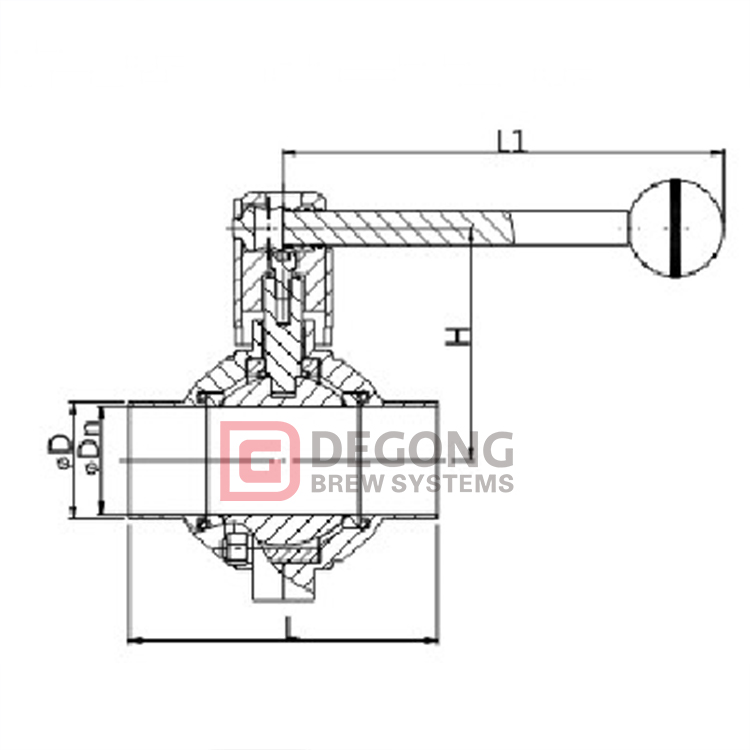

Product parameter

162

SIZE φDn φD φD1 L L1 H K×K
1/2″ 9.4 12.7 25.2 70 143 60 10×10
3/4″ 15.8 19.1 25.2 70 143 60 10×10
1″ 22.1 25.4 50.5 85 143 68 10×10
1.25″ 28.5 31.8 50.5 85 143 68 10×10
1.5″ 34.8 38.1 50.5 100 143 75 10×10
2″ 47.5 50 64 110 143 85 10×10
2.5″ 60.2 63.5 77.5 125 143 107 10×10
3″ 72.9 76.2 91 135 186 117 11×11
4″ 97.4 101.6 119 170 215 140 14×14

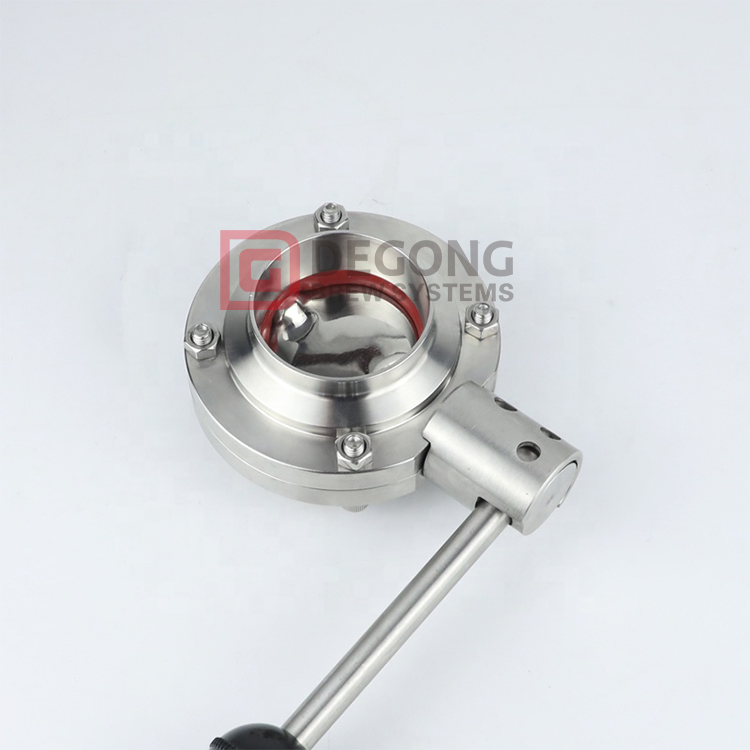

160

Application

  • Food

  • Drinks

  • Wine

  • Dairy products

  • Pharmaceutical

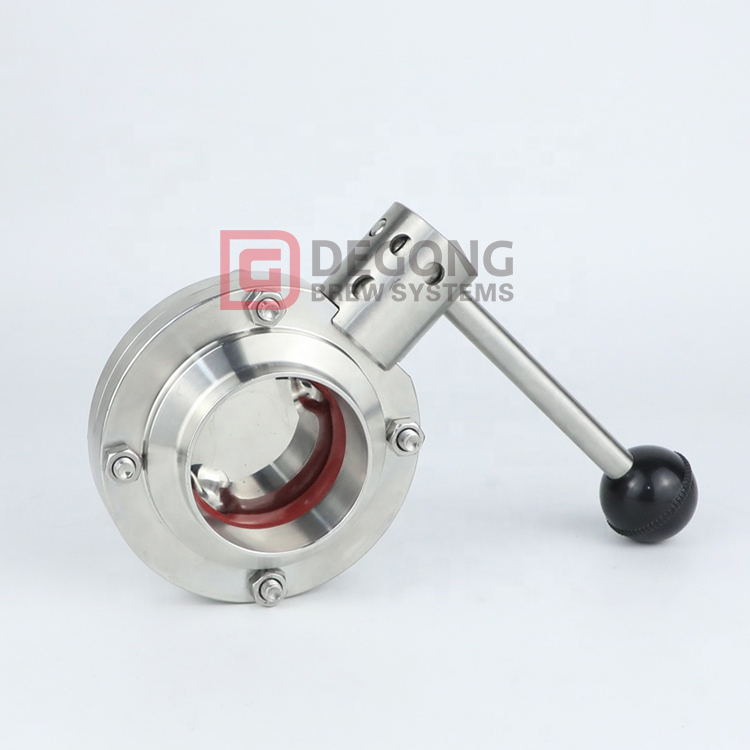

158

Contact us

We can customize product specifications according to your requirements. If you have any needs or questions, please contact us.
