DEGONG-1/4"~4"
DEGONG

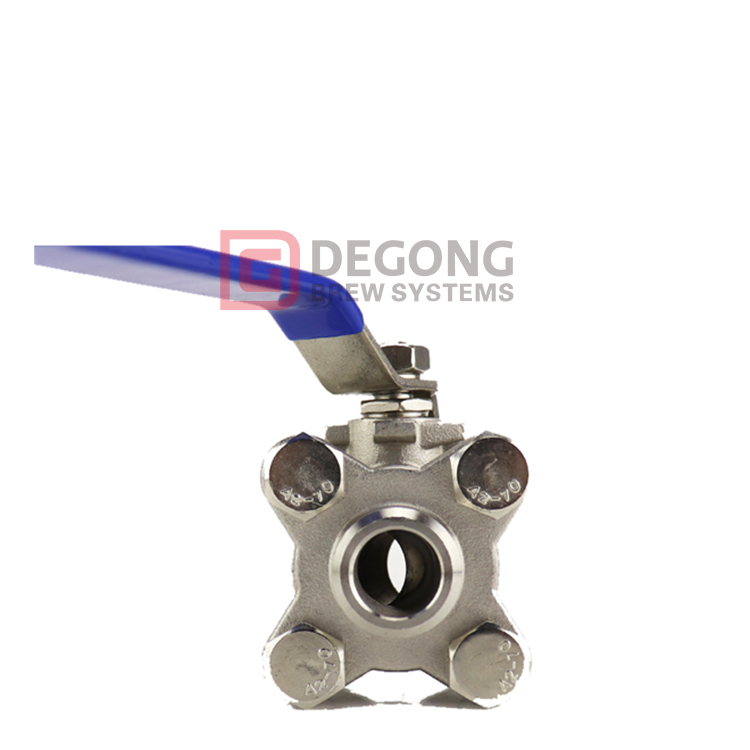

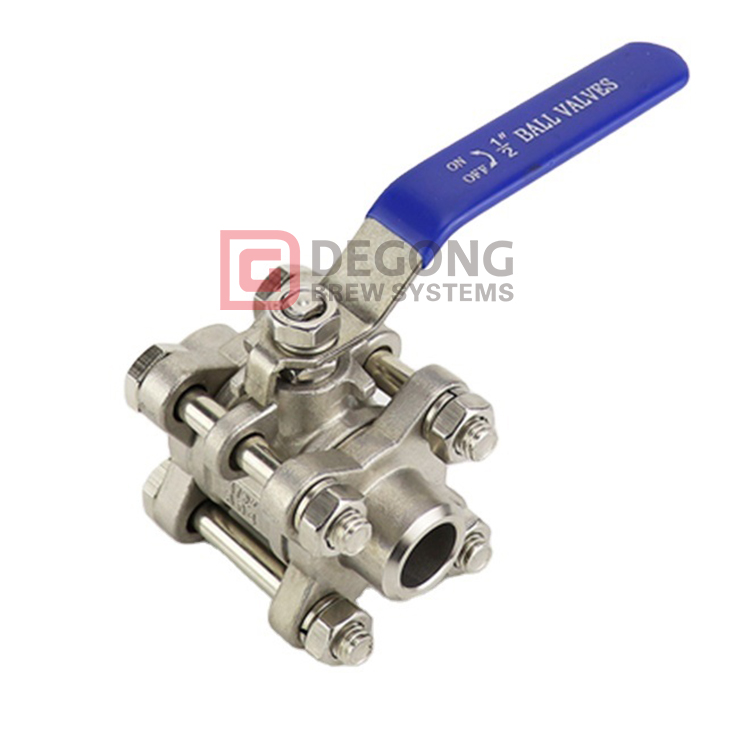

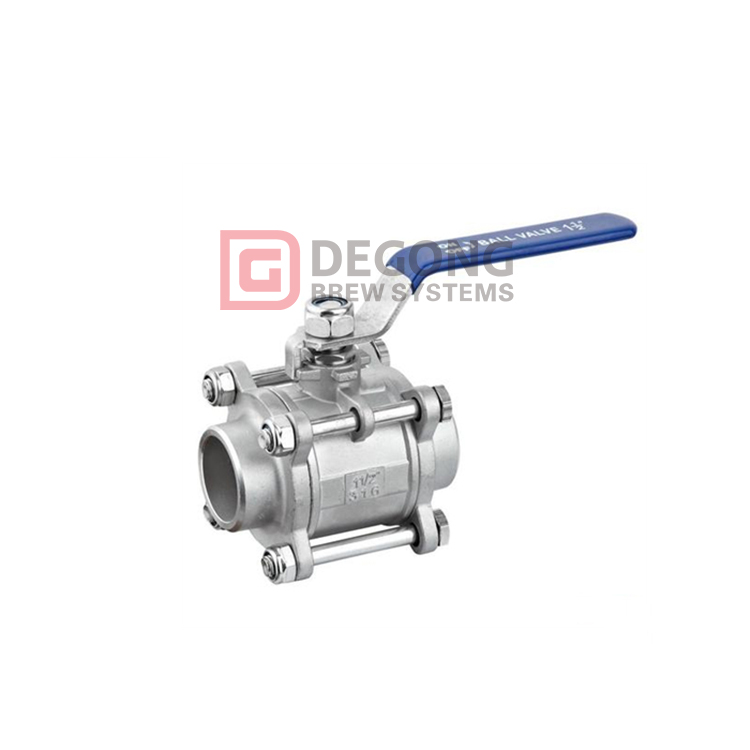

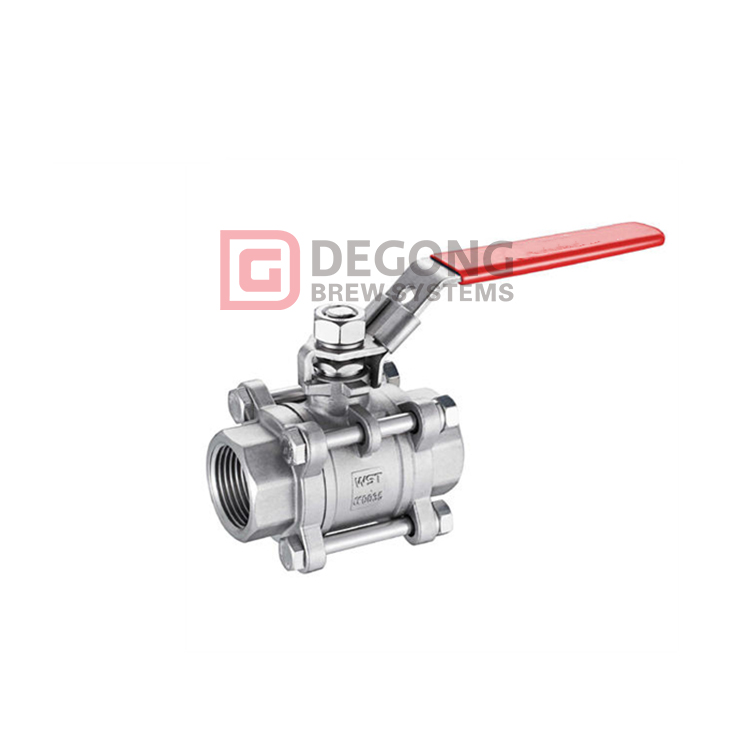

1/4"~4" Butt Weld End Ball Valve
| Feature |
Full mouth, 1/4"~4" (DN8~DN100)
WP: 1000 WOG (PN63)
WT: -20 ℃~200℃ (-4℉~392℉)
Investment casting
Explosion-proof stem
Anti-static device (optional)
Lock device
| Material |
| PARTS | MATERIAL | |
| SEAT | RTFE/PTFE/CTFE | |
| SEAL | PTFE | |
| PACKING | ||
| THRUST WASHER | ||
| SPRING WASHER | AISI 304 | |
| STEM NUT | ||
| BOLT | ||
| NUT | ||
| SPRING WASHER | ||
| HANDLE | STAINLESS STEEL | |
| LOCKING DEVICE | ||
| HANDLE SLEEVE | PVC | |
| Product parameter |
| DN | d | d1 | D | L | L1 | L2 | H | H1 | W | S | P | Torque (N-M) | Weight(kg) |
| 8 | 8 | 12.7 | 13.5 | 64.5 | 35.5 | 21.5 | 56 | 9.5 | 102 | 5 | 5/16"UNC | 4.5 | 0.4 |
| 10 | 12.7 | 12.7 | 17.5 | 64.5 | 35.5 | 21.5 | 56 | 9.5 | 102 | 5 | 5/16"UNC | 4.5 | 0.4 |
| 15 | 15 | 15 | 22 | 66 | 38 | 24 | 57 | 10.5 | 102 | 5 | 5/16"UNC | 5 | 0.5 |
| 20 | 20 | 20 | 27 | 82 | 43 | 28 | 66 | 13.5 | 120.5 | 6.5 | 3/8"UNC | 8 | 0.7 |
| 25 | 25 | 25 | 34 | 95 | 54 | 35 | 76 | 15.5 | 158.5 | 8 | 7/16"UNC | 10 | 1.1 |
| 32 | 32 | 32 | 42.5 | 111.2 | 65 | 45 | 81 | 15.5 | 158.5 | 8 | 7/16"UNC | 14 | 1.7 |
| 40 | 38 | 38 | 48.5 | 130.6 | 75 | 55 | 98 | 17.5 | 188 | 9 | 1/2"UNC | 19 | 2.4 |
| 50 | 50 | 50 | 61 | 151 | 88 | 66 | 106 | 17.5 | 188 | 9 | 1/2UNC | 23 | 3.6 |
| 65 | 65 | 65 | 77 | 185 | 114 | 86 | 138 | 33 | 245 | 12 | 3/4"UNC | 31 | 8.9 |
| 80 | 80 | 80 | 90 | 212 | 132 | 100 | 154 | 33 | 290 | 12 | 3/4"UNC | 50 | 14.9 |
| 100 | 100 | 100 | 115 | 235 | 158 | 125 | 178 | 42 | 320 | 16 | 1"UNC | 60 | 23.4 |
unit:mm
| NPS | d | d1 | D | L | L1 | L2 | H | H1 | W | S | P | Torque (N-M) | Weight(kg) |
| 1/4" | 0.31 | 0.5 | 0.53 | 2.54 | 1.4 | 0.85 | 2.2 | 0.37 | 4.02 | 0.2 | 5/16"UNC | 39.8 | 0.9 |
| 3/8" | 0.5 | 0.5 | 0.69 | 2.54 | 1.4 | 0.85 | 2.2 | 0.37 | 4.02 | 0.2 | 5/16"UNC | 39.8 | 0.9 |
| 1/2" | 0.59 | 0.59 | 0.87 | 2.6 | 1.5 | 0.94 | 2.24 | 0.41 | 4.02 | 0.2 | 5/16"UNC | 44.3 | 1.1 |
| 3/4" | 0.79 | 0.79 | 1.06 | 3.23 | 1.69 | 1.1 | 2.6 | 0.53 | 4.74 | 0.26 | 3/8"UNC | 70.8 | 1.5 |
| 1" | 0.98 | 0.98 | 1.34 | 3.74 | 2.13 | 1.38 | 2.99 | 0.61 | 6.24 | 0.31 | 7/16"UNC | 88.5 | 2.4 |
| 1-1/4" | 1.26 | 1.26 | 1.67 | 4.38 | 2.56 | 1.77 | 3.19 | 0.61 | 6.24 | 0.31 | 7/16"UNC | 123.9 | 3.7 |
| 1-1/2" | 1.5 | 1.5 | 1.91 | 5.14 | 2.95 | 2.17 | 3.86 | 0.69 | 7.4 | 0.35 | 1/2"UNC | 168.2 | 5.3 |
| 2" | 1.97 | 1.97 | 2.4 | 5.94 | 3.46 | 2.6 | 4.17 | 0.69 | 7.4 | 0.35 | 1/2UNC | 203.6 | 7.9 |
| 2-1/2" | 2.56 | 2.56 | 3.03 | 7.28 | 4.49 | 3.39 | 5.43 | 1.3 | 9.65 | 0.47 | 3/4"UNC | 274.4 | 19.6 |
| 3" | 3.15 | 3.15 | 3.54 | 8.35 | 5.2 | 3.94 | 6.06 | 1.3 | 11.42 | 0.47 | 3/4"UNC | 442.5 | 32.8 |
| 4" | 3.94 | 3.94 | 4.53 | 9.25 | 6.22 | 4.92 | 7.01 | 1.65 | 12.6 | 0.63 | 1"UNC | 531 | 51.6 |
unit:in
| Packaging and delivery |
We usually use woven bags or blankets to pack ball valves. We also use plywood boxes or pallets.
| Contact us |
We can customize product specifications according to your requirements. If you have any needs or questions, please contact us.
