1/4-2 Inch DN8-15 Sanitary Union Sample Valve Welded/threaded/clamp Fluid Parts Sterile Sample Valve

A sampling valve is a valve used to obtain a sample of the medium in a pipeline or equipment. In many occasions that require frequent chemical analysis of the medium sample, a special sampling valve is often used. According to the working principle or performance of sampling, sampling valves are mainly divided into three types, including double-opening valves, flanged clamp valves, and sampling valves with insulation jackets.
Availability:
Quantity:
  • 1/4-2 inch
  • DEGONG
Product Description

application:

Mainly used to extract samples from tanks or pipelines. It can also be assembled on the bottom of the tank or pipe to drain away the residue.

working principle:

When the hand wheel is closed, the valve shaft and gasket rise. At this time, the valve is opened for sampling. Turn the handwheel counterclockwise, the valve shaft and sealing ring will drop, and the valve will be closed at this time.

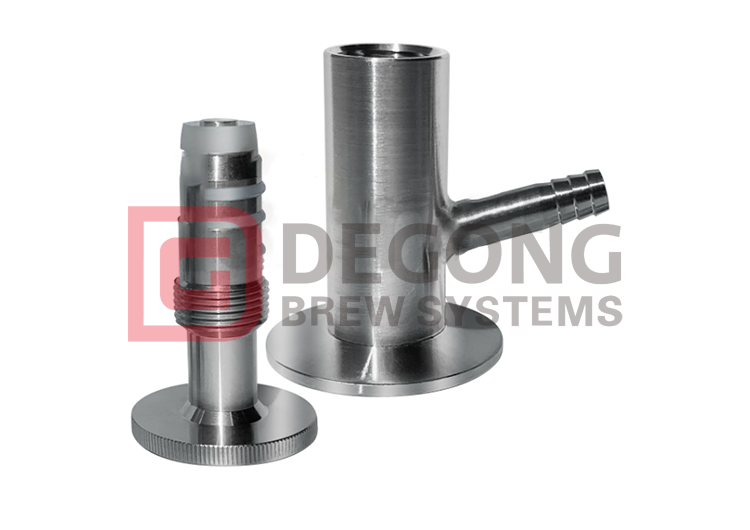

3433

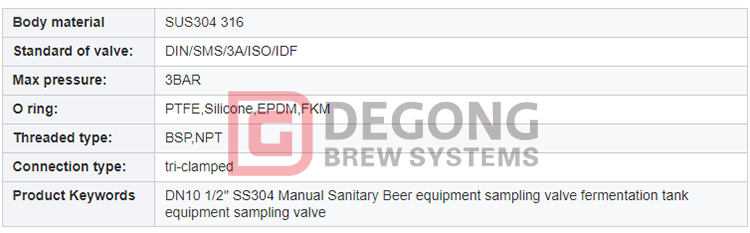

Specification :

  • Name: Sanitary clamp sampling valve.

  • Connection: clamping, threading, welding.

  • Material: AISI304, AISI316L.

  • Application: dairy products, beverages, food, beer, pharmacy, biotechnology, cosmetics, etc.


36


Product classification editing Voice:

  • Double open valve:

    The double-opening valve is a commonly used sampling valve, usually composed of two connected ball valves, and is characterized by safe and stable sampling.

  • Flange Clip Valve:

    The principle of the flange clamp valve is to seal through the cone on the top of the valve stem and the cone hole of the valve seat. When sampling, use the handwheel to raise the position of the valve stem and separate the valve stem from the cone hole. The medium can then flow into the external sampling vessel.

  • Sampling valve with insulation jacket


37

Degong products are sold all over the world. If you are interested in our sampling valves, please contact us!
