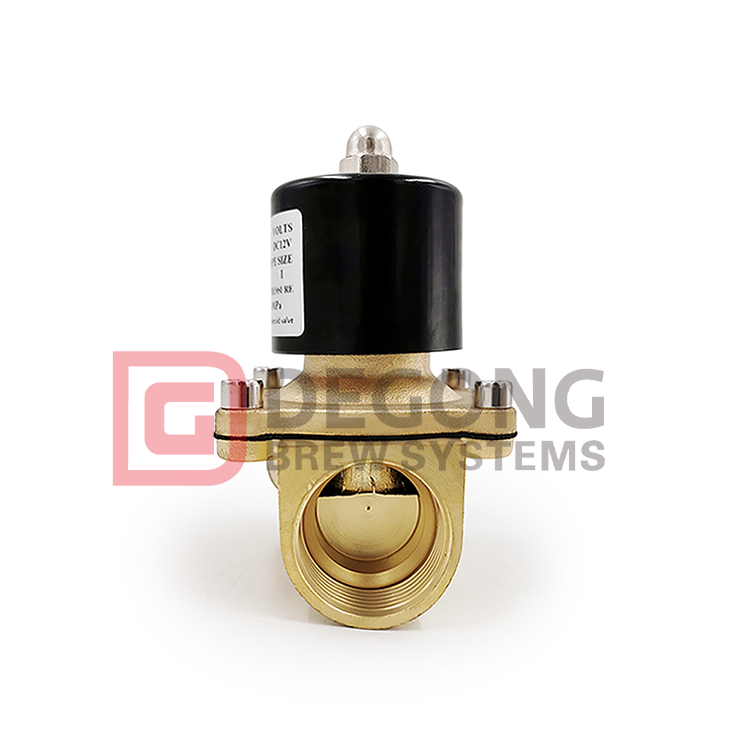

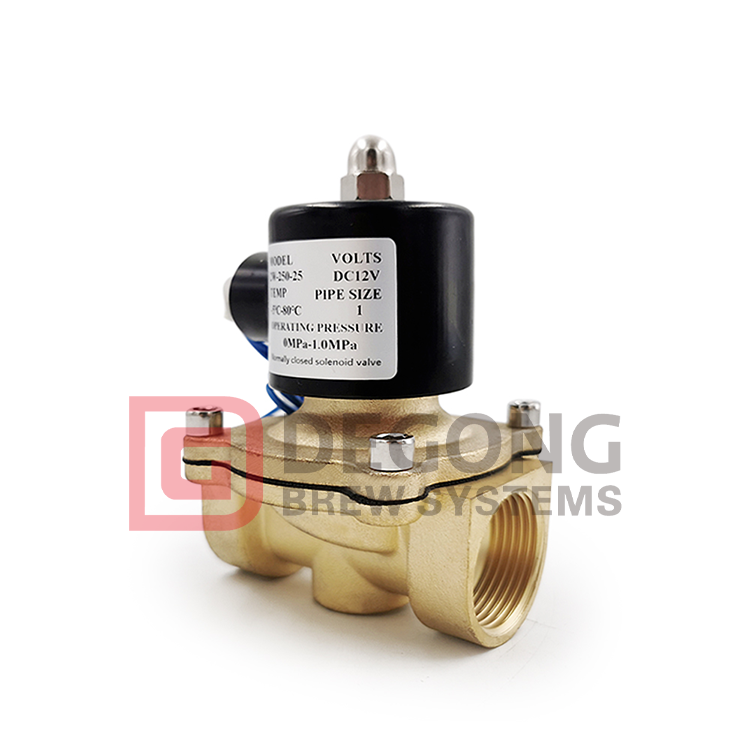

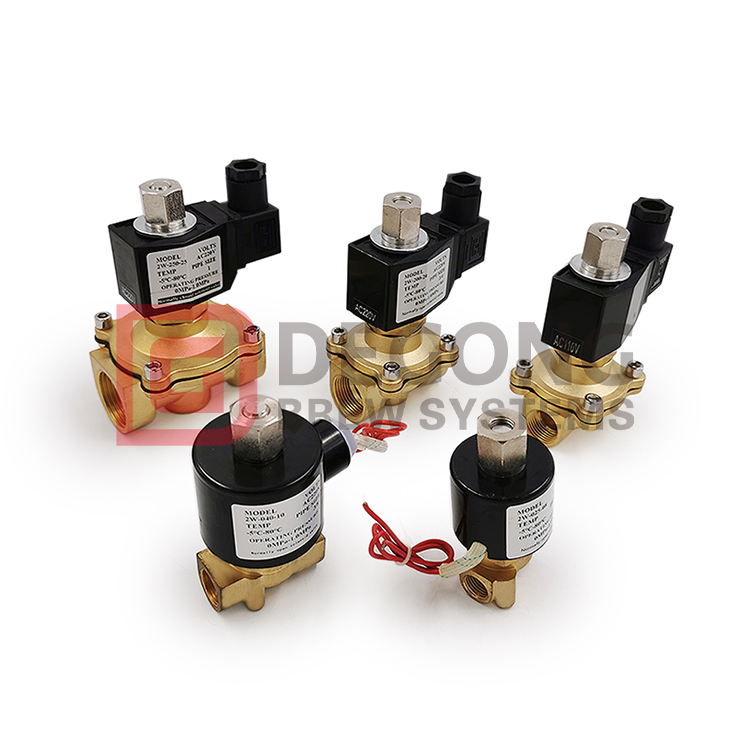

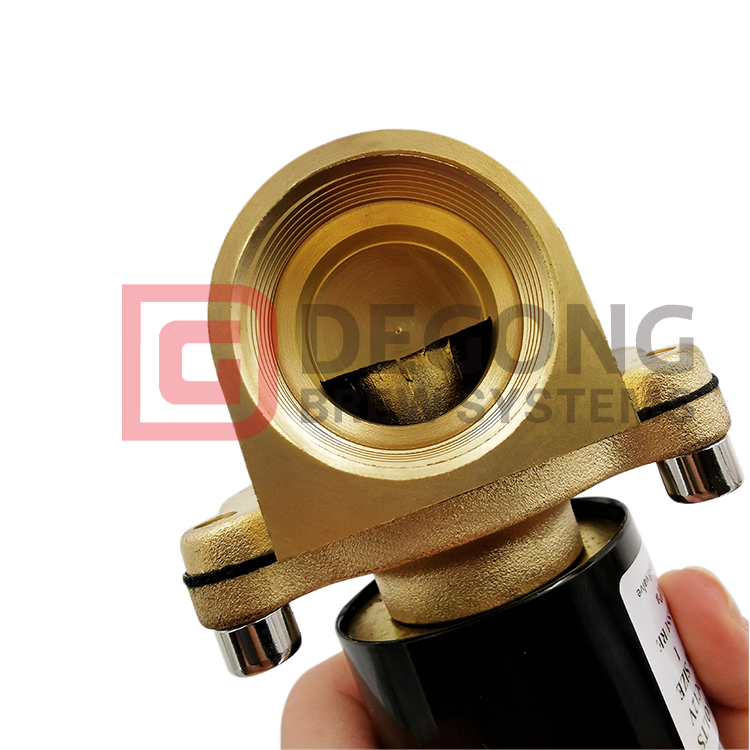

1/2inch DC 24v Automatic Drain Valve High Pressure Solenoid Valve Brass Can Be Used for Brewing Equipment

The operating principle of the solenoid valve normally open two-position three-way single electronically controlled solenoid valve: When the coil is energized, the gas circuit is disconnected. Once the coil is de-energized, the gas circuit will be connected, which is also "jogging".
Availability:
Quantity:
  • 24v DC/220v AC
  • DEGONG
Product Description


  • Material of main parts

  • Seal: NBR (nitrile rubber)

  • Valve body: brass

  • Diaphragm assembly: brass

  • Use medium: air, inert gas, water, oil, hydraulic fluid, petroleum, etc.

  • Working pressure: 0.0 ~ 1.0MPa

  • Fluid temperature: NBR (nitrile rubber): -10℃~80℃

  • Connection size: 3/8″, 1/2″, 3/4″, 1″, 11/4″, 11/2″, 2″G thread

  • Optional voltage: DC: 12V, 24V AC: 220/230V 110/120V 24V 50/60HZ

  • Diameter (mm): DN12, 15, 20, 25, 32, 40, 50


124125126


benefit:

Built-in overlapping or parallel solenoid valve control, advanced technology and reliable action.

The main valve diaphragm has the ability to resist corrosion and low temperature of -40°C.

The special stainless steel magnetic material will never rust or produce remanence.

Class F circuit with good insulation.

Connection size: 4-M8 (flange connection) aperture: 70mm-4-R10

4--M6 (small flange connection) bore diameter: 57mm -4-R8.5.


128127

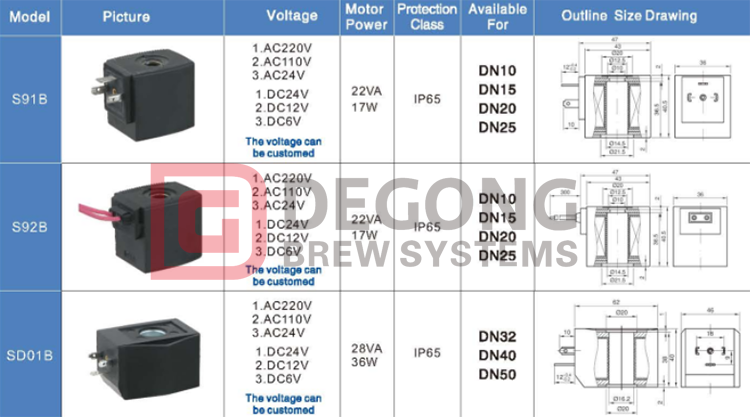

详情规格


DEGONG has the most professional production team and sophisticated solenoid valve raw materials for production. If you are interested in our products, please contact us!
