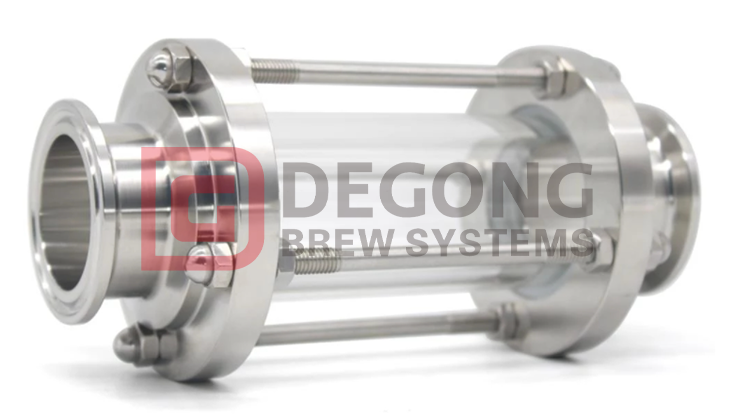

1/2in-6in Welded Tubular Sight Glass for Tank 304 316L Sanitary Stainless Steel In-line Tempered Sight Glass

Welded through sight glasses are widely used in important accessories in pipelines and equipment. It can be used in high temperature, strong corrosive, easily poisoned, dangerous, and easy to crystallize chemical towers to ensure their safe production.
Availability:
Quantity:
  • 1/2in-6in
  • DEGONG
Product Description

11

application:

The direct-view mirror is composed of a stainless steel frame and tempered glass. Through it, in the food, cosmetics, medicine, fine chemical and other industries, the operator can clearly and accurately observe the flow of liquid.

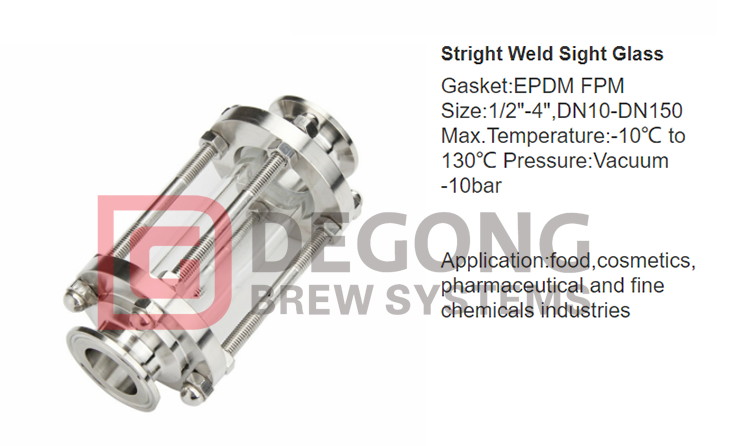

Technical specifications:

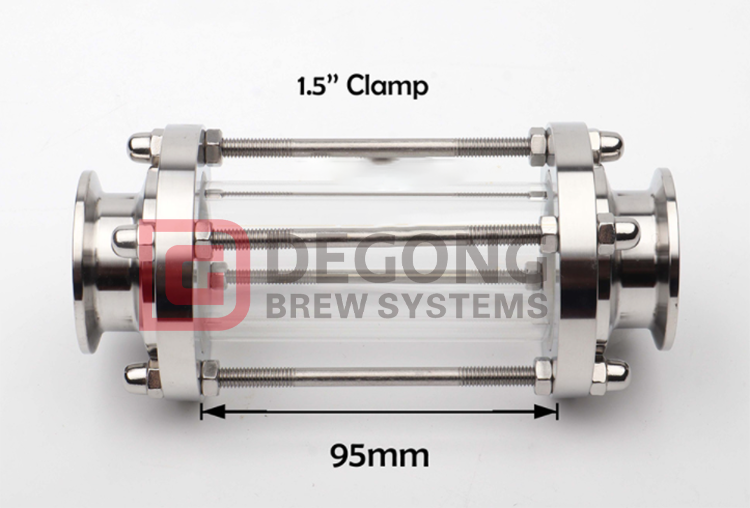

Size: DN25/1"-DN150/6"

Full bore design

Mesh protective cover

Can be used vertically or horizontally

Working temperature: -10℃-120℃

Maximum pressure: 10bar

Connection method: clamp, welding, thread, DIN SMS RJT ISO IDF ASME BPE DIN 11864

1076

Introduction:

Sanitary direct-view mirrors are mainly used in beverage, beer, dairy, food, can and winery industries. Our sanitary in-line sight glasses meet or exceed the 3-A standard, and the inner and outer diameters of the tube are mechanically polished.



84

Structural features:

  • 1. Integral valve body, double stem structure, reasonable appearance layout.

  • 2. It adopts the form of J44W-220R DN15 high pressure shut-off valve, conical surface seal, and PTFE packing seal.

  • 3. The valve cover is connected with the valve body by bolts, which is convenient for disassembly and assembly.

  • 4. The valve body is welded to the tower container to increase the temperature of the valve body and prevent liquid crystallization for the second time.

212

If you want to know more about our products, you can contact us! DEGONG is a serious and responsible company that guarantees quality. You will not be disappointed by choosing our welding sight glass.
