1/2" -4" Stainless Steel NPT Ball Valve | Sanitary Ball Valve

The sanitary ball valve is opened by turning the handle connected to the ball inside the valve. There is a hole or port in the middle of the ball. When the ports are aligned with both ends of the valve, flow will occur. When the valve is closed, the hole is perpendicular to both ends of the valve, and the flow is blocked.
Availability:
Quantity:
  • DEGONG-1/2" -4"
  • DEGONG
Product Description

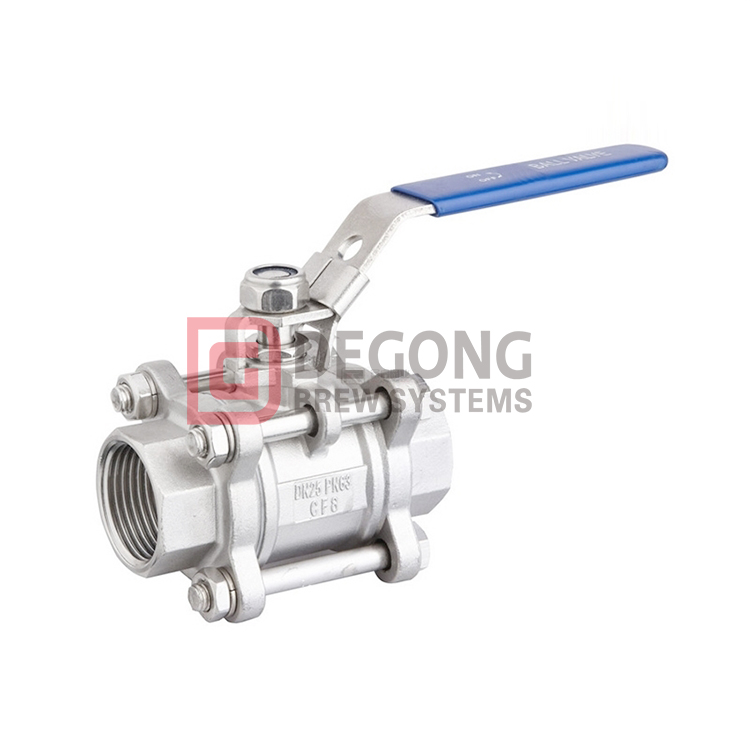

1/2" -4" NPT Ball Valve


Product parameter
Name Body Ball Gland Seat sealing Stem
Material    304     304     PTFE 304 304
DN NPS G Φd L W
15 1/2'' 1/2 15 75 100
20 3/4'' 3/4 20 80 120
25 1'' 1 25 90 140
32 1  1/4'' 1 1/4 32 110 140
40 1  1/2'' 1 1/2 38 120 180
50 2'' 2 50 140 200
65 2  1/2'' 2 1/2 64 160 220
80 3'' 3 78 180 240
100 4'' 4 100 215 300

139

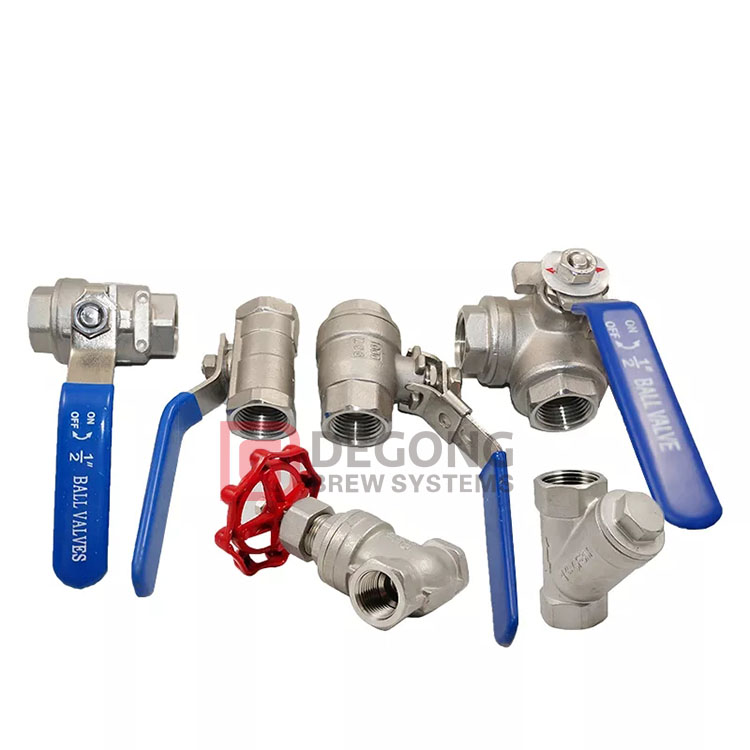

Product Details

Type: Ball valve

Size: 1/2″ – 4″

End type: three clamps, thread, butt welding, flange

Material: 304-316L

Operation: manual, pneumatic, electric

171

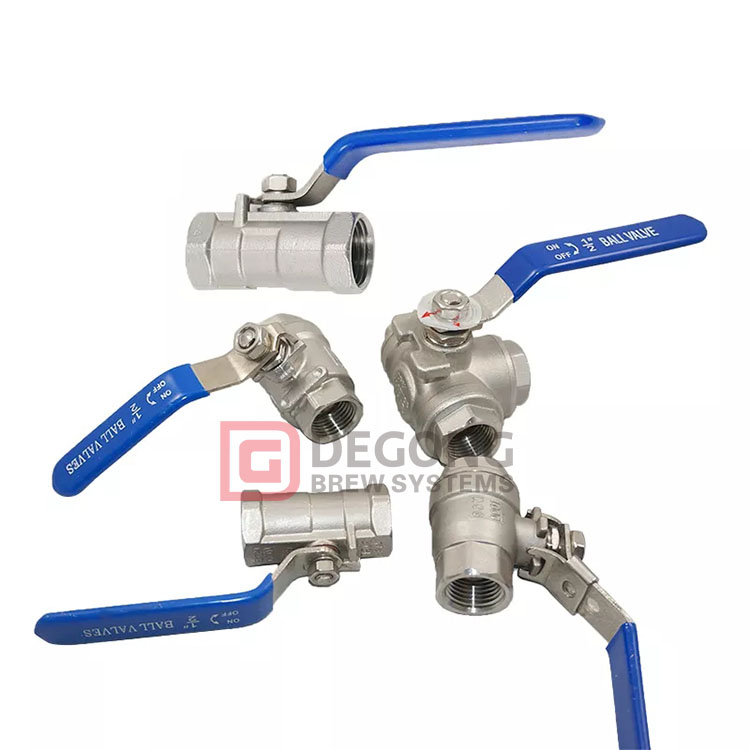

Application

The sanitary ball valve is made of high-quality stainless steel, which can meet the special requirements of various media in the food and biopharmaceutical fields. The crafts are smooth, seamless, and automatically emptied, and are also very suitable for steam cleaning.

This stainless steel sanitary ball valve is suitable for industrial fields such as dairy products, food, beer, beverages, pharmaceuticals, and cosmetics.

172

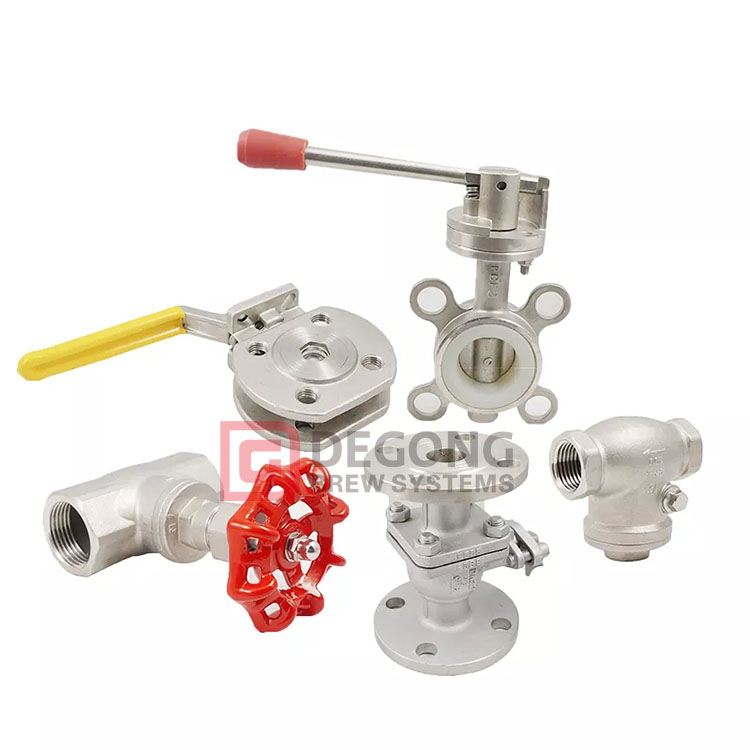

Advantage

  • Sanitary ball valve has many advantages such as detachable connection, simple structure and convenient maintenance;

  • Ball valve rubber seals and valve plates are high-quality parts to ensure performance and service life;

  • The valve body and disc materials can be provided according to your requirements, such as AISI 304 or AISI 316L, 304L and 316 materials.

170

Contact us

We can customize product specifications according to your requirements. If you have any needs or questions, please contact us.
