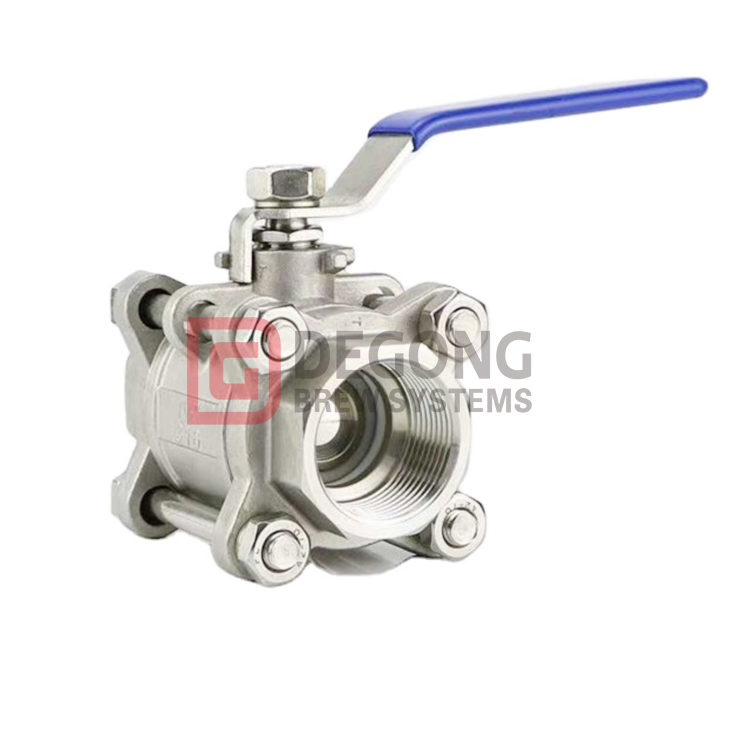

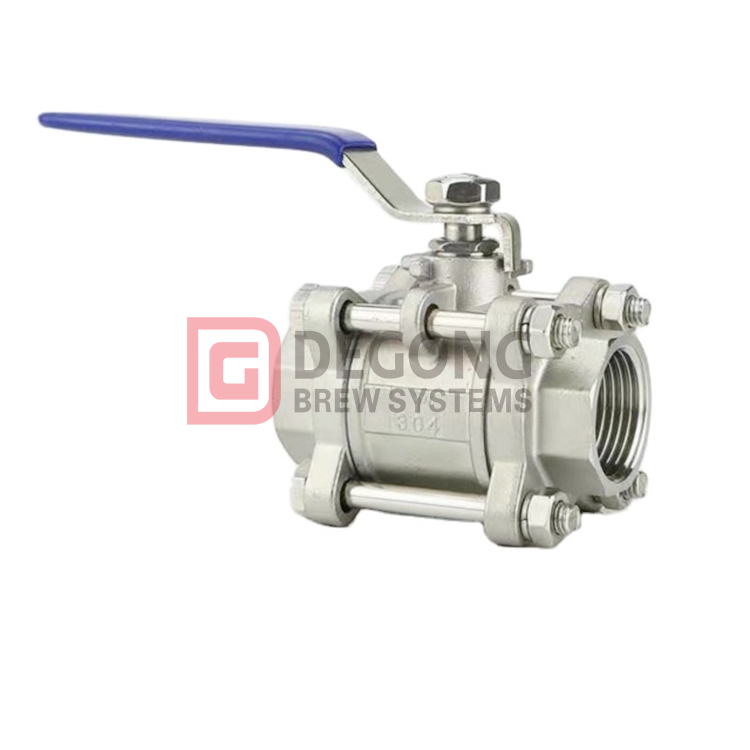

1.0" Sanitary Stainless Steel Three-piece Ball Valve DEGONG

Three-piece ball valve and gate valve are the same type of valve. The difference is that its closing part is a sphere. The sphere rotates around the center line of the valve body to achieve opening and closing. The ball valve is mainly used to cut off, distribute and change the flow direction of the medium in the pipeline. The three-piece ball valve is a new type of valve that is widely used.
Availability:
Quantity:
  • DEGONG-1.0"
  • DEGONG
Product Description

1.0 Three-piece Ball Valve


Key words 1.0" Sanitary Stainless Steel Three-piece Ball Valve DEGONG
Valve Body Material SS304 or SS316L
Seal Material Full cavaity seat PTFE,
Max. Working Pressure 8 Bar
Max. Working Temperature 140 degree C
Norminal tube size 1/2" - 4"
connection Weld,Clamp
Operated Manual/Automatic
Handle details with lock or mouting pad
139

Advantage
  • The fluid resistance is small, and its resistance coefficient is equal to that of a pipe section of the same length.

  • Simple structure, small size and light weight.

  • It is tight and reliable. The sealing surface material of the ball valve is widely used in plastics and has good sealing performance. It has also been widely used in vacuum systems.

  • Convenient operation, rapid opening and closing, only need to rotate 90° from fully open to fully closed, which is convenient for remote control.

  • Convenient maintenance, simple structure of the ball valve, generally movable sealing ring, easy to disassemble and replace.

  • When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium, and the medium will not cause erosion of the valve sealing surface when the medium passes.

  • It has a wide range of applications, with a diameter ranging from a few millimeters to a few meters, and can be applied from high vacuum to high pressure.

140

Working principle

The working principle of the ball valve is to make the valve unblocked or blocked by rotating the valve stem. The ball valve switch is light, small in size, can be made into a large diameter, reliable in sealing, simple in structure, easy to maintain, the sealing surface and the spherical surface are often in a closed state, and it is not easy to be eroded by the medium. It is widely used in various industries.

The ball valve and the plug valve belong to the same type of valve. Only its closing part is a ball. The ball rotates around the center line of the valve body to achieve opening and closing.

The ball valve is mainly used to cut off, distribute and change the flow direction of the medium in the pipeline. The ball valve is a new type of valve that is widely used.

The three-piece ball valve only needs a 90-degree rotation and a small torque to close tightly. The completely equal internal cavity of the valve provides a straight flow channel with little resistance for the medium. It is generally believed that the ball valve is most suitable for direct opening and closing. The development of the ball valve has been designed so that it has the purpose of throttling and controlling the flow. The main feature of the ball valve is its compact structure, easy operation and maintenance, suitable for general working media such as water, solvent, acid and natural gas, and also suitable for media with harsh working conditions, such as oxygen, hydrogen peroxide, methane and ethylene. The ball valve body can be integral or combined.

The three-piece ball valve is a relatively new type of ball valve. It has some advantages unique to its structure, such as frictionless switch, non-wearing seal, and small opening and closing torque. This can reduce the size of the actuator. Equipped with a multi-turn electric actuator, it can realize the adjustment and close shut-off of the medium. It is widely used in working conditions that require strict cut-off such as petroleum, chemical industry, and urban water supply and drainage.

141
