0.5inch-2.5inch Stainless Steel Fixed CIP Rotating Water Wash Rotary Cleaner Rotate Cleaning Spray Ball Nozzle Fittings

The cleaning ball series products are mainly used in food processing, beverage, beer and pharmaceutical industries and other tank equipment, to carry out powerful injection and cleaning of the inside of the tank.The spherical shape is elliptical and round, and the fuel injection nozzle is flat groove type.
Availability:
Quantity:
  • 0.5/2.5inch
  • DEGONG
Product Description

Technical specifications:

Cleaning radius: up to 4 m (4bar)

Cleaning angle: 180°; 360°

Sphere options: 1) round ball; 2) elliptical ball

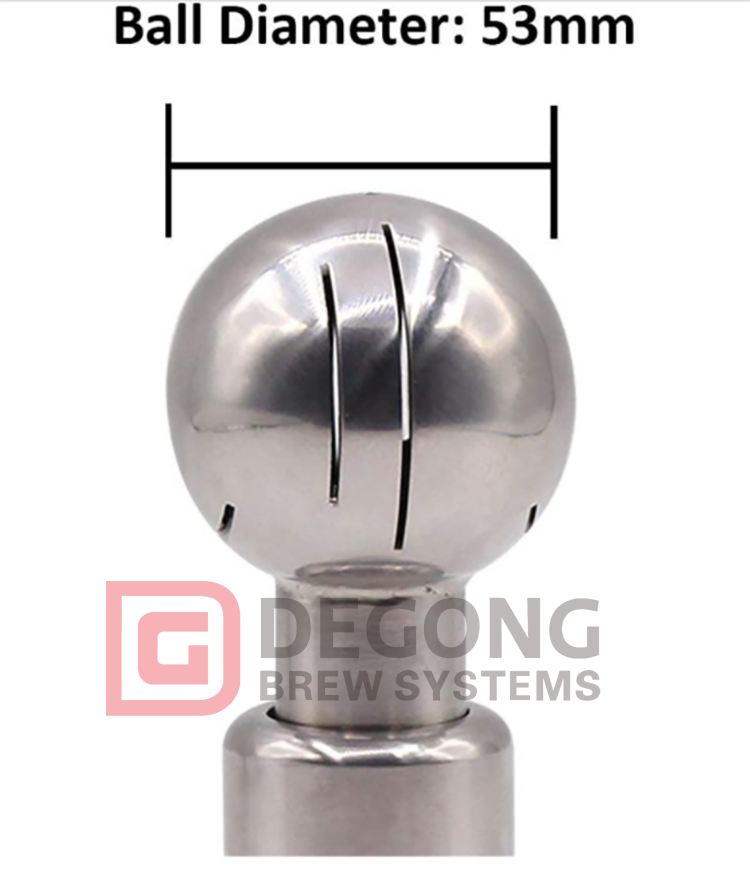

Size: 28mm / 45mm/ 65mm/ 75mm

Material: 316L

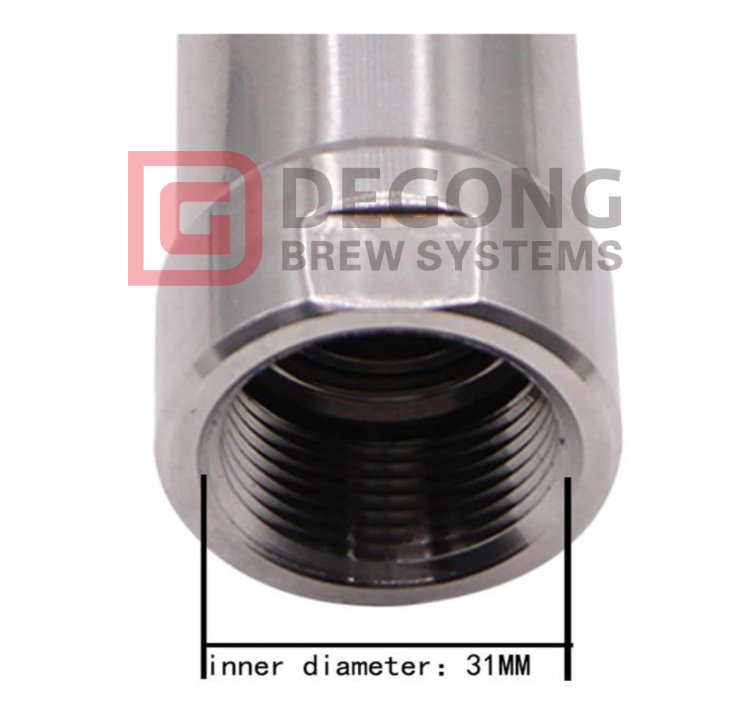

Connection method: internal thread/external thread (1/2"-2"BSP/BSPT), clamp (1"-2"), bolt (1"-2"), welding (1"-2")


136

Design Features:

  • 1. Double bearing design, good rotation effect, better stability and longer life

  • 2. Self-cleaning and self-lubricating design

  • 3. 360 degree self-rotating cleaning nozzle

  • 4. Low liquid consumption, operation under low pressure

  • Driven and lubricated by clean fluid 5.

  • 6. The compact and hygienic design meets the requirements for use in the CIP system

352

Very suitable for cleaning and washing:

  • 1. Stock pot                                   2. Yeast reproduction

  • 3. Batch processing container       4. Fluidized bed dryer

  • 5. Ink and paint mixing bucket     6. Kettle

  • 7. Storage tank                              8. Spray dryer

  • 9. Commercial oven

11129

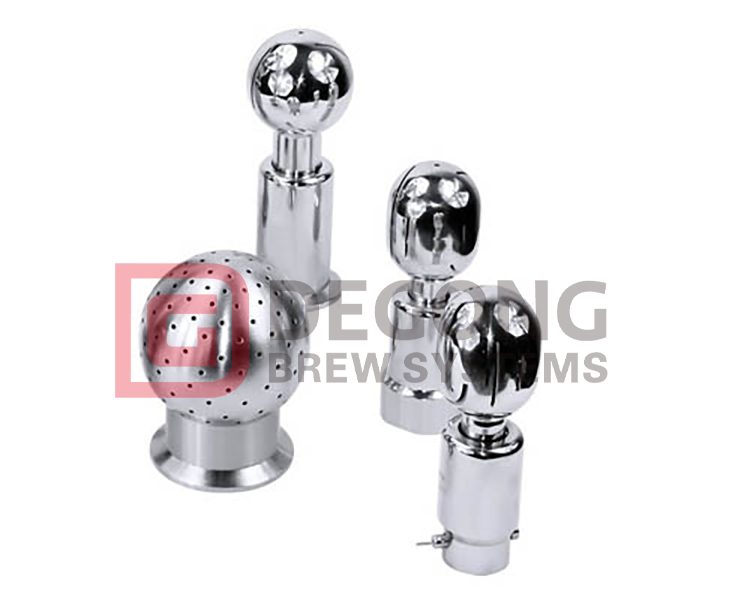

The cleaning ball is divided into three series of products:

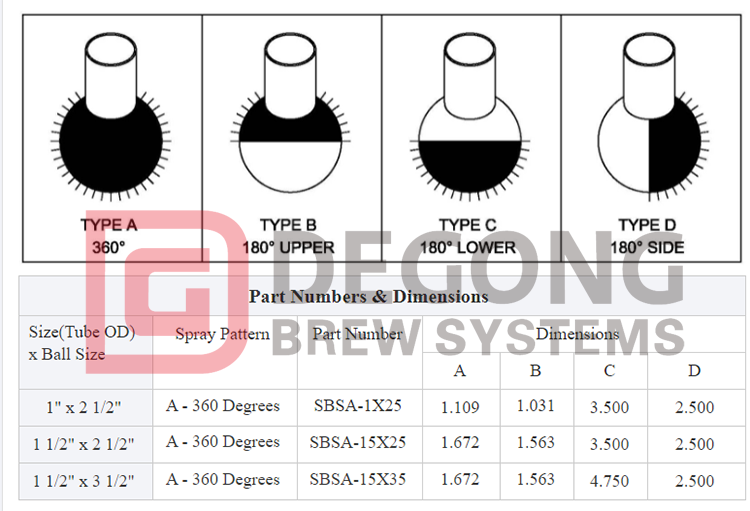

  1. Fixed cleaning ball: 360-degree spray, 180-degree spray, spray aperture 2.5MM

  2. Rotary cleaning ball: the ball is oval and round, and the spray port is flat groove shape

  3. Rotary cleaner: Multi-position jet type, all jet nozzles rotate during operation

8


If you are interested in our products, please contact us! DEGONG is committed to creating the most sophisticated and perfect products. If you want to choose a rotating spray ball, then we are your best choice.
