0.22 Microns A Small Scale Filter Press with Material Stainless Steel Filter

Plate filters also include stainless steel plate filters or stainless steel plate and frame filter presses, which come from CNC filter presses. The plate filters are directly made of stainless steel, 316L is sus304, and can be based on the number of filter plates and filter frames in different layers As well as the filter plate and filter frame size to adjust the plate size and filter area.
Availability:
Quantity:
  • A Small Plate Frame Filters
  • DEGONG
Product Description

A Small Plate Frame Filters


Product Usage

 Stainless steel frame filters have made great achievements in petrochemical, printing and dyeing, electroplating, pharmaceutical and other fields. Many manufacturers and companies in many industries choose to use it to help operations. Like other filters, this stainless steel plate and frame filter is also suitable for industrial production. This is a filter with excellent performance, which can be widely used in pharmaceutical, bioengineering, food, beverage, water treatment, brewing, petrochemical, electronics, electroplating, printing and dyeing, environmental protection and other industries.


Technical data

Item

Layer Number

Filter Area (m2)

Filter Material Size (mm)

Filter Membrane Aperture (um)

Filter Pressure (Mpa)

Water Flow rate (T/h)

Motor Power

(kw)

External Dimension (mm)

100

10

0.078

Φ100

0.45

0.15

0.8

0.55

600*300*600

150

10

0.17

Φ150

0.45

0.15

1.5

0.75

650*380*650

200

10

0.314

Φ200

0.45

0.15

2.0

1.1

650*400*700

300

10

0.7

Φ300

0.45

0.15

4.0

1.1

700*500*800

400

10

1.25

Φ400

0.45

0.15

6.0

1.1

900*600*1000

400

16

2.0

Φ400

0.45

0.15

9.0

1.5

1000*600*1000

400

20

2.5

Φ400

0.45

0.15

10.0

1.5

1000*600*1000

400

32

4.0

Φ400

0.45

0.15

13

2.2

1320*600*1000

500

12

2.0

Φ500

0.45

0.15

8

1.5

1350*720*1200

500

16

3.0

Φ500

0.45

0.15

13

2.2

1350*720*1200

500

22

4.0

Φ500

0.45

0.15

16

2.2

1350*720*1200

500

32

5.0

Φ500

0.45

0.15

20

3.0

1350*720*1200

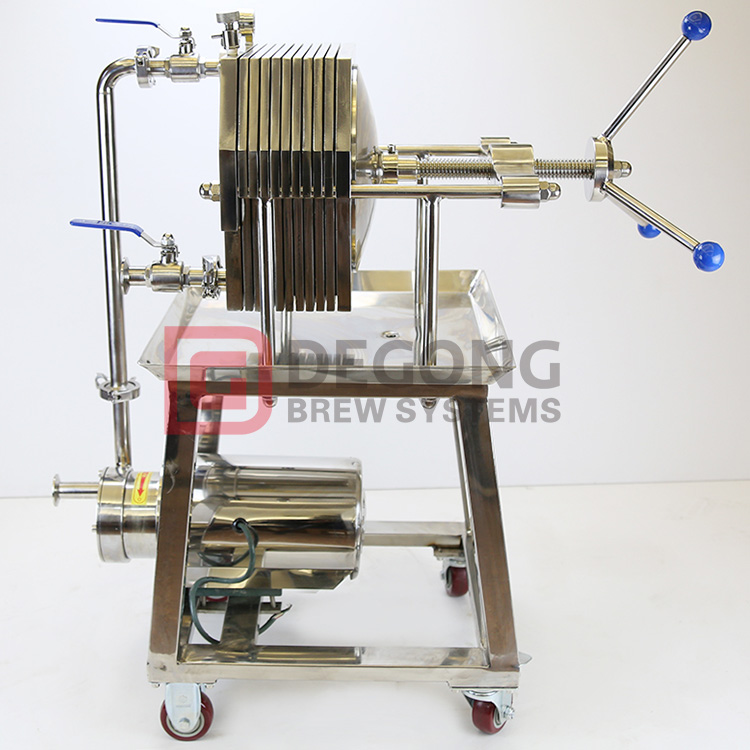

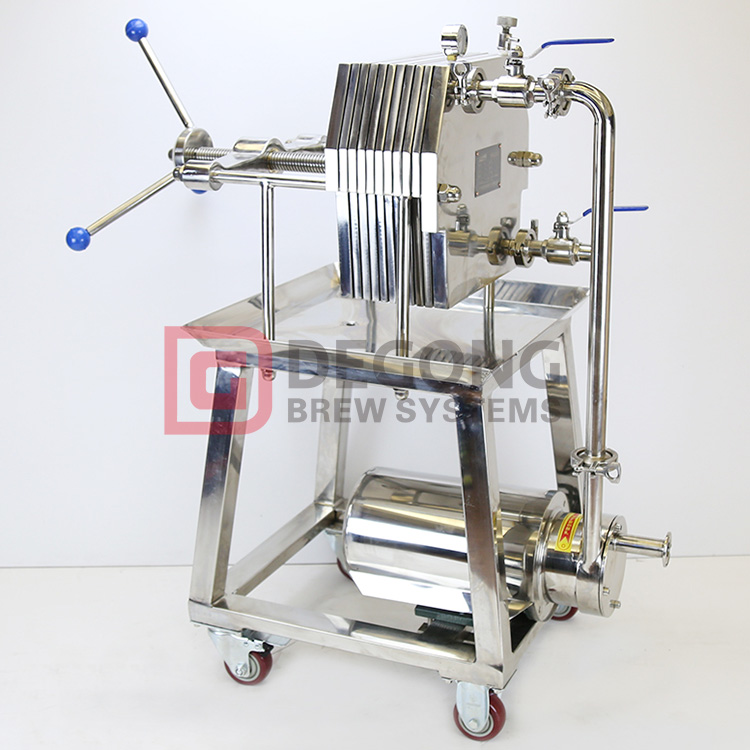

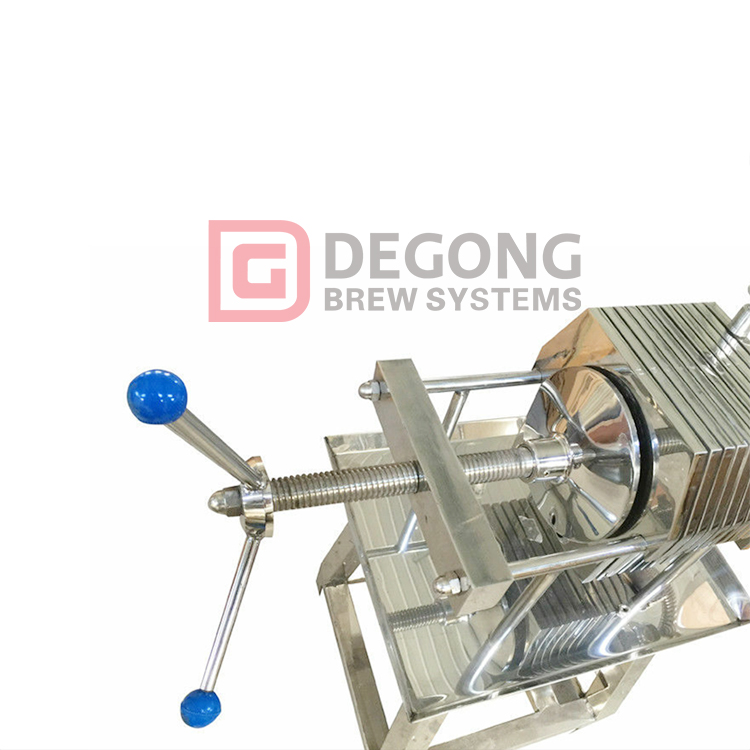

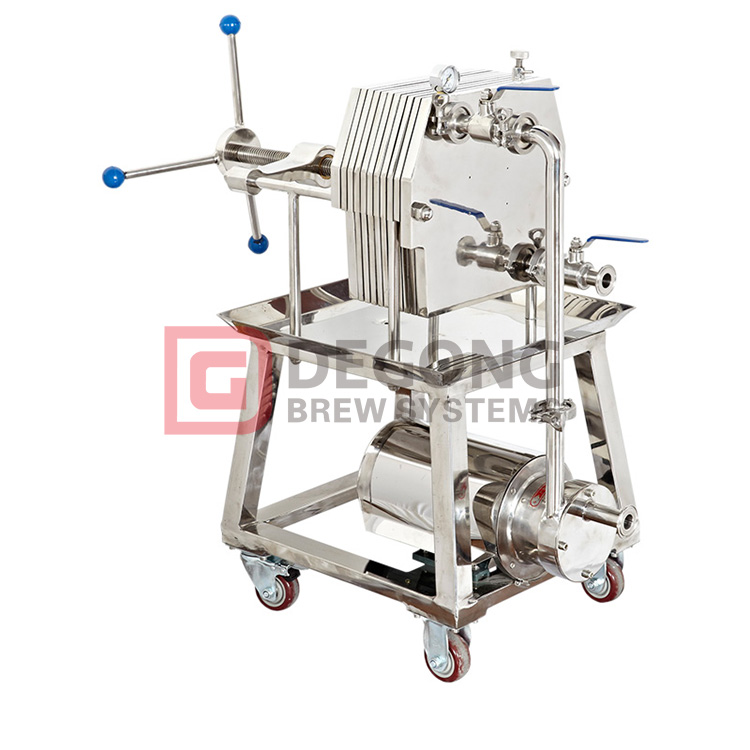

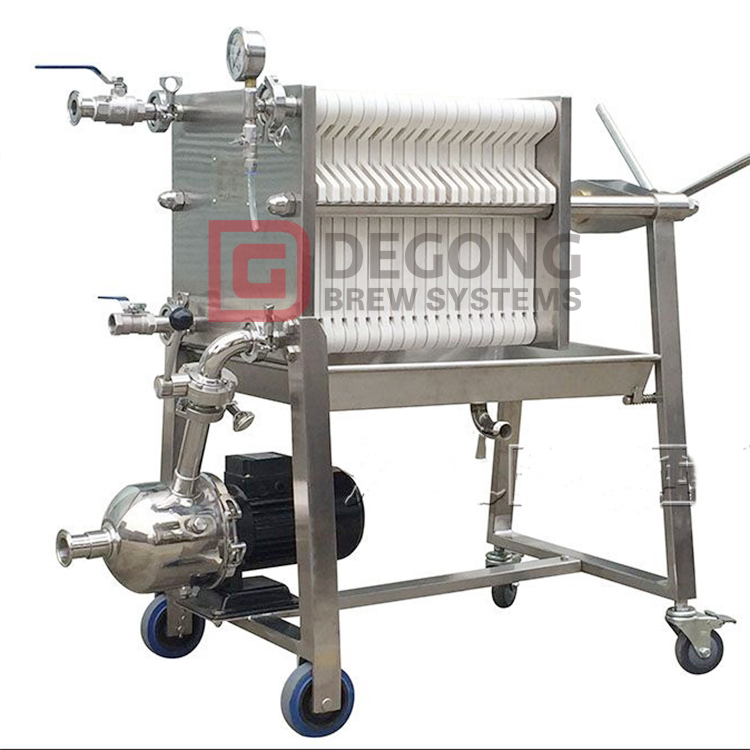

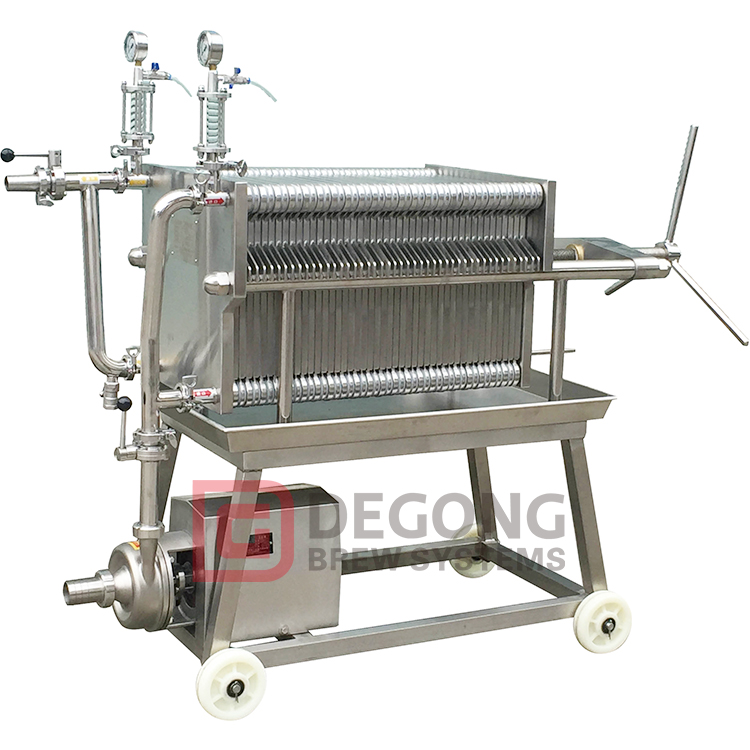

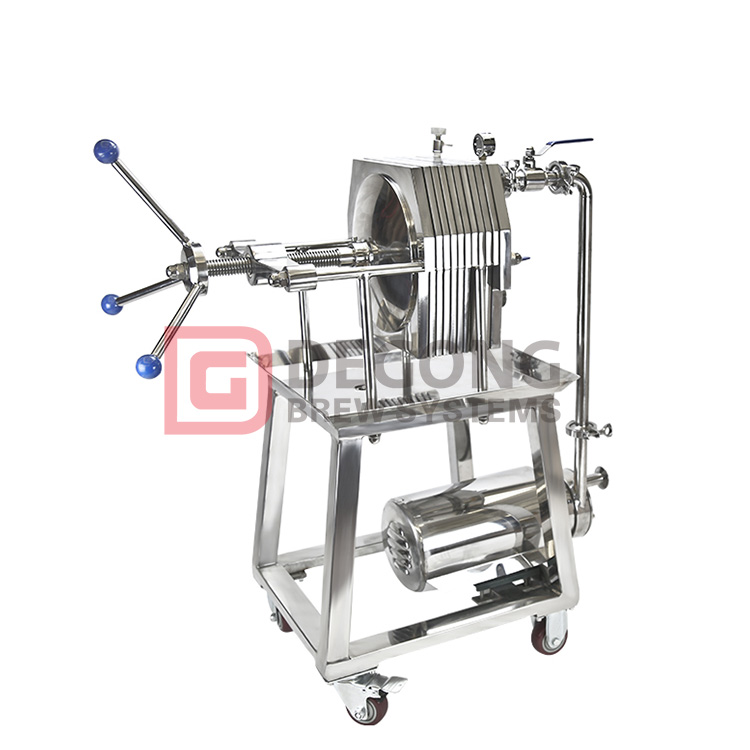

Products Show

324322

313311315316325


Product Description

According to client requirements,the sheet filter plate frame size can be made to be round plate frame or square ones


Sheet filter plate and frame size can be size from 100mm inner side diameter to 600 mm diameter,if need bigger size,then we can made the filter plate and frame separately


All the sheet filter plate and frame will be added good quality,long service time Si O-rings,good sealing ability and less figure size changing


All the sheet filter frame are made from compact design,less room ocupation,by plastic or polyproplythene wheels under the sheet filter frame,the sheet filter can be moved to any working places for work,no fixed working spot requirements and no foundation requirements as the big PP plate and frame filter presses


The feeding pump for the sheet filters are centrifugal PP pump,Pneumatic pump,screw pump,gear pump etc, according to different feeding material requirements


Filtering medias can use filter membranes,which made from PE material, filter cloth(various kind according to different filtering pressure,temprature etc.) filter paper and fiber sheets.various according to different conditions
