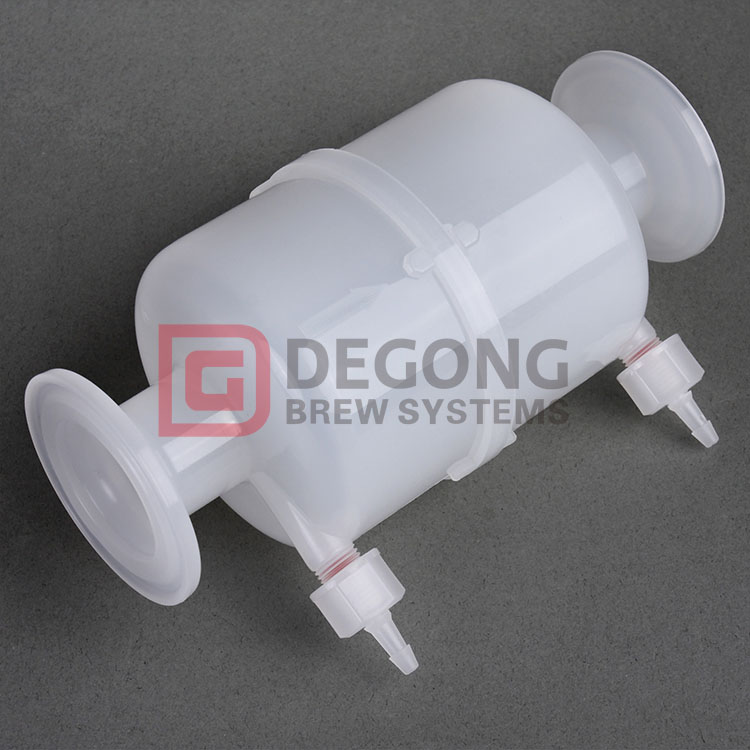

0.1um-1um PVDF 5'' Hydrophilic Capsule Filter for Viscous Liquid Filtration in The Food Industry

Hydrophilic PVDF membrane filter, optimized for sterile filtration, pre-filtration and clarification of pharmaceutical and biological solutions. Proprietary process manufacturing, can provide instant and permanent water wettability, unparalleled fluidity, high mechanical strength, thermal and chemical stability, and ultra-low bonding characteristics.
Availability:
Quantity:
  • PVDF Capsule Filter
  • DEGONG
Product Description

PVDF Capsule Filter


Specification

Product Name
PVDF Capsule Filter
Brand Name
DEGONG
Material
PVDF
Hardware
Polypropylene
Dimension
68mm
Length
5″
Micron Ratings
0.1μm-1μm


Selection Table

Material of Construction
Filter Membrane
PP PES PTFE PVDF N66  GF
Housing
PP
Inner Support
PP
Dimension
Length
1.5″ / 2.5″ / 5″ / 10″ / Other
Diameter
60mm / 68mm / 85mm / other
Micron Ratings
PP
0.1/0.22/0.45/1/3/5/10/20/30/50μm
PES
0.1/0.2/0.45/0.65/1μm
PTFE
0.1/0.2/0.45/1/3/5μm
PVDF
0.1/0.2/0.45/1/3μm
Nylon
0.1/0.2/0.45/0.65/1/3μm
GF
0.1/0.2/0.45/1/3/5/10/15/20μm
Connections(Inlet/Outlet)
1/8″,1/4″,3/8″,1/2″ Swagelok
1/8″,1/4″,3/8″,1/2″ Hose barbs
1/4″,3/8″,1/2″ NPT Male
3/8″ NPT Female
1/8″,1/4″,Male quick coupling (&Bend)
1/8″,1/4″,1/2″ Tri-clamps
Operation Condition
Normal Working Temperature
≤60℃
Max. Working Temperature
85℃, Differential Pressure≤0.10Mpa

Products Show

338336331337332334335
