Pleated 0.1 0.2 Micron PTFE PP Membrane Pleated Filter Cartridge

The microporous pleated filter element is made of polypropylene (Polyacryl) thermal spray fiber membrane, nylon (Nylonb) polytetrafluoroethylene (PTEE) membrane and other precision filtration devices to make filter media. It has the characteristics of small volume, large filtration area and high precision. . The filtering accuracy can be from 0.1M to 60M.
  • PTFE Membrane Filter Cartridge
Product Description

PTFE Membrane Filter Cartridge

Micron Pleated Filter Cartridge Material Size Micron Weight
PP 5” 0.1um 130g
10” 250g
20" 500g
30" 750g
40" 1kg
5” 1-20um 130g
10” 250g
20" 500g
30" 750g
40" 1kg

Filter media: 100% PTFE (polytetrafluoroethylene) membrane

Supporting medium: polypropylene fiber

Inner core: high-strength polypropylene

Outer core: high-strength polypropylene

Termination: high-strength polypropylene

O-ring / gasket: EPDM / Buna N / Silicone / Viton

PTFE filter element for electronics industry applications

  • Semiconductor

  • CD-R DVD-R factory

  • Fine filtration of deionized water

  • Optoelectronic Chemical Filter

PTFE filter elements for applications in the pharmaceutical industry

  • Sterilization of intake and exhaust flow

  • Exhaust filter

  • Gas purification (such as nitrogen, etc.)

  • Compressed air (sterile grade)

  • Acid/solvent alkali filtration

  • Wet etching process


  • PTFE membrane has excellent chemical resistance

  • The end caps and connectors are sealed by thermal bonding and do not contain adhesives.

  • Since the filtration area per 10 inches of the filter element is 0.7 square meters, the low pressure drop and high flow rate

  • Inherently hydrophobic expanded PTFE microporous membrane has a wide range of chemical compatibility, which can prevent moisture blockage in moisture filtration

  • Absolute ratings precisely controlled pore size distribution for excellent constant bacterial retention

  • Autoclave or in-situ steam sterilization function

  • Integrity test possible

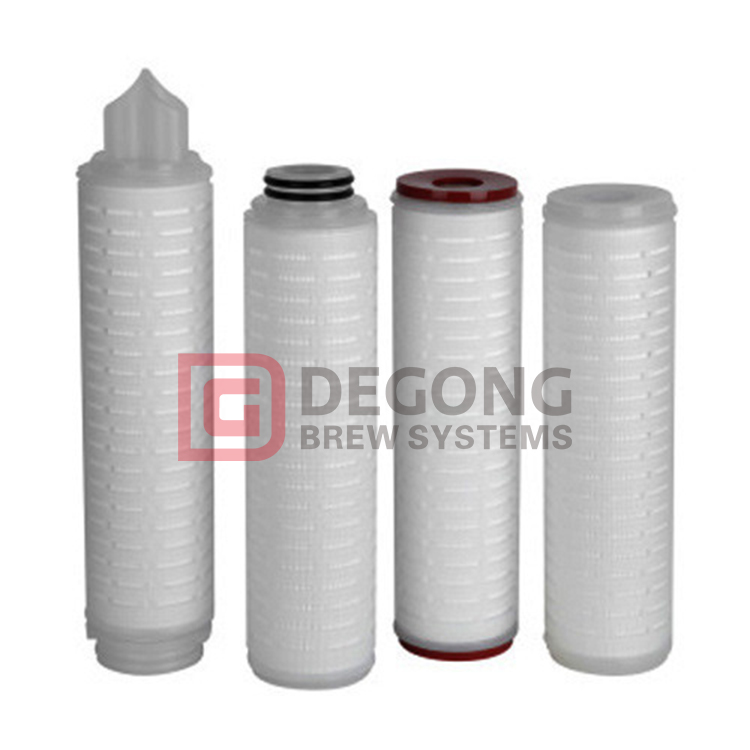

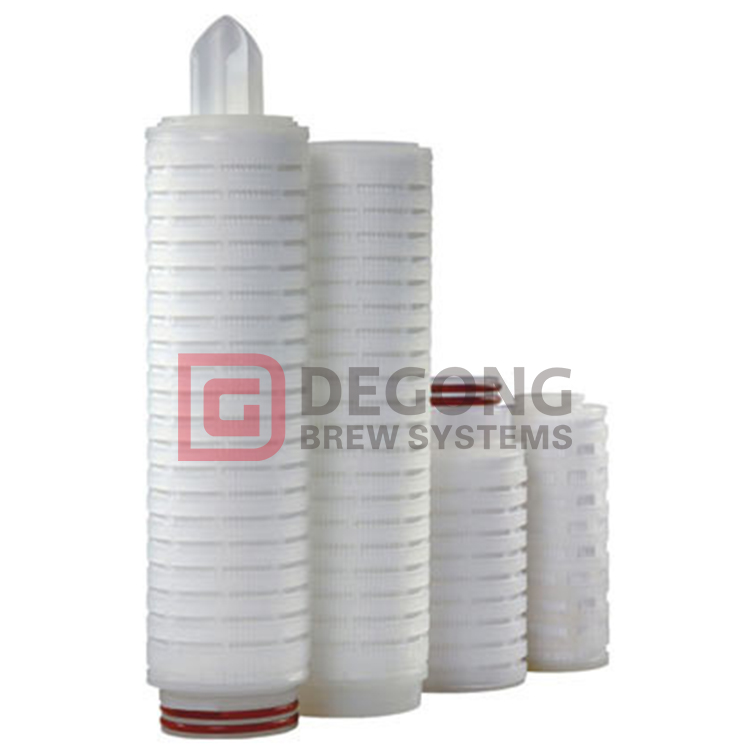

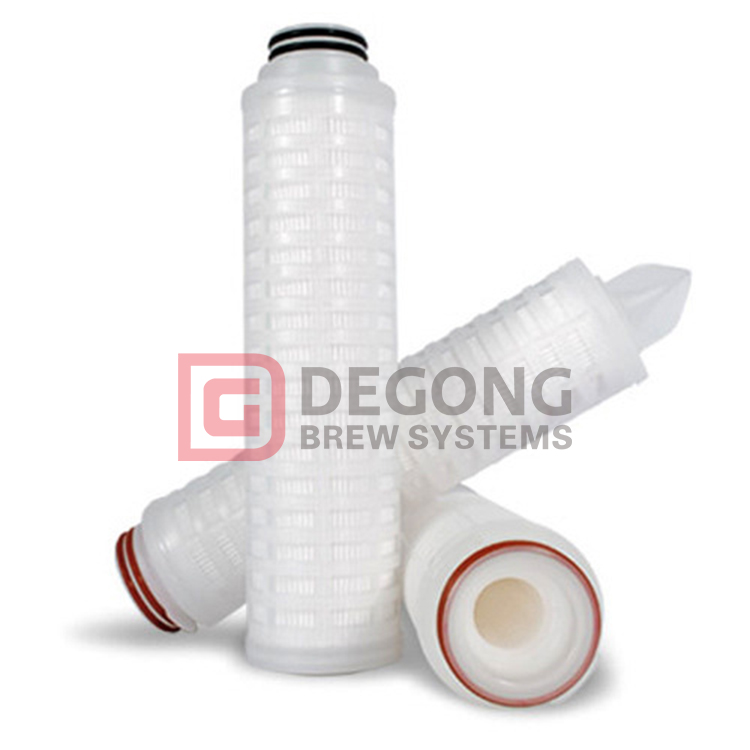

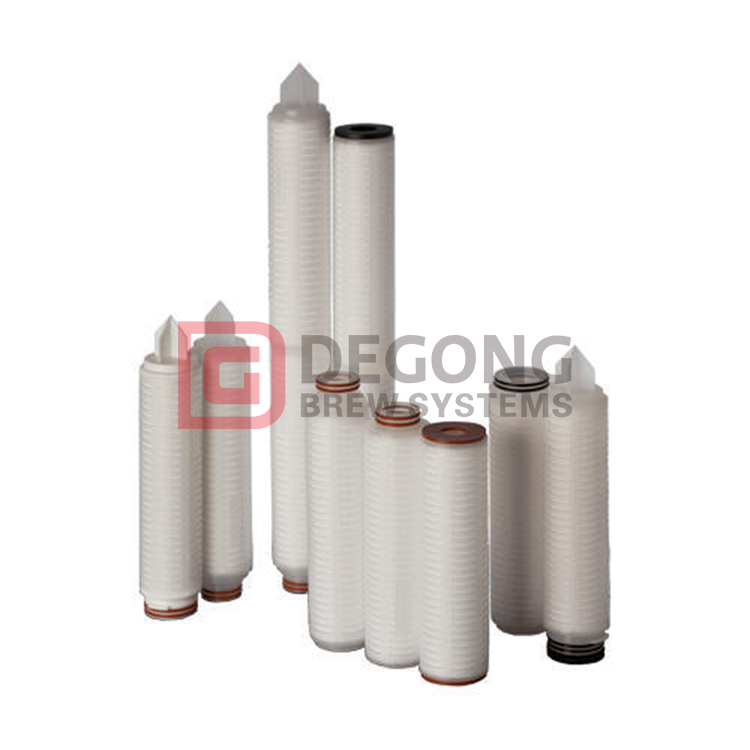

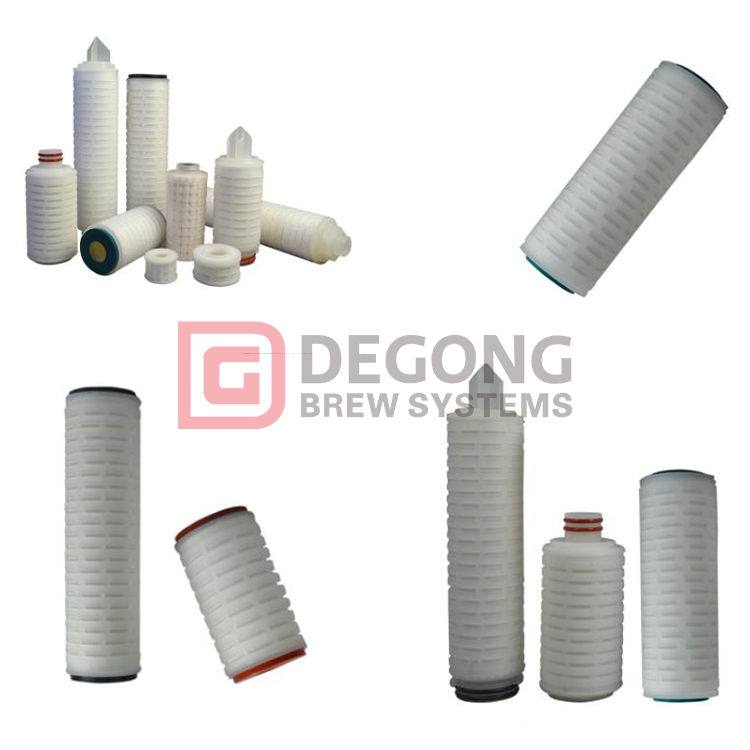

Products Show


If you want to know more detailed information about our equipment, please contact us.
