DGET-500L
DEGT
8438400000
DEGONG is a beer brewing equipment manufacturer integrating design, production, installation and commissioning.After we receive the customer's inquiry, we will first confirm with the customer whether he has detailed requirements. If not, we will recommend several suitable schemes based on customer's output demand.After confirming the specific configuration, we will design the dimension of tank according to the size of brewery building (length, width and height) and begin to design the layout.After customer receive the brewing equipment, we will arrange the engineer to install the brewing system. If the customer has no experience in brewing, we can also teach the customer how to brew beer.

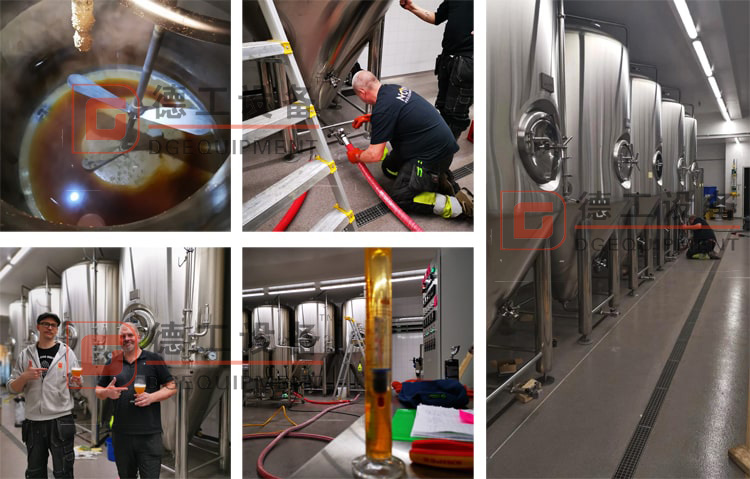

DEGONG Engineer instruct customers to install equipment and brew beer on site
| Beer brewing equipment introduction |
We will design the final technology solution for your brewery with you depending on the planned capacity, distribution, the planned portfolio of beers and technical possibilities of the chosen area.
Basic brewing system | |
Malt miller | double-cylinder - regulated, with protective elements and a removable cover. Manufactured from noble steel, supplied with appropriate support elements. |

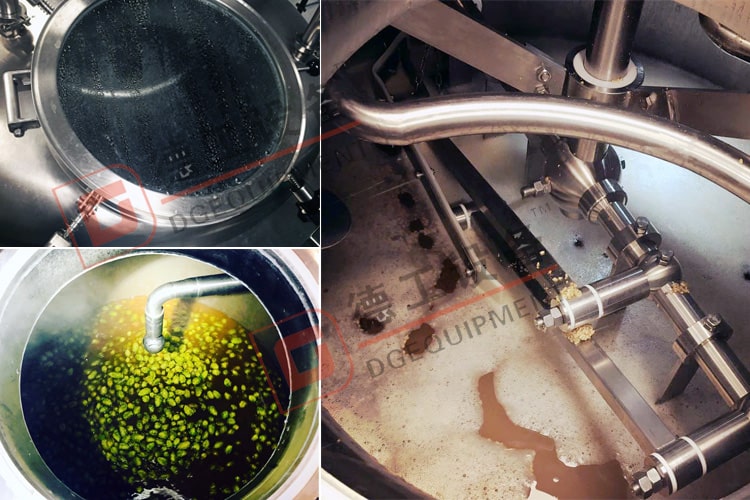

2-Vessel Brewhouse | One vessel is used as an extraction and mashing tank, hopped wort boiling and Whirlpool. The other as a LAUTER TUN. Heating by steam generator - gas or electrical, semi-automatic/Automatic PID control or PLC control with touch panel, including an aeration candle, a flat cooler, pumps, and accessories. |
Hot water tank | an insulated stainless steel tank with a heater and a pump. The receptacle is intended as a reservoir for Hot water. Hot water is provided by steam heating or cooling the wort during recuperation.If you only saccharify one batch a day, we recommend a hot water tank the same size as the mash tun, and if you saccharify many batches a day, we recommend a hot water tank twice as large as mash tank |
| fermentation tank with a cooling double wall, with a sampling cock, inlet and outlet valves, cleaning ball, temperature sensor; pressure gauge 0-4 bar, safety valve, solenoid valve for cooling control, manhole and adjustable socles. Certified pressure vessel. |
Bright beer tank
| (bottling, service) tank - for ready beer tapping and bottling with a cooling double wall, includes: sampling cock, inlet and outlet valves, cleaning ball, temperature sensor; pressure gauge 0-4 bar, safety valve, solenoid valve for cooling control, manhole and adjustable socles. , carbon dioxine saturation. Certified pressure vessel. |
Cooling | a glycol water tank with a chiller and a pump |
CIP station | a device for the sanitation of the tanks and pipeline or hose routes based on the principle of sanitation solution circulation. |
Optional system | |
Steam generator | steam generator (electric or gas), including a fully automated water treatment plant and an inbuilt stainless condensation tank for condensate return. |
Filtration station | an optional unit for filtered beer production with high microbial purity. We propose a diatomaceous earth filter or cross-flow filter. |
KEG barrel washer and filler | a semi-automatic washer and filler of KEG barrels. Everything is performed fully automatically without the need for any human intervention. The operator merely places and then removes the barrel. |
Bottling line | a semi-automatic pressurised beer bottling device for glass or PET bottles. The device runs automatically with just manual placement and removal of the bottle. |
| Specifications |
SUS 304/SUS316/Copper clad,Inner Thickness=0.3mm,Outer thickness=0.2mm
Optional heating style of steam, electric and direct fire for brewhouse tanks
PLC control panel with Siemens,Omron,Schenider element,and accord with EU standard
VFD controlled reducer and wort pump
Rake and mash agitator assembly with top/bottom reducer
False bottom for lauter tank with 0.7gap
Grist hydrator with strike water mixing station
Plate heat exchanger for cooling wort
Grant /hop guns for filter or storage first wort
Top glass manhole for checking mashing condition
Sight glass to check if the wort is clean
Weather you want to brew craft beer or brew commercial beer,weather you want to start a new beer brewery project or expand your brewing scale.No matter what you want to brew lager or ale,stout beer or light beer,barley beer or wheat beer,fruit beer or corn beer,low concentration beer or high concentration beer.......DEGONG brewing equipment always can meet your requirement.
If you have interest,welcome to contact me freely
