2500L Commercial Brewing System Automatic Beer Equipment Turnkey Brewery Plant

The 2500l commercial brewing system is one of our hot sale capacity for starting a new beer brewery. Generally a turnkey microbrewery equipment included at least the Malt miller, Brewhouse unit, Fermenters, Glycol cooling system, Controlling system and CIP cart. The optional devices included the Beer filter, Brite tanks, Bottling machine, kegging machine, keg washing machine etc.
For starting a new beer brewery with a certain annual beer production, and also have future expanding plan in next 1~3 years, then the 2500l capacity may be a choice. If you have plan to brew 2~4 batches per day or plan to do decoction mashing, we suggest the 4 vessel brewhouse structure.
Availability:
Quantity:
  • DG-2500L

  • DEGONG

Product Description

2500L Commercial Brewing System


The 2500l commercial brewing system is one of our hot sale capacity for starting a new beer brewery. Generally a turnkey microbrewery equipment included at least the Malt miller, Brewhouse unit, Fermenters, Glycol cooling system, Controlling system and CIP cart. The optional devices included the Beer filter, Brite tanks, Bottling machine, kegging machine, keg washing machine etc.


For starting a new beer brewery with a certain annual beer production, and also have future expanding plan in next 1~3 years, then the 2500l capacity may be a choice. If you have plan to brew 2~4 batches per day or plan to do decoction mashing, we suggest the 4 vessel brewhouse structure.


Equipment

Components

Q'ty

Malt miller

500~800kg/hr

1set

Brewhouse unit

2500L Mash tun

1set

2500L Lauter tun

1set

2500L Boil kettle

1set

2500L Whirlpool tun

1set

5000L Hot liquor tank

1set

Work Plateform

1set

Pump

2sets

Wort balance column

1set

20M2 Heat Exchanger

1set

Inline Pipe Filter

1set

Wort Aeration Station

1set

Fermenting System

2500L Fermentation Tank

8sets

Carbonation port and stone

Optional

Bunging valves

Optional

Cooling System

Glycol water tank 5000L

1set

Glycol chiller 7HP

2sets

Glycol water pump

1set

Pipeline

1set

Control System

Brewhouse Control Cabinet

1set

Fermentation Control Cabinet

1set

CIP System

300L Caustic tank

1set

300L Sterilization Tank

1set

Pump and Valve

1set


1000999997

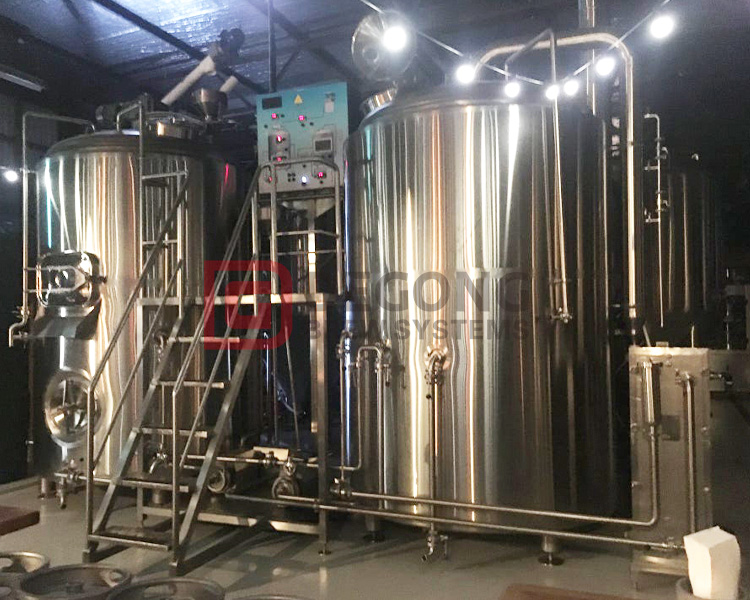

DEGONG 2500L brewhouse unit


2500L Fermenter

Our 2500L Fermentation Tank is made of high-quality stainless steel material of international standard. Polyurethane foam is used for high voltage insulation. The shell can be polished, matte, carbon steel, sprayed and other forms according to customer requirements.


Model
DG-2500L
Capacity
Useful capacity:2500L; Gross capacity:3125L
Material
SUS304
Application
Restaurant, bar, hotel, brewery
Cooling method
Jacket section cooling
Thickness
Inner:3.0mm; External:2.0mm
Outrigger
SUS304*4
Test pressure
0.3Mpa
Working pressure
0.2Mpa
Heat exchange area
5.1m2
Weight
660kg


996998

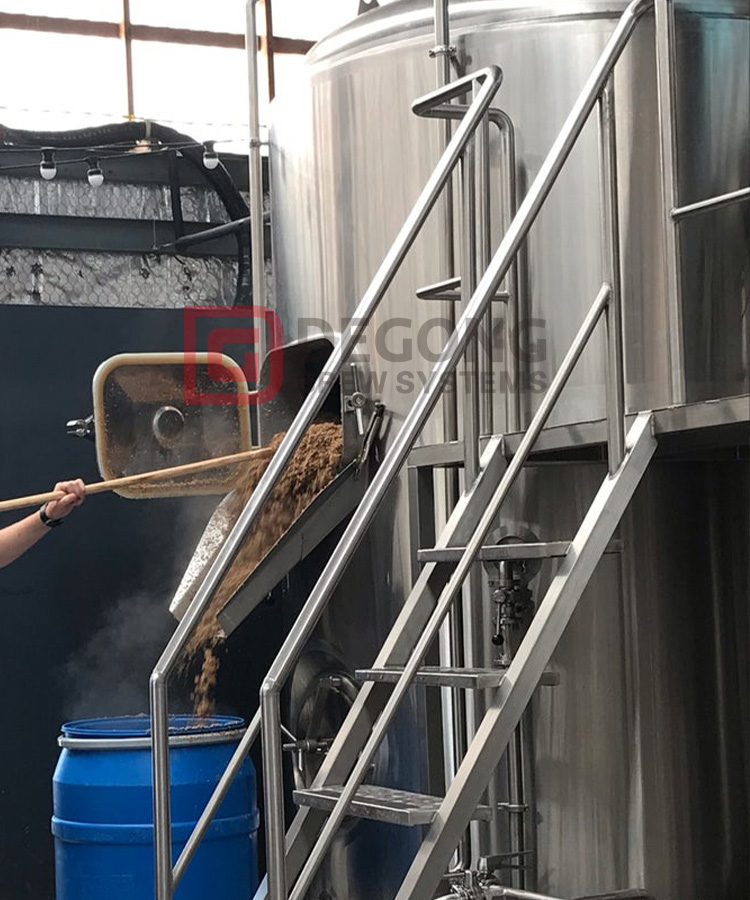

DEGONG 2500L fermenters


Contact us

The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
