DG-10BBL
DEGONG
10BBL Craft Beer Brewing Equipment
| Specifications |
Output/Brew | 10 BBL |
Brew/Week | 2~6 |
Output/Week | 20~60 BBL |
Electric Supply | 3phase/380(220, 415,440…)v/50 (60)Hz |
Heating Source | Electric/Steam |
Area Request | >45M2 |
Brewmaster | 1 |

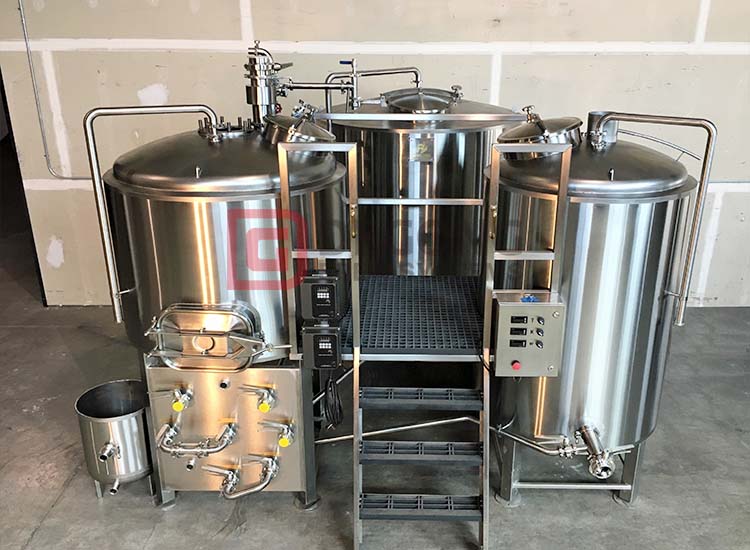

DEGONG 300L brewery equipment
| Configuration |
| Malt Milling Unit | Particle adjustable rolling crusher Flexible or steel auger to directly lift the milled grain to mash tun |
| 10 bbl Brewhouse Unit | Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination Hot water tank and cold water tank for optional in special combinations Infusion or decoction brewing methods are designed exactly Stainless steel are popular because of easy maintenance and clean, copper cladding for optional Two stages or single stage heat exchanger for wort cooling Completely stainless steel integrated work platform Sanitary and efficiency wort pump All pipings and fittings |
| 10 bbl or 20 bbl Fermentation Unit | Standard stainless steel conical cylindrical fermentation tanks Single size or double size as brewhouse is common used in microbreweries Tanks quantity is exactly calculated by fermentation cycle for various beers All manhole, valves, pressure gauges, fittings etc are included |
| Beer Filter Unit | Craft beer is no need filtration which will keg filling for quickly consumption Plate-Frame or Candle type DE (diatomite earth) filter is used for clarify the beer |
| 10 bbl or 20 bbl Bright Beer Tank Unit | Standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation Single size or double size as fermenter is common used in restaurant or bar Tanks quantity is exactly calculated for various beers and the function All manhole, valves, stone, gauges, fittings etc are included |
| Cooling Unit | Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing Efficiency chillers or refrigerators with fryon to supply cooling energy Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger All pipes, fitting, insulation materials are included |
| Controlling Unit | Electrical controlling cabinet with temperature, on-off controlling for brewhouse Electrical controlling cabinet with temperature, on-off controlling for cooling parts Temperature controller, thermocouple, solenoid valves etc are included PLC with touch screen panel for special request |
| Beer Dispense | Keg filling and rinsing machine Semiauto bottling machine with rinsing, filling, capping, labeling etc Flash pasteurizer or tunnel pasteurizer is available |
| Other Facilities | Portable or fixed CIP system for cleaning the tanks Steam boiler for brewhouse heating Water treatment for brew water Oil free air compressor Brewery lab instruments for beer quality test |
DEGONG 5BBL fermentation tanks
| Contact us |
The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
